Magnitude |
:3.5 |
| Date & Time (UTC) | 2023-06-01 22:42:44.8 |
| Date & Time (Local) | 1402/3/12 02:12:44.8 |
| Location | Lat:37.845 Lon: 42.636 |
| Region | Turkey |
Nearest Cities |
|
| 161 km South West of Delzi, Azarbaijan Gharbi Province | |
| 165 km South West of Kuzeh rash, Azarbaijan Gharbi Province | |
| 171 km South West of Gatur, Azarbaijan Gharbi Province | |
| 173 km South West of Chahriq, Azarbaijan Gharbi Province | |
| 174 km South West of Tazehshahr, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |

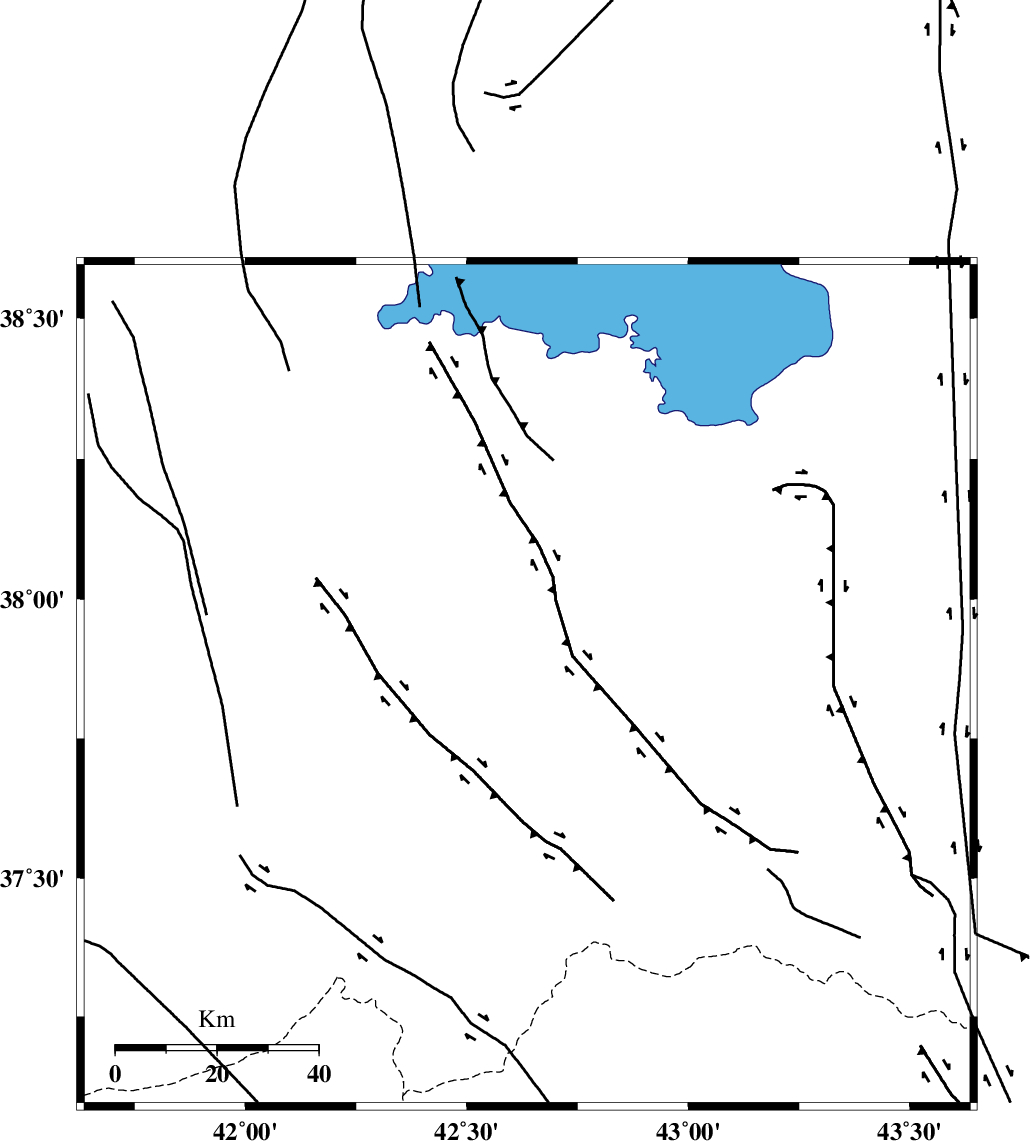

Faults within 150 km: |
|
| Number of Phases | 20 |
| RMS | 0.7 |
| Number of Stations | 20 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 182783 | IIEES SC | GURO | Z | 2 | 1 | 2023-06-01 22:43:02 | 2023-06-06 07:02:00 | n |
| 182784 | IIEES SC | GURO | Z | 2 | 1 | 2023-06-01 22:43:13 | 2023-06-06 07:02:00 | n |
| 182785 | IIEES SC | MAHB | Z | 0.5 | 1 | 2023-06-01 22:43:30 | 2023-06-06 07:02:00 | n |
| 182786 | IIEES SC | SRSL | Z | 0.3 | 1 | 2023-06-01 22:43:31 | 2023-06-06 07:02:00 | n |
| 182787 | IIEES SC | GNI | Z | 0.2 | 1 | 2023-06-01 22:43:31 | 2023-06-06 07:02:00 | n |
| 182788 | IIEES SC | ARPR | Z | 0.1 | 1 | 2023-06-01 22:43:41 | 2023-06-06 07:02:00 | n |
| 182789 | IIEES SC | GRMI | Z | 0.03 | 1 | 2023-06-01 22:43:51 | 2023-06-06 07:02:00 | n |
| 182790 | IIEES SC | DHR | Z | 0.1 | 1 | 2023-06-01 22:43:53 | 2023-06-06 07:02:00 | n |
| 182791 | IIEES SC | ZNJK | Z | 0.03 | 1 | 2023-06-01 22:44:01 | 2023-06-06 07:02:00 | n |
| 182792 | IIEES SC | KCHF | Z | 0.08 | 1 | 2023-06-01 22:44:02 | 2023-06-06 07:02:00 | n |
| 182793 | IIEES SC | ILBA | Z | 0.03 | 1 | 2023-06-01 22:44:04 | 2023-06-06 07:02:00 | n |
| 182794 | IIEES SC | HGHA | Z | 0.02 | 1 | 2023-06-01 22:44:10 | 2023-06-06 07:02:00 | n |
| 182795 | IIEES SC | ASAO | Z | 0.01 | 1 | 2023-06-01 22:44:27 | 2023-06-06 07:02:00 | n |
| 182796 | IIEES SC | KHMZ | Z | 0.01 | 1 | 2023-06-01 22:44:32 | 2023-06-06 07:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GURO | Z | EPg | E | 2023-06-01 22:43:02 | 1.1 | y | 0 | 94 | 326 | ||
| IIEES SC | GURO | Z | ESg | E | 2023-06-01 22:43:13 | 0.7 | y | 0 | 94 | 326 | ||
| IIEES SC | MAKU | Z | EPn | E | 2023-06-01 22:43:22 | -0.6 | y | 0 | 245 | 47 | ||
| IIEES SC | MRD | Z | EPn | E | 2023-06-01 22:43:28 | 0.6 | y | 0 | 285 | 70 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-06-01 22:43:30 | 0.8 | y | 0 | 296 | 94 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-06-01 22:43:30 | 0.9 | y | 0 | 297 | 114 | ||
| IIEES SC | MAHB | Z | ES | E | 2023-06-01 22:44:04 | 1.4 | n | 4 | 297 | 114 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-06-01 22:43:31 | -0.1 | y | 0 | 308 | 126 | ||
| IIEES SC | GNI | Z | EPn | E | 2023-06-01 22:43:31 | -0.7 | y | 0 | 314 | 35 | ||
| IIEES SC | ARPR | Z | EPn | E | 2023-06-01 22:43:41 | -0.8 | y | 0 | 400 | 290 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-06-01 22:43:51 | 0.3 | y | 0 | 472 | 77 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-06-01 22:43:53 | 0 | y | 0 | 485 | 136 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-06-01 22:44:01 | -0.5 | y | 0 | 552 | 104 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-06-01 22:44:02 | -0.3 | y | 0 | 561 | 135 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-06-01 22:44:04 | 0.7 | y | 0 | 569 | 145 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-06-01 22:44:10 | 0.8 | y | 0 | 615 | 115 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-06-01 22:44:15 | 0.4 | y | 0 | 664 | 111 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-06-01 22:44:27 | 0.6 | y | 0 | 759 | 119 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2023-06-01 22:44:32 | -0.2 | y | 0 | 804 | 125 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-06-01 22:44:37 | 0.2 | y | 0 | 839 | 135 | ||
