Magnitude |
:3.1 |
| Date & Time (UTC) | 2023-05-17 18:53:42.7 |
| Date & Time (Local) | 1402/2/27 22:23:42.7 |
| Location | Lat:38.669 Lon: 44.685 |
| Region | Azarbaijan Gharbi Province, 26 km North-West of Khoy |
Nearest Cities |
|
| 17 km North West of Beyk sofla, Azarbaijan Gharbi Province | |
| 18 km North East of Baleh sur-e sofla, Azarbaijan Gharbi Province | |
| 20 km South East of Zarabad, Azarbaijan Gharbi Province | |
| 24 km North West of Dizaj, Azarbaijan Gharbi Province | |
| 26 km North West of Khoy, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |

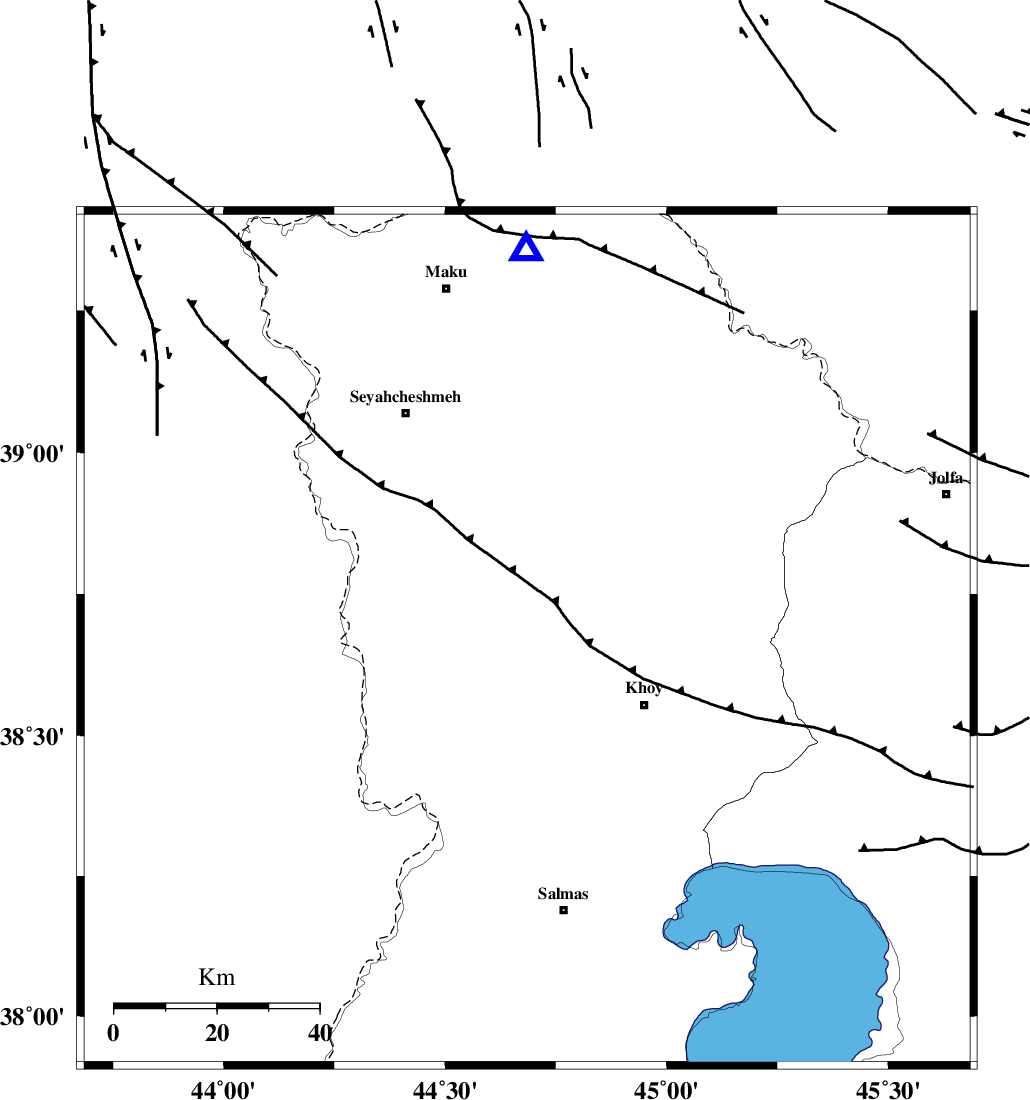

Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 10 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 44 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 50 km | |
| Number of Phases | 14 |
| RMS | 0.7 |
| Number of Stations | 14 |
| Error in Latitude | >3 km |
| Error in Longitude | 3 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 182303 | IIEES SC | MRD | Z | 4 | 1 | 2023-05-17 18:53:58 | 2023-05-20 06:15:00 | n |
| 182304 | IIEES SC | MRD | Z | 4 | 1 | 2023-05-17 18:54:08 | 2023-05-20 06:15:00 | n |
| 182305 | IIEES SC | GRMI | Z | 0.1 | 1 | 2023-05-17 18:54:26 | 2023-05-20 06:15:00 | n |
| 182306 | IIEES SC | GRMI | Z | 0.1 | 1 | 2023-05-17 18:54:56 | 2023-05-20 06:15:00 | n |
| 182307 | IIEES SC | SRSL | Z | 0.1 | 1 | 2023-05-17 18:54:27 | 2023-05-20 06:15:00 | n |
| 182308 | IIEES SC | ZNJK | Z | 0.02 | 1 | 2023-05-17 18:54:42 | 2023-05-20 06:15:00 | n |
| 182309 | IIEES SC | QABG | Z | 0.004 | 1 | 2023-05-17 18:54:58 | 2023-05-20 06:15:00 | n |
| 182310 | IIEES SC | ARPR | Z | 0.05 | 1 | 2023-05-17 18:54:58 | 2023-05-20 06:15:00 | n |
| 182311 | IIEES SC | ILBA | Z | 0.01 | 1 | 2023-05-17 18:55:02 | 2023-05-20 06:15:00 | n |
| 182312 | IIEES SC | CHTH | Z | 0.02 | 1 | 2023-05-17 18:55:11 | 2023-05-20 06:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MAKU | Z | EPg | E | 2023-05-17 18:53:55 | -0.4 | y | 0 | 76 | 360 | ||
| IIEES SC | MRD | Z | EPg | E | 2023-05-17 18:53:58 | 0.7 | y | 0 | 89 | 87 | ||
| IIEES SC | MRD | Z | ESg | E | 2023-05-17 18:54:08 | -1 | y | 0 | 89 | 87 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-05-17 18:54:08 | -0.8 | y | 0 | 158 | 134 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-05-17 18:54:18 | 9.2 | n | 4 | 164 | 2 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-05-17 18:54:26 | 0.6 | y | 0 | 279 | 87 | ||
| IIEES SC | GRMI | Z | ES | E | 2023-05-17 18:54:56 | 0.3 | y | 0 | 279 | 87 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-05-17 18:54:27 | 1.7 | y | 0 | 281 | 166 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-05-17 18:54:42 | -0.1 | y | 0 | 417 | 122 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-05-17 18:54:57 | 9.2 | n | 4 | 462 | 149 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-05-17 18:54:58 | 0.1 | y | 0 | 545 | 127 | ||
| IIEES SC | ARPR | Z | EPn | E | 2023-05-17 18:54:58 | -1 | y | 0 | 553 | 275 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-05-17 18:55:02 | -0.2 | y | 0 | 576 | 166 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-05-17 18:55:11 | 0.4 | y | 0 | 648 | 118 | ||
