Magnitude |
:3 |
| Date & Time (UTC) | 2023-05-16 15:25:44.0 |
| Date & Time (Local) | 1402/2/26 18:55:44.0 |

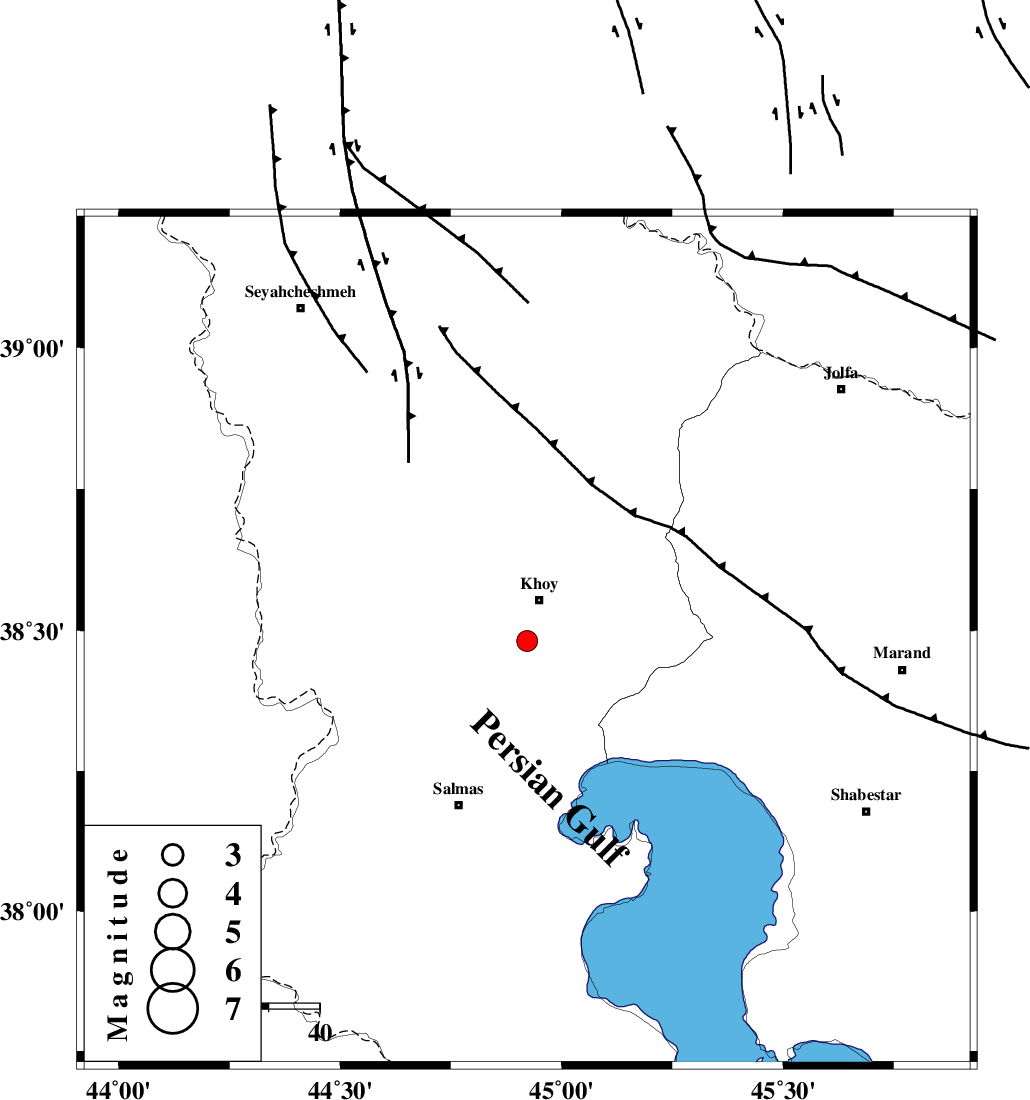

| Location | Lat:38.481 Lon: 44.922 |
| Region | Azarbaijan Gharbi Province, 8 km of Khoy |
Nearest Cities |
|
| 4 km North of Quruq, Azarbaijan Gharbi Province | |
| 8 km of Khoy, Azarbaijan Gharbi Province | |
| 10 km North West of Dizaj diz, Azarbaijan Gharbi Province | |
| 13 km West of Saeedabad, Azarbaijan Gharbi Province | |
| 13 km East of Beyk sofla, Azarbaijan Gharbi Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 10 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 20 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 35 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 182238 | IIEES SC | MRD | Z | 5 | 1 | 2023-05-16 15:25:57 | 2023-05-17 05:54:00 | n |
| 182239 | IIEES SC | GNI | Z | 0.7 | 1 | 2023-05-16 15:26:14 | 2023-05-17 05:54:00 | n |
| 182240 | IIEES SC | MAHB | Z | 0.2 | 1 | 2023-05-16 15:26:16 | 2023-05-17 05:54:00 | n |
| 182241 | IIEES SC | SRSL | Z | 0.2 | 1 | 2023-05-16 15:26:24 | 2023-05-17 05:54:00 | n |
| 182242 | IIEES SC | GRMI | Z | 0.1 | 1 | 2023-05-16 15:26:24 | 2023-05-17 05:54:00 | n |
| 182243 | IIEES SC | SNGE | Z | 0.03 | 1 | 2023-05-16 15:26:47 | 2023-05-17 05:54:00 | n |
| 182244 | IIEES SC | DHR | Z | 0.04 | 1 | 2023-05-16 15:26:46 | 2023-05-17 05:54:00 | n |
| 182245 | IIEES SC | GIDE | Z | 0.008 | 1 | 2023-05-16 15:26:50 | 2023-05-17 05:54:00 | n |
| 182246 | IIEES SC | ILBA | Z | 0.01 | 1 | 2023-05-16 15:27:00 | 2023-05-17 05:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-05-16 15:25:57 | 0.3 | y | 0 | 73 | 69 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-05-16 15:26:01 | -0.2 | y | 0 | 99 | 348 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-05-16 15:26:04 | -1 | y | 0 | 129 | 134 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-05-16 15:26:14 | 0.1 | y | 0 | 186 | 355 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-05-16 15:26:16 | -0.8 | y | 0 | 202 | 160 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-05-16 15:26:24 | 0.2 | y | 0 | 256 | 170 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-05-16 15:26:24 | -0.5 | y | 0 | 261 | 82 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-05-16 15:26:47 | 0.8 | y | 0 | 434 | 150 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-05-16 15:26:46 | -0.4 | y | 0 | 440 | 163 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-05-16 15:26:50 | 0.6 | y | 0 | 466 | 112 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-05-16 15:26:55 | -0.8 | y | 0 | 516 | 127 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-05-16 15:27:00 | -0.5 | y | 0 | 551 | 168 | ||
