Magnitude |
:3.7 |
| Date & Time (UTC) | 2023-04-17 04:07:18.9 |
| Date & Time (Local) | 1402/1/28 07:37:18.9 |

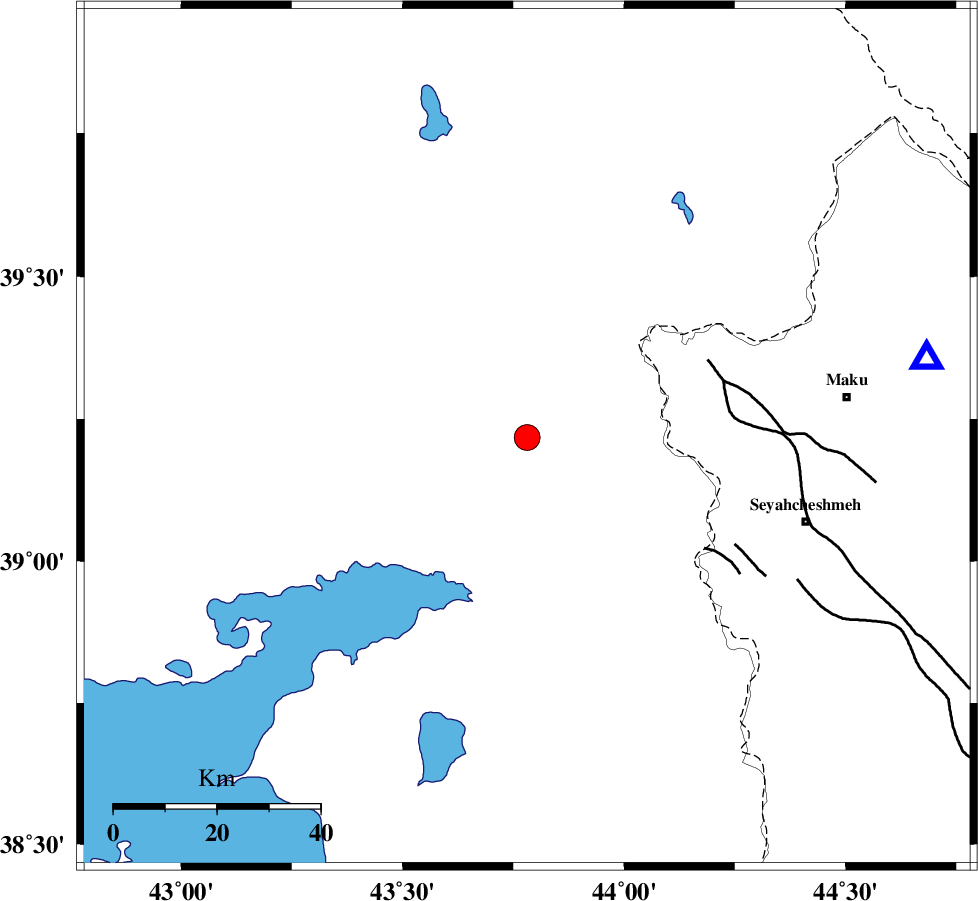

| Location | Lat:39.217 Lon: 43.781 |
| Region | Turkey, 57 km North-West of Seyah Cheshmah |
Nearest Cities |
|
| 40 km West of Arab dizaj, Azarbaijan Gharbi Province | |
| 41 km North West of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| 43 km South West of Kelisa kandi, Azarbaijan Gharbi Province | |
| 44 km North West of Sheykh selu-e paein, Azarbaijan Gharbi Province | |
| 52 km North West of Zavieh, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 38 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 130 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 139 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | >1.2 km |
| Error in Longitude | 1.2 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 181165 | IIEES SC | GNI | Z | 5 | 1 | 2023-04-17 04:07:41 | 2023-04-18 04:58:00 | n |
| 181166 | IIEES SC | GURO | Z | 1 | 1 | 2023-04-17 04:07:46 | 2023-04-18 04:58:00 | n |
| 181167 | IIEES SC | AZR | Z | 3 | 1 | 2023-04-17 04:07:58 | 2023-04-18 04:58:00 | n |
| 181168 | IIEES SC | GRMI | Z | 0.3 | 1 | 2023-04-17 04:08:11 | 2023-04-18 04:58:00 | n |
| 181169 | IIEES SC | SRSL | Z | 0.2 | 1 | 2023-04-17 04:08:12 | 2023-04-18 04:58:00 | n |
| 181170 | IIEES SC | DHR | Z | 0.08 | 1 | 2023-04-17 04:08:36 | 2023-04-18 04:58:00 | n |
| 181171 | IIEES SC | ILBA | Z | 0.02 | 1 | 2023-04-17 04:08:48 | 2023-04-18 04:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GNI | Z | EPg | E | 2023-04-17 04:07:41 | -0.1 | y | 0 | 132 | 39 | ||
| IIEES SC | GURO | Z | EPg | E | 2023-04-17 04:07:46 | 0 | y | 0 | 169 | 244 | ||
| IIEES SC | MRD | Z | EPg | E | 2023-04-17 04:07:45 | -2.2 | n | 4 | 176 | 109 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-04-17 04:07:55 | 0.1 | y | 0 | 228 | 356 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-04-17 04:07:58 | -0.9 | y | 0 | 257 | 132 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-04-17 04:08:11 | -0.1 | y | 0 | 359 | 97 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-04-17 04:08:12 | 0.1 | y | 0 | 364 | 156 | ||
| IIEES SC | ARPR | Z | EPn | E | 2023-04-17 04:08:28 | 3.1 | n | 4 | 471 | 268 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-04-17 04:08:36 | 0.6 | y | 0 | 552 | 155 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-04-17 04:08:36 | 0.7 | y | 0 | 557 | 145 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-04-17 04:08:48 | -0.6 | y | 0 | 658 | 161 | ||
