Magnitude |
:3.6 |
| Date & Time (UTC) | 2023-04-11 11:11:16.8 |
| Date & Time (Local) | 1402/1/22 14:41:16.8 |

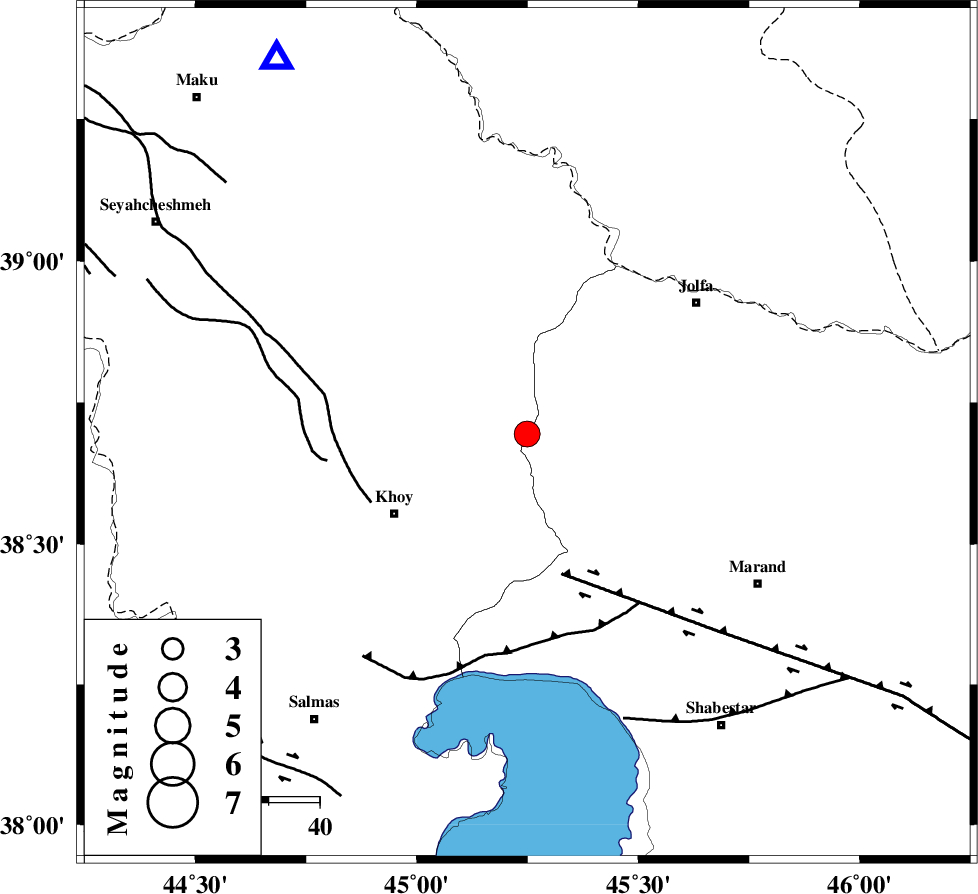

| Location | Lat:38.695 Lon: 45.249 |
| Region | Azarbaijan Gharbi Province, 30 km North-East of Khoy |
Nearest Cities |
|
| 4 km of Evaogli, Azarbaijan Gharbi Province | |
| 19 km North West of Yekan kahriz, Azarbaijan Sharghi Province | |
| 23 km South East of Churas, Azarbaijan Gharbi Province | |
| 24 km North East of Saeedabad, Azarbaijan Gharbi Province | |
| 26 km South East of Gharreziaodin, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 28 km | |
| KHOY (Length: 100 km) , Distance to epicenter: 33 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 40 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 181137 | IIEES SC | MRD | Z | 10 | 1 | 2023-04-11 11:11:24 | 2023-04-15 07:49:00 | n |
| 181138 | IIEES SC | MRD | Z | 10 | 1 | 2023-04-11 11:11:29 | 2023-04-15 07:49:00 | n |
| 181139 | IIEES SC | AZR | Z | 8 | 1 | 2023-04-11 11:11:38 | 2023-04-15 07:49:00 | n |
| 181140 | IIEES SC | GNI | Z | 5 | 1 | 2023-04-11 11:11:44 | 2023-04-15 07:49:00 | n |
| 181141 | IIEES SC | GNI | Z | 5 | 1 | 2023-04-11 11:12:04 | 2023-04-15 07:49:00 | n |
| 181142 | IIEES SC | MAHB | Z | 0.9 | 1 | 2023-04-11 11:11:52 | 2023-04-15 07:49:00 | n |
| 181143 | IIEES SC | GRMI | Z | 0.7 | 1 | 2023-04-11 11:11:53 | 2023-04-15 07:49:00 | n |
| 181144 | IIEES SC | SRSL | Z | 0.2 | 1 | 2023-04-11 11:11:58 | 2023-04-15 07:49:00 | n |
| 181145 | IIEES SC | ZNJK | Z | 0.08 | 1 | 2023-04-11 11:12:11 | 2023-04-15 07:49:00 | n |
| 181146 | IIEES SC | SNGE | Z | 0.06 | 1 | 2023-04-11 11:12:20 | 2023-04-15 07:49:00 | n |
| 181147 | IIEES SC | DHR | Z | 0.1 | 1 | 2023-04-11 11:12:22 | 2023-04-15 07:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-04-11 11:11:24 | 0 | y | 0 | 40 | 87 | ||
| IIEES SC | MRD | Z | ESg | E | 2023-04-11 11:11:29 | -0.2 | y | 0 | 40 | 87 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-04-11 11:11:38 | -0.5 | y | 0 | 130 | 150 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-04-11 11:11:44 | 0 | y | 0 | 167 | 345 | ||
| IIEES SC | GNI | Z | ESg | E | 2023-04-11 11:12:04 | -0.2 | y | 0 | 167 | 345 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-04-11 11:11:52 | 0.2 | y | 0 | 218 | 169 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-04-11 11:11:53 | 0.2 | y | 0 | 230 | 87 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-04-11 11:11:58 | -0.9 | y | 0 | 276 | 177 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-04-11 11:12:04 | 0.1 | y | 0 | 318 | 334 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-04-11 11:12:11 | -0.2 | y | 0 | 377 | 127 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-04-11 11:12:20 | 0.7 | y | 0 | 441 | 155 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-04-11 11:12:22 | 0.7 | y | 0 | 455 | 167 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-04-11 11:12:35 | -0.2 | y | 0 | 569 | 171 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-04-11 11:13:23 | 0.3 | y | 0 | 957 | 97 | ||
