Magnitude |
:3.2 |
| Date & Time (UTC) | 2023-04-08 22:05:04.2 |
| Date & Time (Local) | 1402/1/20 01:35:04.2 |

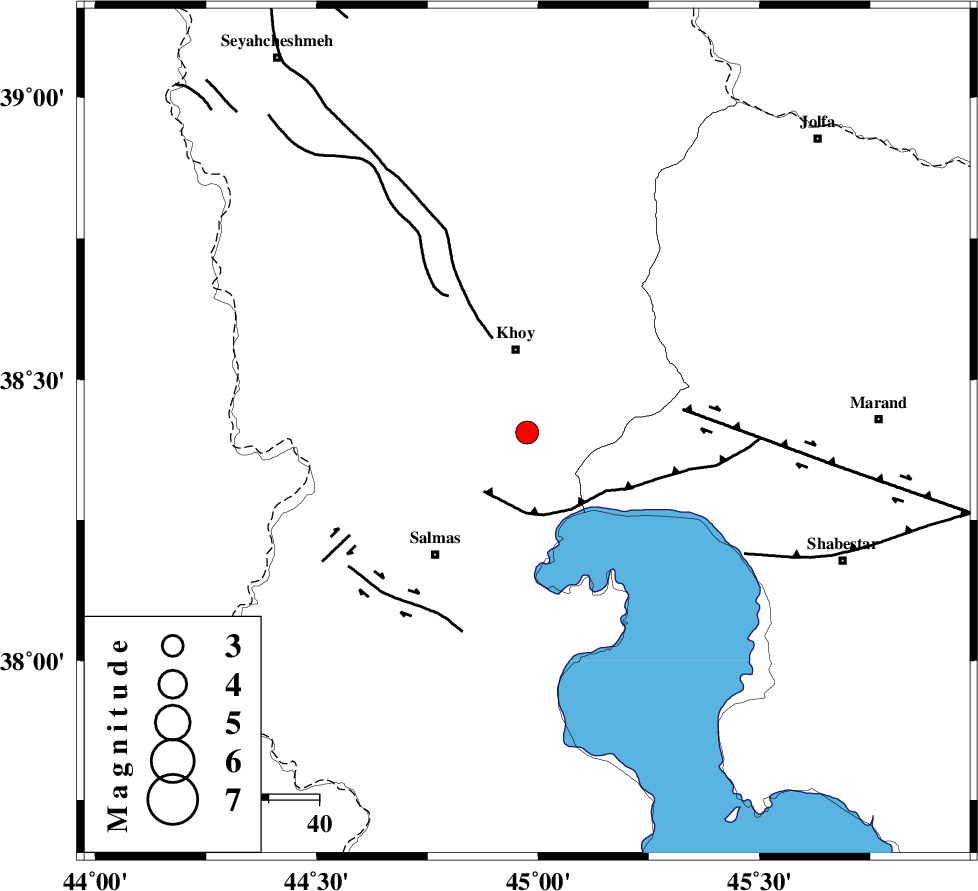

| Location | Lat:38.406 Lon: 44.975 |
| Region | Azarbaijan Gharbi Province, 17 km South of Khoy |
Nearest Cities |
|
| 7 km of Quruq, Azarbaijan Gharbi Province | |
| 8 km of Dizaj diz, Azarbaijan Gharbi Province | |
| 17 km South of Khoy, Azarbaijan Gharbi Province | |
| 18 km South of Saeedabad, Azarbaijan Gharbi Province | |
| 18 km North of Qareh qeshlaq, Azarbaijan Gharbi Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 14 km | |
| KHOY (Length: 100 km) , Distance to epicenter: 20 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 31 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 180978 | IIEES SC | MRD | Z | 5 | 1 | 2023-04-08 22:05:17 | 2023-04-09 04:11:00 | n |
| 180979 | IIEES SC | MAHB | Z | 0.5 | 1 | 2023-04-08 22:05:36 | 2023-04-09 04:11:00 | n |
| 180980 | IIEES SC | GNI | Z | 0.7 | 1 | 2023-04-08 22:05:35 | 2023-04-09 04:11:00 | n |
| 180981 | IIEES SC | SRSL | Z | 0.3 | 1 | 2023-04-08 22:05:42 | 2023-04-09 04:11:00 | n |
| 180982 | IIEES SC | GRMI | Z | 0.2 | 1 | 2023-04-08 22:05:44 | 2023-04-09 04:11:00 | n |
| 180983 | IIEES SC | SNGE | Z | 0.02 | 1 | 2023-04-08 22:06:05 | 2023-04-09 04:11:00 | n |
| 180984 | IIEES SC | DHR | Z | 0.09 | 1 | 2023-04-08 22:06:06 | 2023-04-09 04:11:00 | n |
| 180985 | IIEES SC | HGHA | Z | 0.03 | 1 | 2023-04-08 22:06:11 | 2023-04-09 04:11:00 | n |
| 180986 | IIEES SC | ILBA | Z | 0.02 | 1 | 2023-04-08 22:06:19 | 2023-04-09 04:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-04-08 22:05:17 | 0 | y | 0 | 72 | 62 | ||
| IIEES SC | MAHB | Z | EPg | E | 2023-04-08 22:05:36 | 0.3 | y | 0 | 193 | 160 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-04-08 22:05:35 | -0.2 | y | 0 | 194 | 354 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-04-08 22:05:42 | -0.9 | y | 0 | 247 | 171 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-04-08 22:05:44 | 0.3 | y | 0 | 257 | 274 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-04-08 22:05:44 | 0.2 | y | 0 | 258 | 80 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-04-08 22:06:05 | 0.1 | y | 0 | 424 | 150 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-04-08 22:06:06 | -0.1 | y | 0 | 430 | 163 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-04-08 22:06:11 | -0.6 | y | 0 | 474 | 133 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-04-08 22:06:19 | -0.6 | y | 0 | 542 | 168 | ||
