Magnitude |
:3 |
| Date & Time (UTC) | 2023-04-07 11:15:05.4 |
| Date & Time (Local) | 1402/1/18 14:45:05.4 |
| Location | Lat:38.388 Lon: 44.773 |
| Region | Azarbaijan Gharbi Province, 22 km North of Salmas |
Nearest Cities |
|
| 8 km North of Saylab, Azarbaijan Gharbi Province | |
| 15 km West of Quruq, Azarbaijan Gharbi Province | |
| 18 km South of Beyk sofla, Azarbaijan Gharbi Province | |
| 21 km North West of Qareh qeshlaq, Azarbaijan Gharbi Province | |
| 22 km North of Salmas, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |

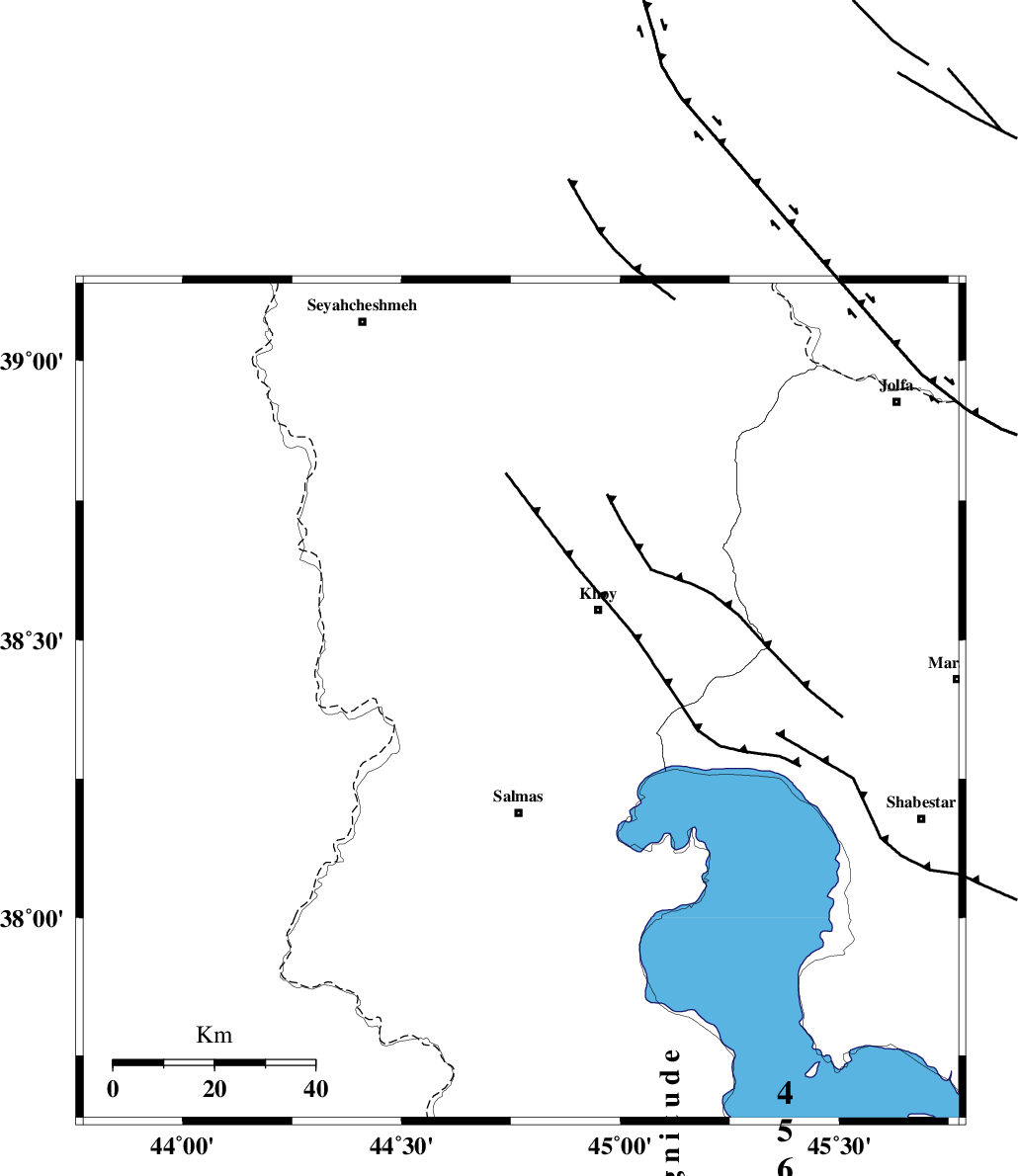

Faults within 150 km: |
|
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 13 km | |
| KHOY (Length: 100 km) , Distance to epicenter: 23 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 25 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 180888 | IIEES SC | GNI | Z | 0.4 | 1 | 2023-04-07 11:15:37 | 2023-04-08 06:11:00 | n |
| 180889 | IIEES SC | GNI | Z | 0.4 | 1 | 2023-04-07 11:15:59 | 2023-04-08 06:11:00 | n |
| 180890 | IIEES SC | SRSL | Z | 0.09 | 1 | 2023-04-07 11:15:44 | 2023-04-08 06:11:00 | n |
| 180891 | IIEES SC | GRMI | Z | 0.1 | 1 | 2023-04-07 11:15:47 | 2023-04-08 06:11:00 | n |
| 180892 | IIEES SC | GRMI | Z | 0.1 | 1 | 2023-04-07 11:16:18 | 2023-04-08 06:11:00 | n |
| 180893 | IIEES SC | ZNJK | Z | 0.02 | 1 | 2023-04-07 11:16:02 | 2023-04-08 06:11:00 | n |
| 180894 | IIEES SC | HGHA | Z | 0.02 | 1 | 2023-04-07 11:16:14 | 2023-04-08 06:11:00 | n |
| 180895 | IIEES SC | KCHF | Z | 0.03 | 1 | 2023-04-07 11:16:14 | 2023-04-08 06:11:00 | n |
| 180896 | IIEES SC | ILBA | Z | 0.02 | 1 | 2023-04-07 11:16:20 | 2023-04-08 06:11:00 | n |
| 180897 | IIEES SC | ASAO | Z | 0.01 | 1 | 2023-04-07 11:16:32 | 2023-04-08 06:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GNI | Z | EPg | E | 2023-04-07 11:15:37 | 0 | y | 0 | 195 | 359 | ||
| IIEES SC | GNI | Z | ESg | E | 2023-04-07 11:15:59 | -0.7 | y | 0 | 195 | 359 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-04-07 11:15:44 | 0 | y | 0 | 248 | 166 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-04-07 11:15:47 | 0.1 | y | 0 | 276 | 80 | ||
| IIEES SC | GRMI | Z | ES | E | 2023-04-07 11:16:18 | 0.1 | y | 0 | 276 | 80 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-04-07 11:15:55 | 0.3 | y | 0 | 335 | 343 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-04-07 11:16:02 | 0.4 | y | 0 | 395 | 119 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-04-07 11:16:14 | 0.4 | y | 0 | 486 | 131 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-04-07 11:16:14 | -0.7 | y | 0 | 500 | 156 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-04-07 11:16:20 | -0.2 | y | 0 | 544 | 166 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-04-07 11:16:32 | 0.4 | y | 0 | 635 | 132 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-04-07 11:17:17 | -0.1 | y | 0 | 997 | 95 | ||
