Magnitude |
:3.1 |
| Date & Time (UTC) | 2023-03-24 04:27:44.2 |
| Date & Time (Local) | 1402/1/4 07:57:44.2 |
| Location | Lat:38.406 Lon: 44.786 |
| Region | Azarbaijan Gharbi Province, 24 km North of Salmas |
Nearest Cities |
|
| 11 km North of Saylab, Azarbaijan Gharbi Province | |
| 13 km West of Quruq, Azarbaijan Gharbi Province | |
| 16 km South of Beyk sofla, Azarbaijan Gharbi Province | |
| 22 km South West of Khoy, Azarbaijan Gharbi Province | |
| 22 km North West of Qareh qeshlaq, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |

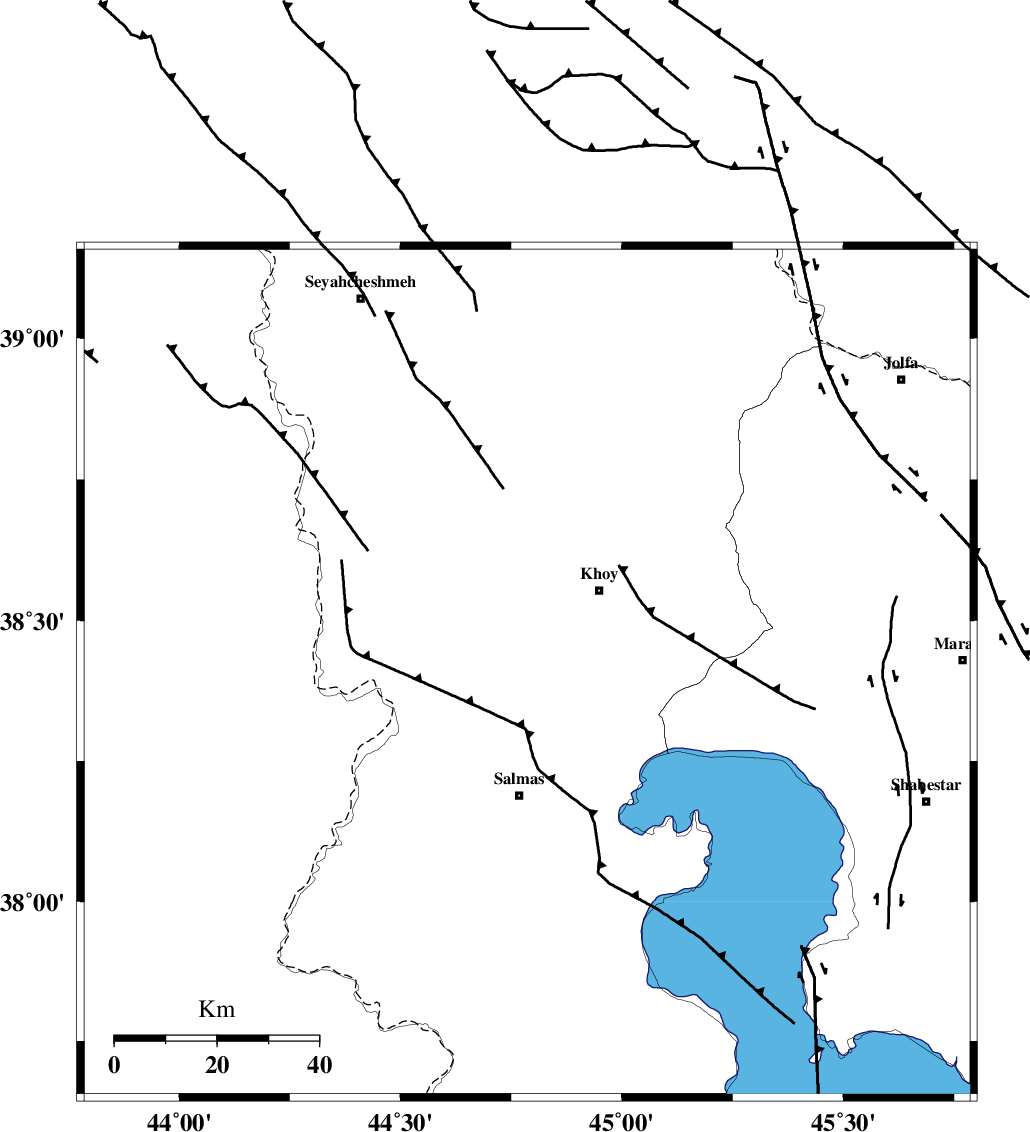

Faults within 150 km: |
|
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 14 km | |
| KHOY (Length: 100 km) , Distance to epicenter: 21 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 27 km | |
| Number of Phases | 14 |
| RMS | 0.5 |
| Number of Stations | 14 |
| Error in Latitude | >2 km |
| Error in Longitude | 2 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 180296 | IIEES SC | GNI | Z | 0.8 | 1 | 2023-03-24 04:28:16 | 2023-03-25 08:35:00 | n |
| 180297 | IIEES SC | MAHB | Z | 0.4 | 1 | 2023-03-24 04:28:16 | 2023-03-25 08:35:00 | n |
| 180298 | IIEES SC | SRSL | Z | 0.3 | 1 | 2023-03-24 04:28:23 | 2023-03-25 08:35:00 | n |
| 180299 | IIEES SC | GRMI | Z | 0.2 | 1 | 2023-03-24 04:28:26 | 2023-03-25 08:35:00 | n |
| 180300 | IIEES SC | SNGE | Z | 0.01 | 1 | 2023-03-24 04:28:45 | 2023-03-25 08:35:00 | n |
| 180301 | IIEES SC | DHR | Z | 0.09 | 1 | 2023-03-24 04:28:47 | 2023-03-25 08:35:00 | n |
| 180302 | IIEES SC | GIDE | Z | 0.01 | 1 | 2023-03-24 04:28:51 | 2023-03-25 08:35:00 | n |
| 180303 | IIEES SC | HGHA | Z | 0.03 | 1 | 2023-03-24 04:28:52 | 2023-03-25 08:35:00 | n |
| 180304 | IIEES SC | ILBA | Z | 0.03 | 1 | 2023-03-24 04:29:00 | 2023-03-25 08:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-03-24 04:27:58 | -0.6 | y | 0 | 87 | 67 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-03-24 04:28:02 | 0 | y | 0 | 106 | 355 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-03-24 04:28:05 | -1 | y | 0 | 133 | 128 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-03-24 04:28:16 | 0.8 | y | 0 | 193 | 359 | ||
| IIEES SC | MAHB | Z | EPg | E | 2023-03-24 04:28:16 | -0.1 | y | 0 | 199 | 156 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-03-24 04:28:21 | -0.3 | y | 0 | 241 | 274 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-03-24 04:28:23 | 0.5 | y | 0 | 250 | 167 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-03-24 04:28:26 | 0.1 | y | 0 | 274 | 81 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-03-24 04:28:39 | 6.2 | n | 4 | 333 | 342 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-03-24 04:28:45 | -0.4 | y | 0 | 433 | 148 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-03-24 04:28:47 | 0.7 | y | 0 | 436 | 161 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-03-24 04:28:51 | 0.3 | y | 0 | 474 | 110 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-03-24 04:28:52 | 0.1 | y | 0 | 486 | 132 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-03-24 04:29:00 | 0.6 | y | 0 | 546 | 166 | ||
