Magnitude |
:3.7 |
| Date & Time (UTC) | 2023-03-24 03:31:49.1 |
| Date & Time (Local) | 1402/1/4 07:01:49.1 |

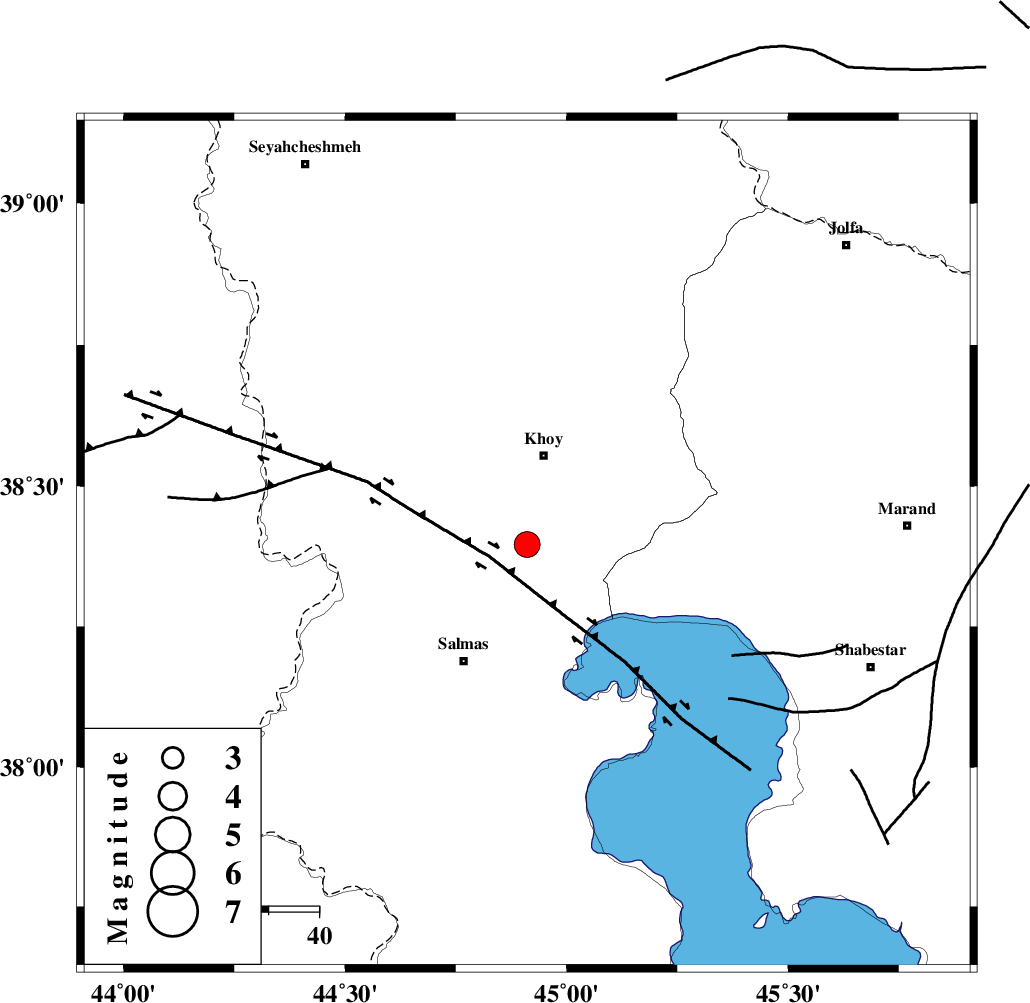

| Location | Lat:38.396 Lon: 44.911 |
| Region | Azarbaijan Gharbi Province, 18 km South of Khoy |
Nearest Cities |
|
| 6 km of Quruq, Azarbaijan Gharbi Province | |
| 13 km West of Dizaj diz, Azarbaijan Gharbi Province | |
| 16 km North East of Saylab, Azarbaijan Gharbi Province | |
| 17 km North of Qareh qeshlaq, Azarbaijan Gharbi Province | |
| 18 km South of Khoy, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 11 km | |
| KHOY (Length: 100 km) , Distance to epicenter: 20 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 35 km | |
| Number of Phases | 19 |
| RMS | 0.5 |
| Number of Stations | 19 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 180215 | IIEES SC | MRD | Z | 8 | 1 | 2023-03-24 03:32:03 | 2023-03-25 07:09:00 | n |
| 180216 | IIEES SC | AZR | Z | 10 | 1 | 2023-03-24 03:32:09 | 2023-03-25 07:09:00 | n |
| 180217 | IIEES SC | MAHB | Z | 0.9 | 1 | 2023-03-24 03:32:20 | 2023-03-25 07:09:00 | n |
| 180218 | IIEES SC | GNI | Z | 2 | 1 | 2023-03-24 03:32:21 | 2023-03-25 07:09:00 | n |
| 180219 | IIEES SC | SRSL | Z | 0.6 | 1 | 2023-03-24 03:32:28 | 2023-03-25 07:09:00 | n |
| 180220 | IIEES SC | GURO | Z | 0.2 | 1 | 2023-03-24 03:32:28 | 2023-03-25 07:09:00 | n |
| 180221 | IIEES SC | GRMI | Z | 0.3 | 1 | 2023-03-24 03:32:30 | 2023-03-25 07:09:00 | n |
| 180222 | IIEES SC | DHR | Z | 0.2 | 1 | 2023-03-24 03:32:50 | 2023-03-25 07:09:00 | n |
| 180223 | IIEES SC | GIDE | Z | 0.02 | 1 | 2023-03-24 03:32:54 | 2023-03-25 07:09:00 | n |
| 180224 | IIEES SC | KCHF | Z | 0.2 | 1 | 2023-03-24 03:32:58 | 2023-03-25 07:09:00 | n |
| 180225 | IIEES SC | ILBA | Z | 0.06 | 1 | 2023-03-24 03:33:04 | 2023-03-25 07:09:00 | n |
| 180226 | IIEES SC | ASAO | Z | 0.06 | 1 | 2023-03-24 03:33:14 | 2023-03-25 07:09:00 | n |
| 180227 | IIEES SC | GTMR | Z | 0.07 | 1 | 2023-03-24 03:33:31 | 2023-03-25 07:09:00 | n |
| 180228 | IIEES SC | GLO | Z | 0.04 | 1 | 2023-03-24 03:33:38 | 2023-03-25 07:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-03-24 03:32:03 | 0.3 | y | 0 | 77 | 63 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-03-24 03:32:06 | -0.7 | y | 0 | 108 | 349 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-03-24 03:32:09 | -0.2 | y | 0 | 123 | 130 | ||
| IIEES SC | MAHB | Z | EPg | E | 2023-03-24 03:32:20 | -0.4 | y | 0 | 194 | 159 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-03-24 03:32:21 | 0.6 | y | 0 | 195 | 356 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-03-24 03:32:28 | 0.7 | y | 0 | 247 | 169 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-03-24 03:32:28 | 0 | y | 0 | 252 | 274 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-03-24 03:32:30 | 0.3 | y | 0 | 264 | 80 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-03-24 03:32:45 | 6.4 | n | 4 | 338 | 341 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-03-24 03:32:50 | 0.7 | y | 0 | 426 | 149 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-03-24 03:32:50 | 0 | y | 0 | 431 | 162 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-03-24 03:32:54 | -0.7 | y | 0 | 463 | 111 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-03-24 03:33:00 | 3.6 | n | 4 | 477 | 133 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-03-24 03:32:58 | -0.3 | y | 0 | 496 | 157 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-03-24 03:33:04 | 0.5 | y | 0 | 542 | 168 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-03-24 03:33:14 | -0.1 | y | 0 | 626 | 133 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-03-24 03:33:31 | 0.3 | y | 0 | 760 | 150 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-03-24 03:33:38 | -0.1 | y | 0 | 817 | 105 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-03-24 03:33:58 | -0.6 | y | 0 | 985 | 95 | ||
