Magnitude |
:2.9 |
| Date & Time (UTC) | 2023-03-19 11:16:33.7 |
| Date & Time (Local) | 1401/12/28 14:46:33.7 |

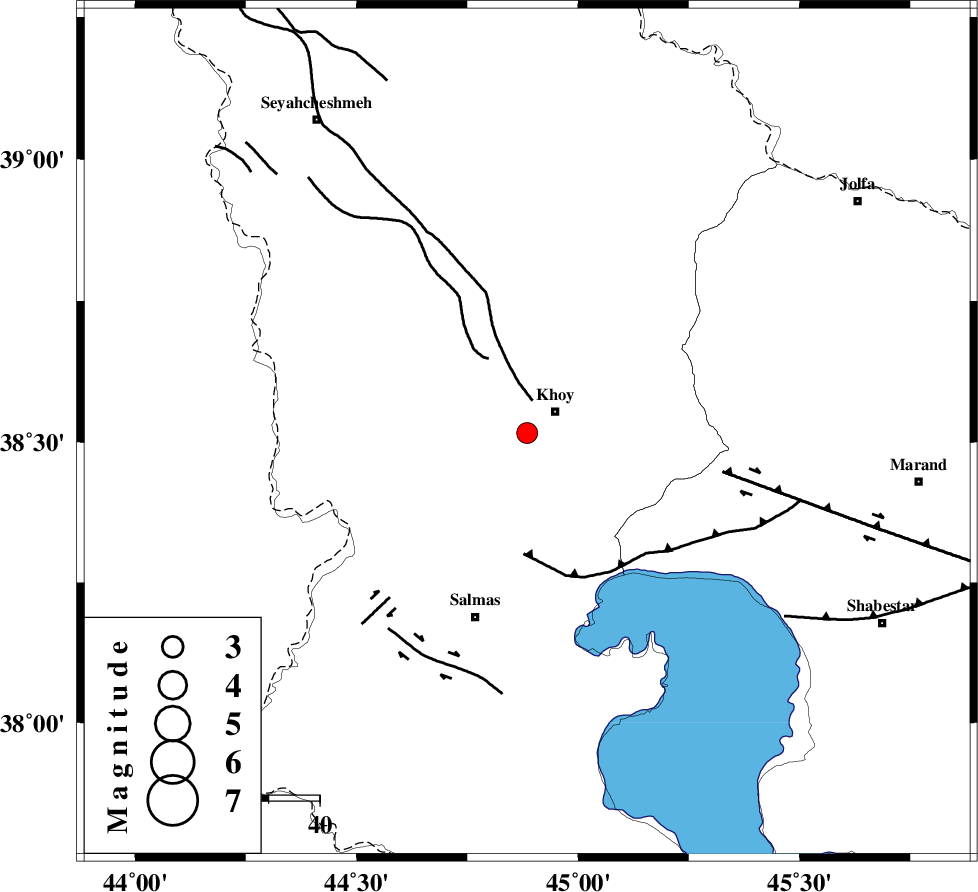

| Location | Lat:38.516 Lon: 44.885 |
| Region | Azarbaijan Gharbi Province, 7 km of Khoy |
Nearest Cities |
|
| 7 km of Khoy, Azarbaijan Gharbi Province | |
| 8 km of Beyk sofla, Azarbaijan Gharbi Province | |
| 8 km North of Quruq, Azarbaijan Gharbi Province | |
| 13 km West of Saeedabad, Azarbaijan Gharbi Province | |
| 14 km North West of Dizaj diz, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 6 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 24 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 39 km | |
| Number of Phases | 10 |
| RMS | 0.6 |
| Number of Stations | 10 |
| Error in Latitude | >2 km |
| Error in Longitude | 2 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 180172 | IIEES SC | MRD | Z | 4 | 1 | 2023-03-19 11:16:46 | 2023-03-23 09:12:00 | n |
| 180173 | IIEES SC | GNI | Z | 0.5 | 1 | 2023-03-19 11:17:04 | 2023-03-23 09:12:00 | n |
| 180174 | IIEES SC | MAHB | Z | 0.2 | 1 | 2023-03-19 11:17:06 | 2023-03-23 09:12:00 | n |
| 180175 | IIEES SC | GURO | Z | 0.09 | 1 | 2023-03-19 11:17:12 | 2023-03-23 09:12:00 | n |
| 180176 | IIEES SC | SRSL | Z | 0.08 | 1 | 2023-03-19 11:17:14 | 2023-03-23 09:12:00 | n |
| 180177 | IIEES SC | GRMI | Z | 0.1 | 1 | 2023-03-19 11:17:15 | 2023-03-23 09:12:00 | n |
| 180178 | IIEES SC | ZNJK | Z | 0.02 | 1 | 2023-03-19 11:17:31 | 2023-03-23 09:12:00 | n |
| 180179 | IIEES SC | SNGE | Z | 0.02 | 1 | 2023-03-19 11:17:36 | 2023-03-23 09:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-03-19 11:16:46 | -0.6 | y | 0 | 74 | 73 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-03-19 11:16:49 | -0.8 | y | 0 | 95 | 349 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-03-19 11:16:55 | -0.4 | y | 0 | 134 | 134 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-03-19 11:17:04 | 0.8 | y | 0 | 182 | 356 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-03-19 11:17:06 | -0.8 | y | 0 | 207 | 160 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-03-19 11:17:12 | 0 | y | 0 | 249 | 271 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-03-19 11:17:14 | 0.5 | y | 0 | 260 | 169 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-03-19 11:17:15 | 0.7 | y | 0 | 264 | 83 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-03-19 11:17:31 | 0.6 | y | 0 | 393 | 121 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-03-19 11:17:36 | -0.1 | y | 0 | 439 | 150 | ||
