Magnitude |
:3.8 |
| Date & Time (UTC) | 2023-01-31 04:13:03.9 |
| Date & Time (Local) | 1401/11/11 07:43:03.9 |

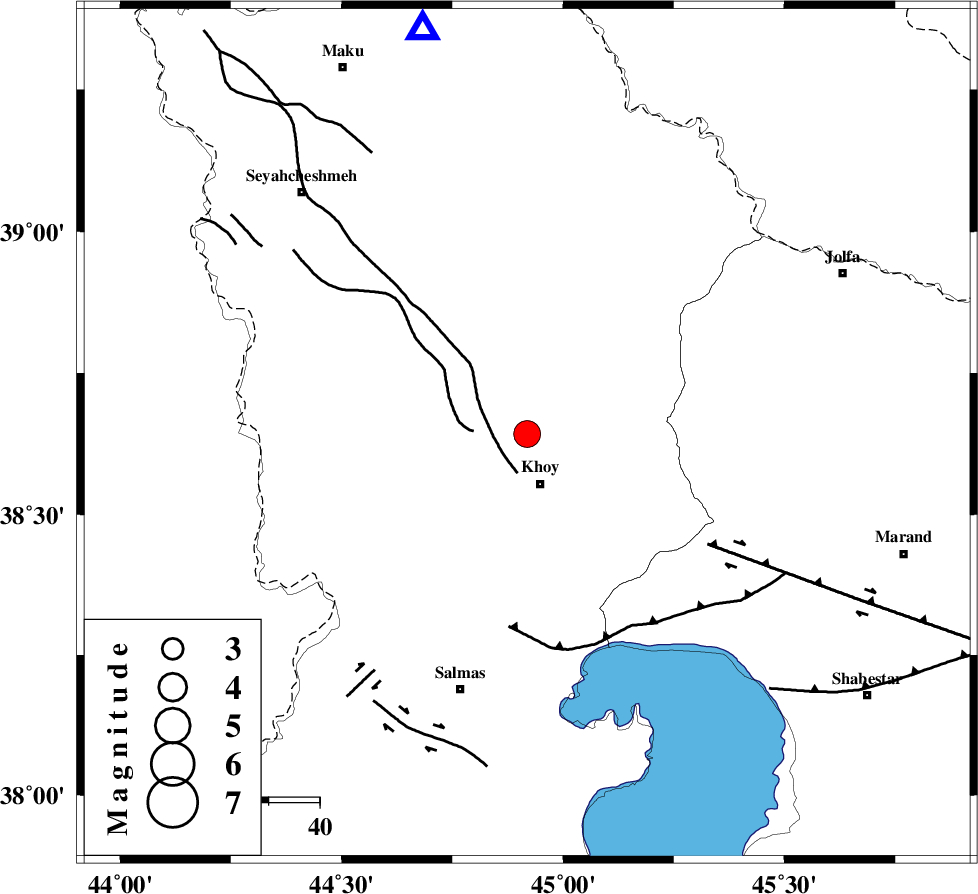

| Location | Lat:38.642 Lon: 44.919 |
| Region | Azarbaijan Gharbi Province, 10 km of Khoy |
Nearest Cities |
|
| 3 km of Dizaj, Azarbaijan Gharbi Province | |
| 10 km North of Khoy, Azarbaijan Gharbi Province | |
| 13 km North West of Saeedabad, Azarbaijan Gharbi Province | |
| 15 km North East of Beyk sofla, Azarbaijan Gharbi Province | |
| 22 km North of Quruq, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 8 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 38 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 42 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 178521 | IIEES SC | GNI | Z | 4 | 1 | 2023-01-31 04:13:31 | 2023-01-31 05:46:00 | n |
| 178522 | IIEES SC | MAHB | Z | 2 | 1 | 2023-01-31 04:13:38 | 2023-01-31 05:46:00 | n |
| 178523 | IIEES SC | GRMI | Z | 1 | 1 | 2023-01-31 04:13:44 | 2023-01-31 05:46:00 | n |
| 178524 | IIEES SC | ILBA | Z | 0.06 | 1 | 2023-01-31 04:14:22 | 2023-01-31 05:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-31 04:13:15 | -0.3 | y | 0 | 69 | 83 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-31 04:13:17 | -0.6 | y | 0 | 82 | 346 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-31 04:13:31 | 0.2 | y | 0 | 168 | 355 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-31 04:13:38 | -0.9 | y | 0 | 219 | 162 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-31 04:13:43 | 0.3 | y | 0 | 252 | 268 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-31 04:13:44 | 0.3 | y | 0 | 259 | 86 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-01-31 04:13:55 | 3.9 | n | 4 | 312 | 339 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-01-31 04:13:57 | -4.2 | n | 4 | 398 | 123 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-01-31 04:14:08 | 0.7 | y | 0 | 450 | 151 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-01-31 04:14:19 | 8.1 | n | 4 | 472 | 114 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-01-31 04:14:22 | -0.1 | y | 0 | 569 | 168 | ||
