Magnitude |
:3.1 |
| Date & Time (UTC) | 2023-01-28 19:05:02.2 |
| Date & Time (Local) | 1401/11/8 22:35:02.2 |
| Location | Lat:38.642 Lon: 44.96 |
| Region | Azarbaijan Gharbi Province, 10 km of Khoy |
Nearest Cities |
|
| 1 km of Dizaj, Azarbaijan Gharbi Province | |
| 10 km North of Khoy, Azarbaijan Gharbi Province | |
| 10 km North of Saeedabad, Azarbaijan Gharbi Province | |
| 18 km North East of Beyk sofla, Azarbaijan Gharbi Province | |
| 21 km North of Dizaj diz, Azarbaijan Gharbi Province | |
| Depth | 8 km |
| Agency | |

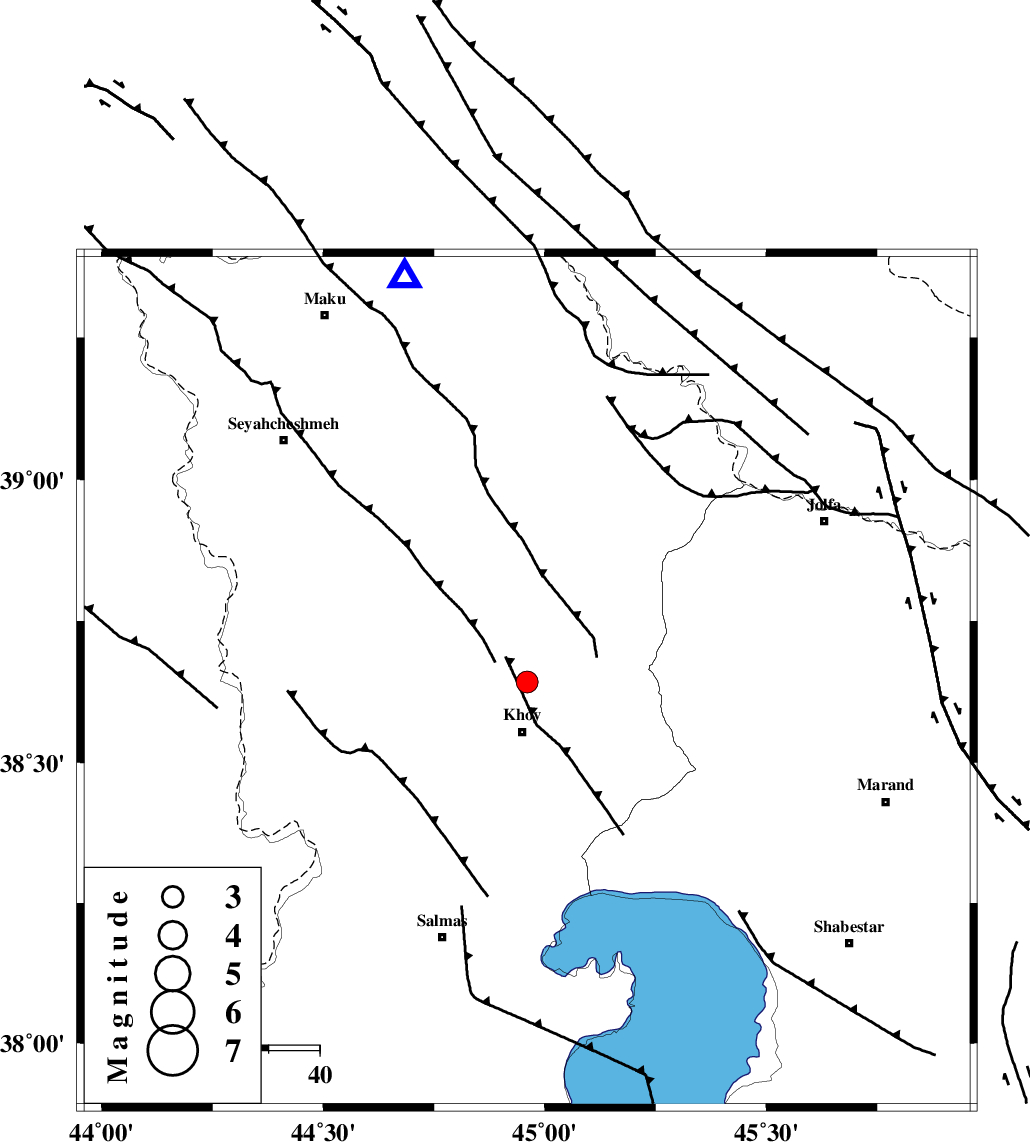

Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 9 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 38 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 39 km | |
| Number of Phases | 18 |
| RMS | 0.5 |
| Number of Stations | 18 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 178315 | IIEES SC | MRD | Z | 6 | 1 | 2023-01-28 19:05:13 | 2023-01-29 08:55:00 | n |
| 178316 | IIEES SC | MRD | Z | 6 | 1 | 2023-01-28 19:05:21 | 2023-01-29 08:55:00 | n |
| 178317 | IIEES SC | GNI | Z | 1 | 1 | 2023-01-28 19:05:30 | 2023-01-29 08:55:00 | n |
| 178318 | IIEES SC | GNI | Z | 1 | 1 | 2023-01-28 19:05:49 | 2023-01-29 08:55:00 | n |
| 178319 | IIEES SC | MAHB | Z | 0.3 | 1 | 2023-01-28 19:06:04 | 2023-01-29 08:55:00 | n |
| 178320 | IIEES SC | MAHB | Z | 0.3 | 1 | 2023-01-28 19:05:38 | 2023-01-29 08:55:00 | n |
| 178321 | IIEES SC | GURO | Z | 0.06 | 1 | 2023-01-28 19:05:42 | 2023-01-29 08:55:00 | n |
| 178322 | IIEES SC | GRMI | Z | 0.2 | 1 | 2023-01-28 19:05:42 | 2023-01-29 08:55:00 | n |
| 178323 | IIEES SC | SRSL | Z | 0.1 | 1 | 2023-01-28 19:05:45 | 2023-01-29 08:55:00 | n |
| 178324 | IIEES SC | BGD | Z | 0.04 | 1 | 2023-01-28 19:05:50 | 2023-01-29 08:55:00 | n |
| 178325 | IIEES SC | KCHF | Z | 0.05 | 1 | 2023-01-28 19:06:15 | 2023-01-29 08:55:00 | n |
| 178326 | IIEES SC | ILBA | Z | 0.02 | 1 | 2023-01-28 19:06:21 | 2023-01-29 08:55:00 | n |
| 178327 | IIEES SC | CHTH | Z | 0.02 | 1 | 2023-01-28 19:06:29 | 2023-01-29 08:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-28 19:05:13 | -0.4 | y | 0 | 65 | 83 | ||
| IIEES SC | MRD | Z | ESg | E | 2023-01-28 19:05:21 | -0.4 | y | 0 | 65 | 83 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-28 19:05:17 | 0.6 | y | 0 | 83 | 343 | ||
| IIEES SC | MAKU | Z | ESg | E | 2023-01-28 19:05:28 | 0.8 | y | 0 | 83 | 343 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-01-28 19:05:25 | -0.3 | y | 0 | 140 | 140 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-28 19:05:30 | 0.1 | y | 0 | 168 | 354 | ||
| IIEES SC | GNI | Z | ESg | E | 2023-01-28 19:05:49 | -0.6 | y | 0 | 168 | 354 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-28 19:05:38 | 0.3 | y | 0 | 218 | 162 | ||
| IIEES SC | MAHB | Z | ES | E | 2023-01-28 19:06:04 | 0.4 | y | 0 | 218 | 162 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-28 19:05:42 | -0.4 | y | 0 | 255 | 268 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-28 19:05:42 | 0.1 | y | 0 | 256 | 86 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-01-28 19:05:45 | 0.6 | y | 0 | 273 | 171 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-01-28 19:05:50 | 0.7 | y | 0 | 314 | 338 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-01-28 19:05:59 | -0.4 | y | 0 | 395 | 124 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-01-28 19:06:15 | 0 | y | 0 | 519 | 159 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-01-28 19:06:21 | -0.1 | y | 0 | 568 | 169 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-01-28 19:06:29 | 0.5 | y | 0 | 625 | 119 | ||
| IIEES SC | ABGH | Z | EPn | E | 2023-01-28 19:07:02 | 0.5 | y | 0 | 893 | 104 | ||
