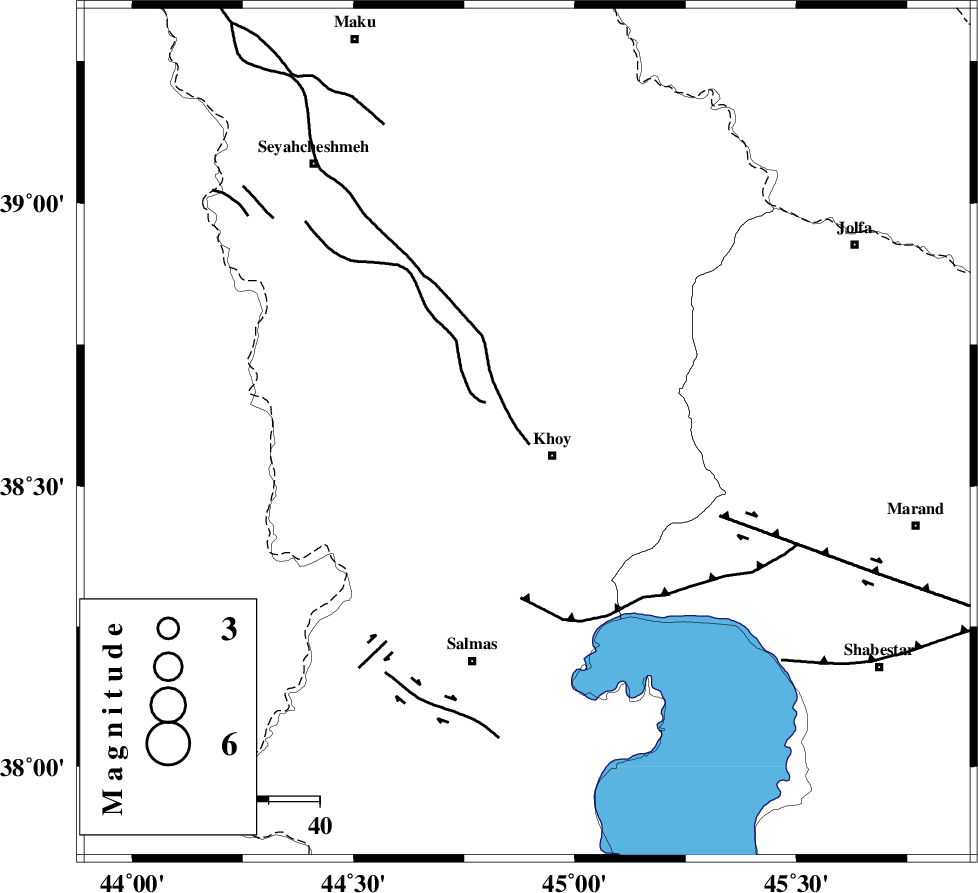

Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 :2.9
Date & Time (UTC) 2023-01-29 02:39:31.7
Date & Time (Local) 1401/11/9  06:09:31.7
Location Lat:38.593 Lon: 44.892
Region Azarbaijan Gharbi Province, 7 km of Khoy
Nearest Cities
7 km North of Khoy, Azarbaijan Gharbi Province
8 km of Dizaj, Azarbaijan Gharbi Province
10 km North of Beyk sofla, Azarbaijan Gharbi Province
12 km North West of Saeedabad, Azarbaijan Gharbi Province
16 km North of Quruq, Azarbaijan Gharbi Province
Depth 12 km
Agency
Faults within 150 km:
KHOY (Length: 100 km) , Distance to epicenter: 2 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 32 km
N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 41 km
Number of Phases 9
RMS 0.6
Number of Stations 9
Error in Latitude >3 km
Error in Longitude 3 km
Error in Depth 15.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
178215IIEES SCMRDZ 212023-01-29 02:39:442023-01-29 06:24:00n
178216IIEES SCMRDZ 212023-01-29 02:39:532023-01-29 06:24:00n
178217IIEES SCGNIZ 0.312023-01-29 02:40:002023-01-29 06:24:00n
178218IIEES SCMAHBZ 0.0912023-01-29 02:40:062023-01-29 06:24:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMRDZ EPg E2023-01-29 02:39:44-0.2y07279
IIEES SCMRDZ ESg E2023-01-29 02:39:530y07279
IIEES SCMAKUZ EPg E2023-01-29 02:39:45-0.8y086348
IIEES SCAZRZ EPg E2023-01-29 02:39:54-0.7y0140137
IIEES SCAZRZ ESg E2023-01-29 02:40:11-0.1y0140137
IIEES SCGNIZ EPg E2023-01-29 02:40:000.6y0173356
IIEES SCMAHBZ EPn E2023-01-29 02:40:060.1y0215161
IIEES SCGRMIZ EPn E2023-01-29 02:40:120.2y026285
IIEES SCSRSLZ EPn E2023-01-29 02:40:130.3y0269170
