Magnitude
 :3.1
Date & Time (UTC) 2023-01-22 08:31:35.4
Date & Time (Local) 1401/11/2  12:01:35.4

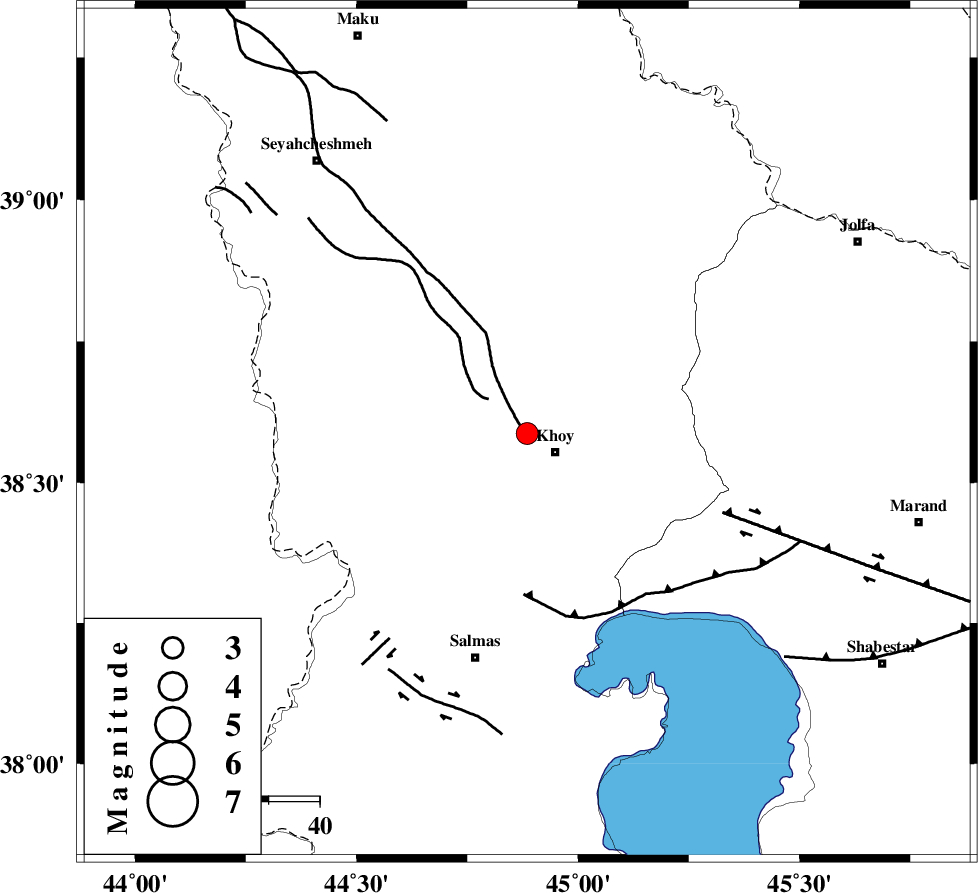

Location Lat:38.587 Lon: 44.885
Region Azarbaijan Gharbi Province, 7 km of Khoy
Nearest Cities
7 km North of Khoy, Azarbaijan Gharbi Province
9 km North of Beyk sofla, Azarbaijan Gharbi Province
9 km of Dizaj, Azarbaijan Gharbi Province
12 km North West of Saeedabad, Azarbaijan Gharbi Province
16 km North of Quruq, Azarbaijan Gharbi Province
Depth 10 km
Agency
Faults within 150 km:
KHOY (Length: 100 km) , Distance to epicenter: 2 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 32 km
N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 41 km
Number of Phases 10
RMS 0.6
Number of Stations 10
Error in Latitude >4.5 km
Error in Longitude 4.5 km
Error in Depth 9.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
177932IIEES SCGNIZ 0.712023-01-22 08:32:042023-01-23 04:53:00n
177933IIEES SCGRMIZ 0.112023-01-22 08:32:172023-01-23 04:53:00n
177934IIEES SCDHRZ 0.0312023-01-22 08:32:402023-01-23 04:53:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMRDZ EPg E2023-01-22 08:31:48-0.1y07279
IIEES SCMAKUZ EPg E2023-01-22 08:31:50-0.6y087348
IIEES SCAZRZ EPg E2023-01-22 08:31:57-0.9y0140136
IIEES SCGNIZ EPg E2023-01-22 08:32:040.8y0174356
IIEES SCMAHBZ EPn E2023-01-22 08:32:100.5y0215160
IIEES SCGRMIZ EPn E2023-01-22 08:32:170.8y026385
IIEES SCSRSLZ EPn E2023-01-22 08:32:160y0268170
IIEES SCBGDZ EPn E2023-01-22 08:32:274.1n4317340
IIEES SCDHRZ EPn E2023-01-22 08:32:400.8y0452163
IIEES SCKIVZ EPn E2023-01-22 08:32:50-10.4n4624343
