Magnitude |
:3 |
| Date & Time (UTC) | 2023-01-19 23:07:18.4 |
| Date & Time (Local) | 1401/10/30 02:37:18.4 |

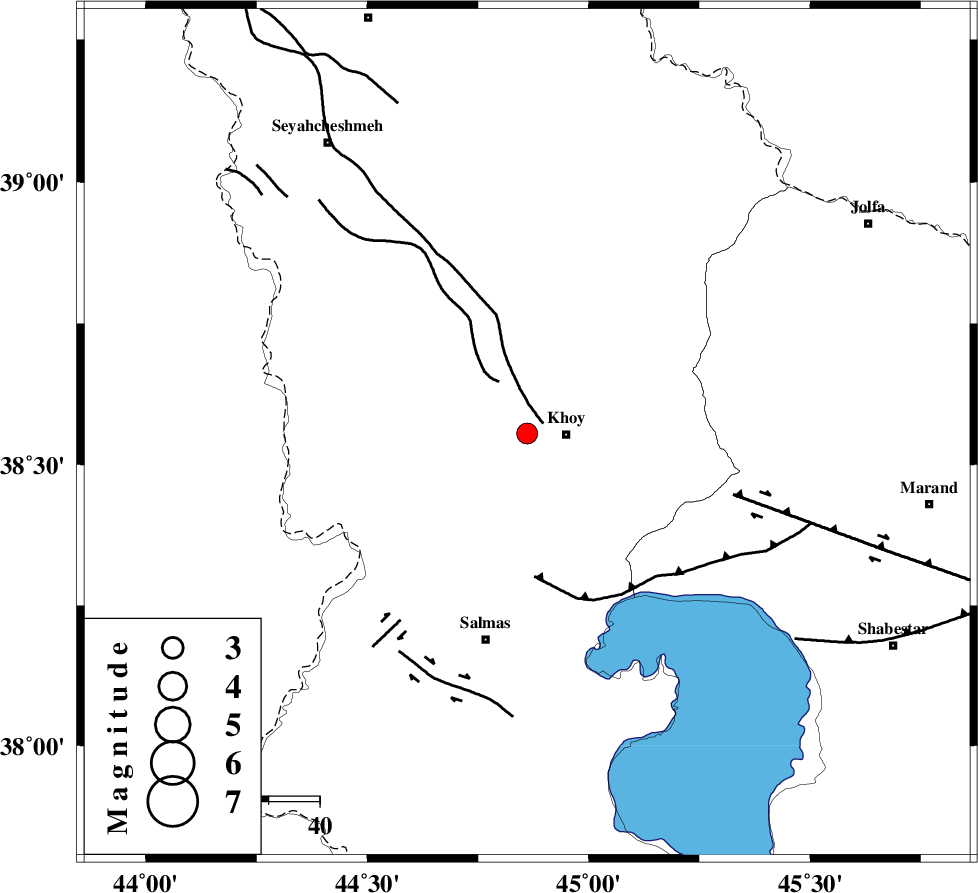

| Location | Lat:38.555 Lon: 44.861 |
| Region | Azarbaijan Gharbi Province, 8 km of Khoy |
Nearest Cities |
|
| 5 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 8 km North of Khoy, Azarbaijan Gharbi Province | |
| 13 km North of Quruq, Azarbaijan Gharbi Province | |
| 13 km of Dizaj, Azarbaijan Gharbi Province | |
| 14 km West of Saeedabad, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 4 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 28 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 42 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 177879 | IIEES SC | MRD | Z | 5 | 1 | 2023-01-19 23:07:31 | 2023-01-21 09:07:00 | n |
| 177880 | IIEES SC | GNI | Z | 0.6 | 1 | 2023-01-19 23:07:47 | 2023-01-21 09:07:00 | n |
| 177881 | IIEES SC | MAHB | Z | 0.2 | 1 | 2023-01-19 23:07:53 | 2023-01-21 09:07:00 | n |
| 177882 | IIEES SC | GURO | Z | 0.1 | 1 | 2023-01-19 23:07:57 | 2023-01-21 09:07:00 | n |
| 177883 | IIEES SC | SRSL | Z | 0.08 | 1 | 2023-01-19 23:07:59 | 2023-01-21 09:07:00 | n |
| 177884 | IIEES SC | GRMI | Z | 0.1 | 1 | 2023-01-19 23:08:00 | 2023-01-21 09:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-19 23:07:31 | 0 | y | 0 | 75 | 77 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-19 23:07:33 | -0.9 | y | 0 | 90 | 350 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-01-19 23:07:41 | -0.3 | y | 0 | 138 | 135 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-19 23:07:47 | 0 | y | 0 | 177 | 357 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-19 23:07:53 | 0.1 | y | 0 | 212 | 159 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-19 23:07:57 | 0.3 | y | 0 | 247 | 270 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-01-19 23:07:59 | -0.5 | y | 0 | 265 | 169 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-19 23:08:00 | 0.7 | y | 0 | 265 | 84 | ||
