Magnitude |
:3.3 |
| Date & Time (UTC) | 2023-01-19 23:00:04.7 |
| Date & Time (Local) | 1401/10/30 02:30:04.7 |
| Location | Lat:38.565 Lon: 44.882 |
| Region | Azarbaijan Gharbi Province, 6 km of Khoy |
Nearest Cities |
|
| 6 km North of Khoy, Azarbaijan Gharbi Province | |
| 8 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 11 km of Dizaj, Azarbaijan Gharbi Province | |
| 12 km North West of Saeedabad, Azarbaijan Gharbi Province | |
| 13 km North of Quruq, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |

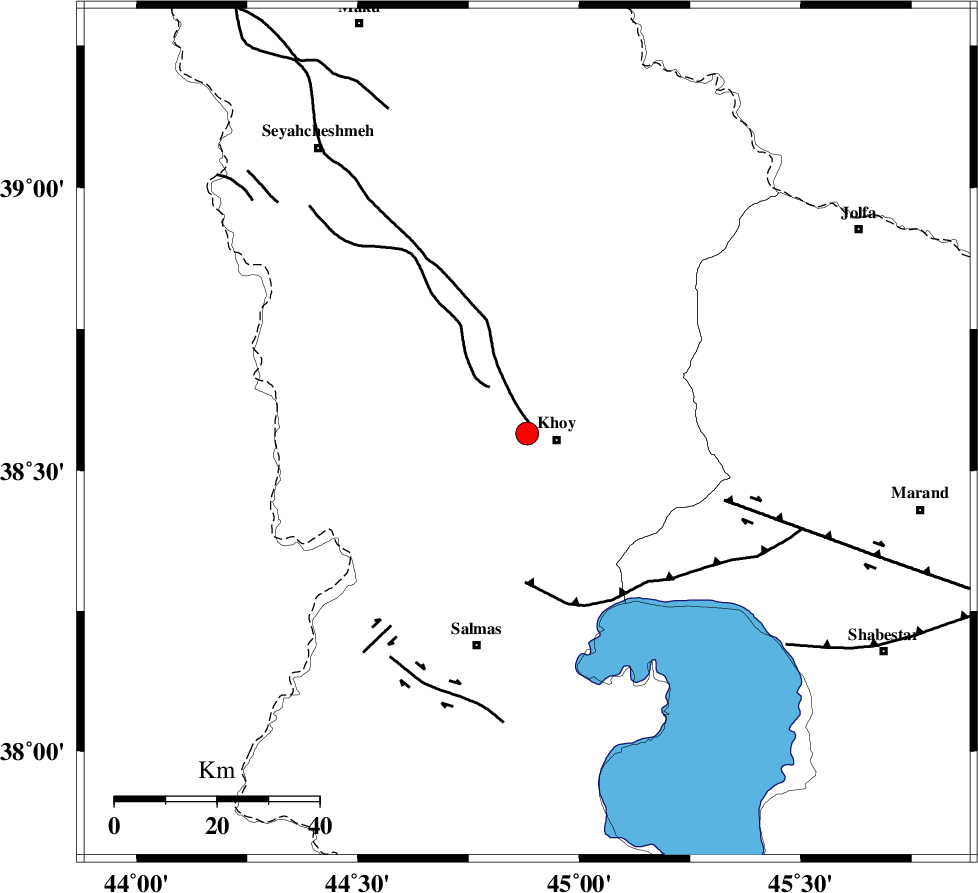

Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 2 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 29 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 41 km | |
| Number of Phases | 15 |
| RMS | 0.5 |
| Number of Stations | 15 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 177830 | IIEES SC | MRD | Z | 7 | 1 | 2023-01-19 23:00:17 | 2023-01-21 06:11:00 | n |
| 177831 | IIEES SC | MAKU | Z | 1 | 1 | 2023-01-19 23:00:19 | 2023-01-21 06:11:00 | n |
| 177832 | IIEES SC | GNI | Z | 1 | 1 | 2023-01-19 23:00:33 | 2023-01-21 06:11:00 | n |
| 177833 | IIEES SC | MAHB | Z | 0.3 | 1 | 2023-01-19 23:00:38 | 2023-01-21 06:11:00 | n |
| 177834 | IIEES SC | GRMI | Z | 0.3 | 1 | 2023-01-19 23:00:46 | 2023-01-21 06:11:00 | n |
| 177835 | IIEES SC | SRSL | Z | 0.2 | 1 | 2023-01-19 23:00:45 | 2023-01-21 06:11:00 | n |
| 177836 | IIEES SC | ZNJK | Z | 0.04 | 1 | 2023-01-19 23:01:01 | 2023-01-21 06:11:00 | n |
| 177837 | IIEES SC | DHR | Z | 0.07 | 1 | 2023-01-19 23:01:09 | 2023-01-21 06:11:00 | n |
| 177838 | IIEES SC | KCHF | Z | 0.05 | 1 | 2023-01-19 23:01:17 | 2023-01-21 06:11:00 | n |
| 177839 | IIEES SC | ILBA | Z | 0.02 | 1 | 2023-01-19 23:01:22 | 2023-01-21 06:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-19 23:00:17 | 0.2 | y | 0 | 73 | 77 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-19 23:00:19 | -0.8 | y | 0 | 89 | 349 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-01-19 23:00:27 | -0.3 | y | 0 | 138 | 136 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-19 23:00:33 | 0.2 | y | 0 | 176 | 356 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-19 23:00:38 | -0.5 | y | 0 | 212 | 160 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-19 23:00:44 | 0.2 | y | 0 | 248 | 270 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-19 23:00:46 | 0.4 | y | 0 | 264 | 84 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-01-19 23:00:45 | -0.1 | y | 0 | 266 | 169 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-01-19 23:00:56 | 4.1 | n | 4 | 319 | 340 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-01-19 23:01:01 | -0.5 | y | 0 | 396 | 122 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-01-19 23:01:09 | 0.8 | y | 0 | 450 | 163 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-01-19 23:01:11 | -0.6 | y | 0 | 472 | 113 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-01-19 23:01:14 | 0.8 | y | 0 | 492 | 134 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-01-19 23:01:17 | 0.8 | y | 0 | 514 | 158 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-01-19 23:01:22 | -0.6 | y | 0 | 561 | 168 | ||
