Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-06-19 15:13:31.1 |
| Date & Time (Local) | 1399/3/30 19:43:31.1 |

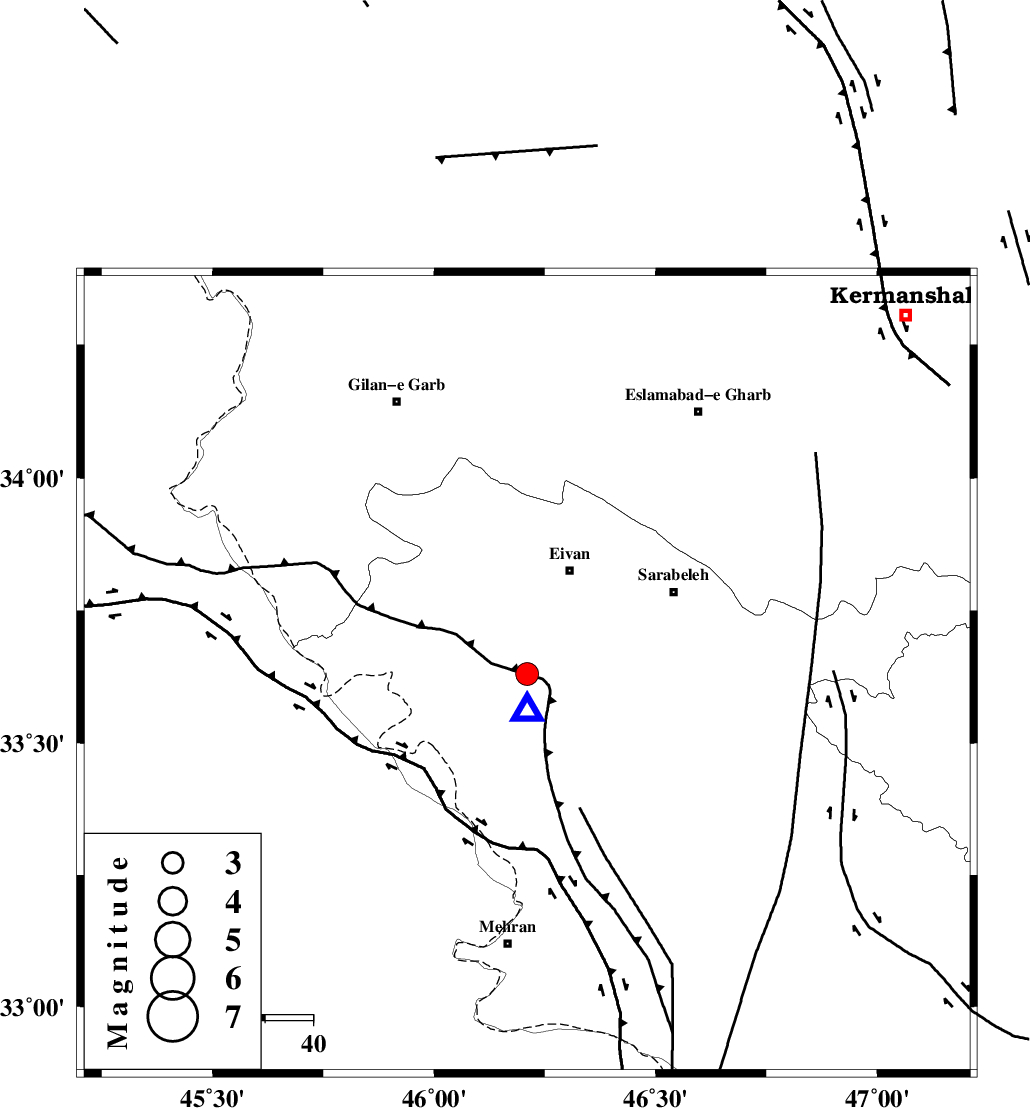

| Location | Lat:33.63 Lon: 46.21 |
| Region | Ilam Province, 20 km -West of Ilam |
Nearest Cities |
|
| 8 km of Chavar, Ilam Province | |
| 18 km North of Salehabad, Ilam Province | |
| 20 km West of Ilam, Ilam Province | |
| 23 km South of Eyvan, Ilam Province | |
| 32 km North West of Mehr, Ilam Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF7 (Length: 99 km) , Distance to epicenter: 7 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 33 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 46 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154822 | IIEES SC | ILBA | Z | 1800 | 1 | 2020-06-19 15:13:36 | 2020-06-21 03:02:00 | n |
| 154823 | IIEES SC | SNGE | Z | 220 | 1 | 2020-06-19 15:14:38 | 2020-06-21 03:02:00 | n |
| 154824 | IIEES SC | SRSL | Z | 280 | 1 | 2020-06-19 15:14:57 | 2020-06-21 03:02:00 | n |
| 154825 | IIEES SC | GTMR | Z | 39 | 1 | 2020-06-19 15:15:17 | 2020-06-21 03:02:00 | n |
| 154826 | IIEES SC | KHMZ | Z | 14 | 1 | 2020-06-19 15:15:34 | 2020-06-21 03:02:00 | n |
| 154827 | IIEES SC | MAHB | Z | 200 | 1 | 2020-06-19 15:15:16 | 2020-06-21 03:02:00 | n |
| 154828 | IIEES SC | ASAO | Z | 26 | 1 | 2020-06-19 15:15:39 | 2020-06-21 03:02:00 | n |
| 154829 | IIEES SC | GHVR | Z | 1300 | 1 | 2020-06-19 15:16:26 | 2020-06-21 03:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2020-06-19 15:13:32 | -0.2 | y | 0 | 220 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-06-19 15:14:02 | -0.3 | y | 189 | 33 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-06-19 15:14:15 | -0.5 | y | 300 | 346 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-06-19 15:14:16 | 0 | y | 300 | 115 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-06-19 15:14:22 | -0.2 | y | 344 | 88 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-06-19 15:14:23 | 0.1 | y | 355 | 353 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-06-19 15:14:28 | 4.4 | n | 4 | 366 | 127 | ||
| IIEES SC | ASAO | Z | IP | I | 2020-06-19 15:14:24 | -0.2 | y | 366 | 74 | |||
| IIEES SC | QABG | Z | IP | I | 2020-06-19 15:14:27 | 0.3 | y | 389 | 53 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-06-19 15:14:35 | 5.8 | n | 4 | 411 | 34 | ||
| IIEES SC | AZR | Z | IP | I | 2020-06-19 15:14:35 | 0.6 | y | 444 | 357 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-06-19 15:14:38 | 0.5 | y | 478 | 78 | |||
