Magnitude |
:3.2 |
| Date & Time (UTC) | 2020-06-16 00:34:39.3 |
| Date & Time (Local) | 1399/3/27 05:04:39.3 |

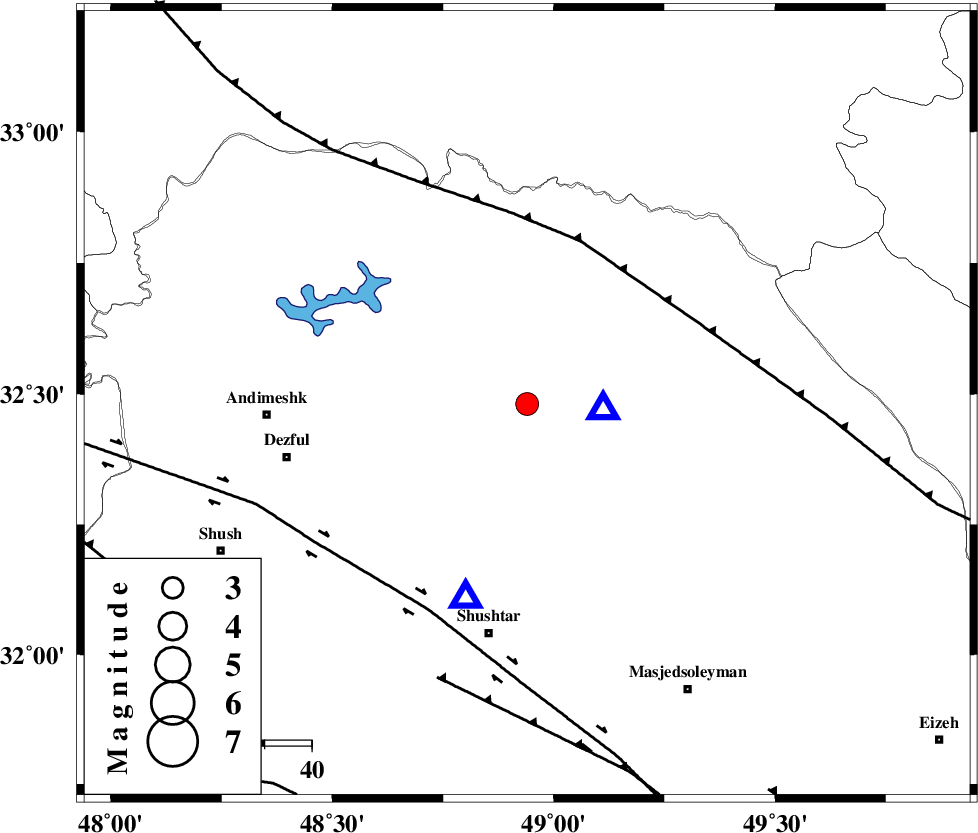

| Location | Lat:32.48 Lon: 48.94 |
| Region | Khoozestan Province, 19 km -West of Lali |
Nearest Cities |
|
| 10 km East of Sardasht, Khoozestan Province | |
| 19 km North West of Lali, Khoozestan Province | |
| 28 km North East of Mahur berenji, Khoozestan Province | |
| 29 km North East of Gatvand, Khoozestan Province | |
| 29 km North West of Jaefarabad, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 21 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 21 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 24 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154668 | IIEES SC | GTMR | Z | 10000 | 1 | 2020-06-16 00:34:45 | 2020-06-16 07:46:00 | n |
| 154669 | IIEES SC | AMIS | Z | 850 | 1 | 2020-06-16 00:35:12 | 2020-06-16 07:46:00 | n |
| 154670 | IIEES SC | KHMZ | Z | 120 | 1 | 2020-06-16 00:35:33 | 2020-06-16 07:46:00 | n |
| 154671 | IIEES SC | ASAO | Z | 88 | 1 | 2020-06-16 00:35:58 | 2020-06-16 07:46:00 | n |
| 154672 | IIEES SC | ILBA | Z | 29 | 1 | 2020-06-16 00:36:15 | 2020-06-16 07:46:00 | n |
| 154673 | IIEES SC | KLNJ | Z | 73 | 1 | 2020-06-16 00:36:20 | 2020-06-16 07:46:00 | n |
| 154674 | IIEES SC | GHVR | Z | 990 | 1 | 2020-06-16 00:36:06 | 2020-06-16 07:46:00 | n |
| 154675 | IIEES SC | SNGE | Z | 34 | 1 | 2020-06-16 00:36:19 | 2020-06-16 07:46:00 | n |
| 154676 | IIEES SC | NASN | Z | 14 | 1 | 2020-06-16 00:36:29 | 2020-06-16 07:46:00 | n |
| 154677 | IIEES SC | CHTH | Z | 12 | 1 | 2020-06-16 00:36:46 | 2020-06-16 07:46:00 | n |
| 154678 | IIEES SC | ZNJK | Z | 5.3 | 1 | 2020-06-16 00:37:02 | 2020-06-16 07:46:00 | n |
| 154679 | IIEES SC | SRSL | Z | 16 | 1 | 2020-06-16 00:36:48 | 2020-06-16 07:46:00 | n |
| 154680 | IIEES SC | GLO | Z | 16 | 1 | 2020-06-16 00:38:12 | 2020-06-16 07:46:00 | n |
| 154681 | IIEES SC | GLO | Z | 14 | 0.83 | 2020-06-16 00:36:08 | 2020-06-16 07:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2020-06-16 00:34:42 | -0.3 | y | 11 | 93 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-06-16 00:34:55 | 0 | y | 100 | 160 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-06-16 00:35:07 | 0.3 | y | 166 | 34 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-06-16 00:35:19 | 0.5 | y | 255 | 24 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-06-16 00:35:22 | -0.1 | y | 289 | 296 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-06-16 00:35:25 | 0.4 | y | 300 | 123 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-06-16 00:35:26 | 1 | y | 311 | 44 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-06-16 00:35:28 | 0.4 | y | 322 | 333 | |||
| IIEES SC | QABG | Z | IP | I | 2020-06-16 00:35:33 | 0.4 | y | 366 | 9 | |||
| IIEES SC | NASN | Z | IP | I | 2020-06-16 00:35:32 | -0.4 | y | 366 | 84 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-16 00:35:40 | -0.6 | y | 433 | 28 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-06-16 00:35:45 | 0.2 | y | 467 | 357 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-06-16 00:35:53 | 0.5 | y | 522 | 322 | |||
| IIEES SC | GLO | Z | IP | I | 2020-06-16 00:36:06 | 0.6 | y | 633 | 45 | |||
| IIEES SC | GLO | Z | IVmB_BB | 2020-06-16 00:36:07 | y | 1 | 633 | 45 | ||||
