Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 :3.4
Date & Time (UTC) 2020-03-07 12:23:34.7
Date & Time (Local) 1398/12/17  15:53:34.7
Location Lat:34.37 Lon: 45.82
Region Kermanshah Province, 12 km of Sar-e pol-e zahab
Nearest Cities
7 km North of Chub baghan, Kermanshah Province
10 km West of Tarkveys, Kermanshah Province
12 km of Sar-e pol-e zahab, Kermanshah Province
13 km South of Qareh belagh, Kermanshah Province
22 km East of Seyyed sohrab, Kermanshah Province
Depth 10 km
Agency

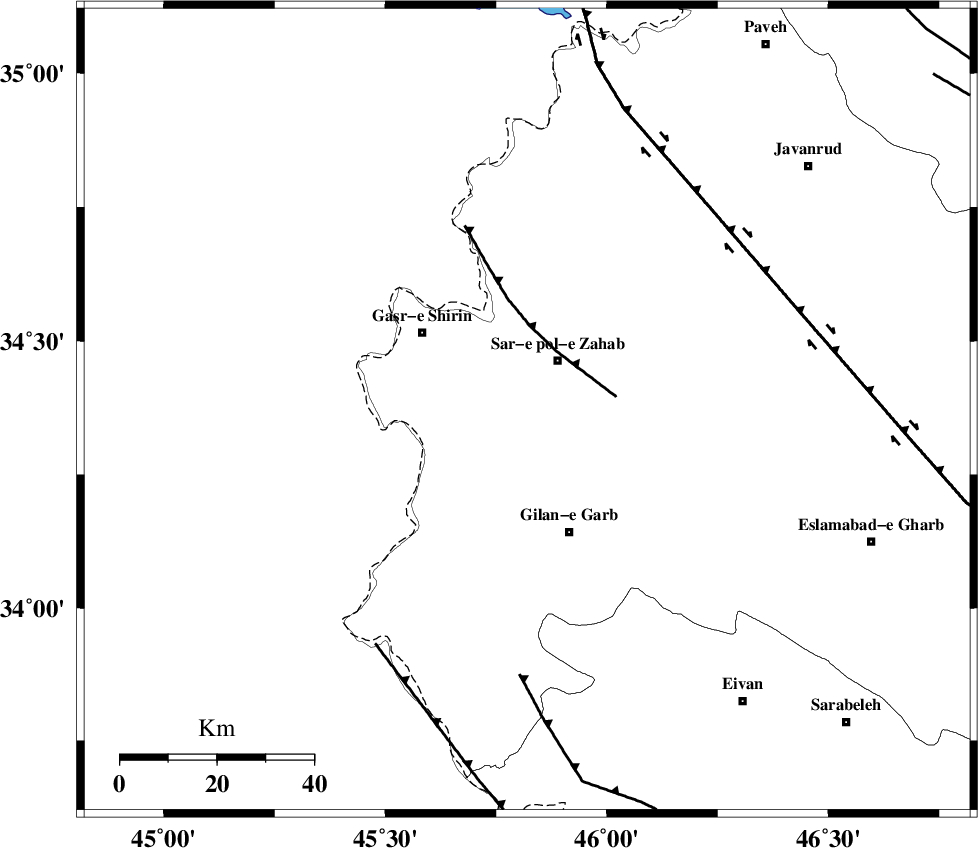

Faults within 150 km:
MFF8 (Length: 48 km) , Distance to epicenter: 14 km
MFF7 (Length: 99 km) , Distance to epicenter: 55 km
HZF4 (Length: 492 km) , Distance to epicenter: 57 km
Number of Phases 9
RMS 0.3
Number of Stations 9
Error in Latitude >4 km
Error in Longitude 0 km
Error in Depth 8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
152337IIEES SCSRSLZ 39012020-03-07 12:24:422020-03-09 12:34:00n
152338IIEES SCMAHBZ 22012020-03-07 12:24:592020-03-09 12:34:00n
152339IIEES SCZNJKZ 3.912020-03-07 12:26:132020-03-09 12:34:00n
152340IIEES SCGTMRZ 3512020-03-07 12:25:312020-03-09 12:34:00n
152341IIEES SCASAOZ 2912020-03-07 12:25:452020-03-09 12:34:00n
152342IIEES SCKHMZZ 2012020-03-07 12:25:302020-03-09 12:34:00n
152343IIEES SCGHVRZ 36012020-03-07 12:25:202020-03-09 12:34:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCSRSLN IS I2020-03-07 12:24:340.1y211350
IIEES SCSRSLZ IP I2020-03-07 12:24:08-0.4y211350
IIEES SCMAHBZ IP I2020-03-07 12:24:160.3y266358
IIEES SCZNJKZ IP I2020-03-07 12:24:280.2y36646
IIEES SCGTMRZ IP I2020-03-07 12:24:290.1y366125
IIEES SCQABGZ IP I2020-03-07 12:24:29-0.4y37867
IIEES SCASAOZ IP I2020-03-07 12:24:31-0.2y38987
IIEES SCKHMZZ IP I2020-03-07 12:24:31-0.3y389100
IIEES SCGHVRZ IP I2020-03-07 12:24:451y50089
