Magnitude
 :3.8
Date & Time (UTC) 2020-03-09 04:45:27.3
Date & Time (Local) 1398/12/19  08:15:27.3

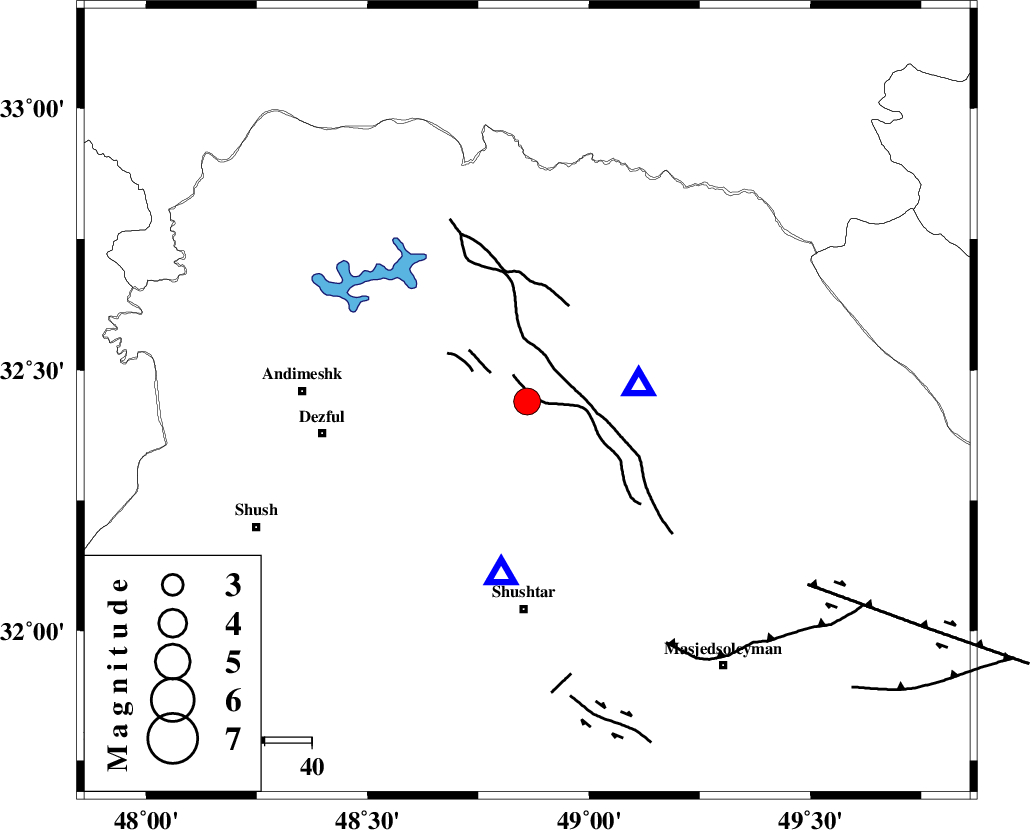

Location Lat:32.44 Lon: 48.86
Region Khoozestan Province, 24 km -West of Lali
Nearest Cities
7 km of Sardasht, Khoozestan Province
19 km North East of Mahur berenji, Khoozestan Province
22 km North of Gatvand, Khoozestan Province
24 km North West of Lali, Khoozestan Province
27 km North of Samaleh, Khoozestan Province
Depth 12 km
Agency
Faults within 150 km:
DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 13 km
BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 27 km
MFF2 (Length: 205 km) , Distance to epicenter: 29 km
Number of Phases 14
RMS 0.3
Number of Stations 14
Error in Latitude >2 km
Error in Longitude 0 km
Error in Depth 2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
152322IIEES SCGTMRZ 880012020-03-09 04:45:362020-03-09 09:22:00n
152323IIEES SCAMISZ 190012020-03-09 04:46:062020-03-09 09:22:00n
152324IIEES SCKHMZZ 110012020-03-09 04:46:212020-03-09 09:22:00n
152325IIEES SCASAOZ 75012020-03-09 04:46:472020-03-09 09:22:00n
152326IIEES SCKLNJZ 22012020-03-09 04:47:142020-03-09 09:22:00n
152327IIEES SCGHVRZ 44012020-03-09 04:48:222020-03-09 09:22:00n
152328IIEES SCQABGZ 3312020-03-09 04:47:242020-03-09 09:22:00n
152329IIEES SCNASNZ 7712020-03-09 04:47:192020-03-09 09:22:00n
152330IIEES SCCHTHZ 5212020-03-09 04:48:192020-03-09 09:22:00n
152331IIEES SCDAMVZ 3.412020-03-09 04:48:292020-03-09 09:22:00n
152332IIEES SCYZKHZ 2912020-03-09 04:48:112020-03-09 09:22:00n
152333IIEES SCGRMIZ 1612020-03-09 04:49:022020-03-09 09:22:00n
152334IIEES SCGRMIZ 191.442020-03-09 04:47:322020-03-09 09:22:00n
152335IIEES SCTABSZ 2.112020-03-09 04:49:162020-03-09 09:22:00n
152336IIEES SCTABSZ 9.41.012020-03-09 04:47:232020-03-09 09:22:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGTMRZ IP I2020-03-09 04:45:32-0.1y2283
IIEES SCAMISZ IP I2020-03-09 04:45:430.1y100155
IIEES SCKHMZZ IP I2020-03-09 04:45:560.3y17736
IIEES SCASAOZ IP I2020-03-09 04:46:070.4y25525
IIEES SCKLNJZ IP I2020-03-09 04:46:13-0.1y300122
IIEES SCGHVRZ IP I2020-03-09 04:46:151.1y32244
IIEES SCQABGZ IP I2020-03-09 04:46:210.1y36610
IIEES SCNASNZ IP I2020-03-09 04:46:220.1y37884
IIEES SCCHTHZ IP I2020-03-09 04:46:29-0.1y43329
IIEES SCDAMVZ IP I2020-03-09 04:46:31-0.2y45539
IIEES SCZNJKZ IP I2020-03-09 04:46:33-0.5y467358
IIEES SCYZKHZ IP I2020-03-09 04:46:42-0.3y54491
IIEES SCGRMIZ IP I2020-03-09 04:47:03-0.7y711353
IIEES SCTABSZ IP I2020-03-09 04:47:11-0.8y77880
