Magnitude |
:3.5 |
| Date & Time (UTC) | 2020-02-20 21:38:30.9 |
| Date & Time (Local) | 1398/12/2 01:08:30.9 |

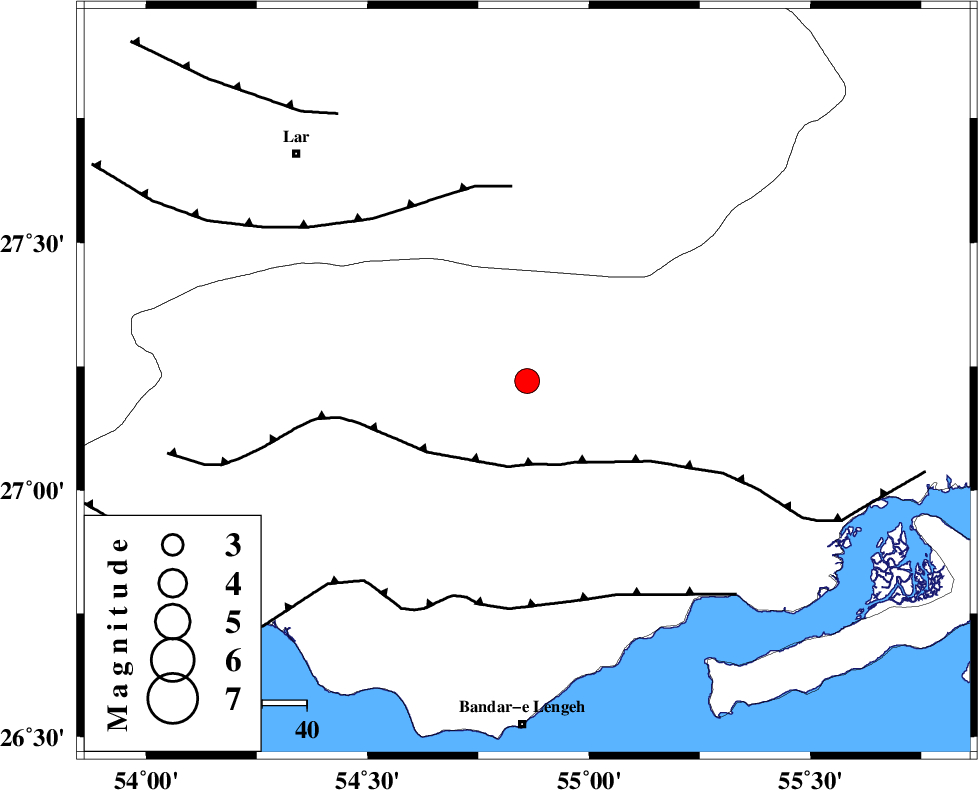

| Location | Lat:27.22 Lon: 54.86 |
| Region | Hormozgan Province, 49 km -East of Bastak |
Nearest Cities |
|
| 49 km North East of Bastak, Hormozgan Province | |
| 61 km North East of Jenah, Hormozgan Province | |
| 71 km South East of Latifi, Fars Province | |
| 72 km South East of Lar, Fars Province | |
| 77 km North of Bandar-e lengeh, Hormozgan Province | |
| Depth | 31 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 19 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 44 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 50 km | |
| Number of Phases | 12 |
| RMS | 0.2 |
| Number of Stations | 12 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 152044 | IIEES SC | BNDS | Z | 710 | 1 | 2020-02-20 21:39:26 | 2020-02-22 02:03:00 | n |
| 152045 | IIEES SC | GHIR | Z | 46 | 1 | 2020-02-20 21:39:40 | 2020-02-22 02:03:00 | n |
| 152046 | IIEES SC | AHRM | Z | 14 | 1 | 2020-02-20 21:40:50 | 2020-02-22 02:03:00 | n |
| 152047 | IIEES SC | YZKH | Z | 12 | 1 | 2020-02-20 21:41:30 | 2020-02-22 02:03:00 | n |
| 152048 | IIEES SC | YZKH | Z | 12 | 0.68 | 2020-02-20 21:40:12 | 2020-02-22 02:03:00 | n |
| 152049 | IIEES SC | CHBR | Z | 14 | 1 | 2020-02-20 21:41:56 | 2020-02-22 02:03:00 | n |
| 152050 | IIEES SC | CHBR | Z | 13 | 0.55 | 2020-02-20 21:39:54 | 2020-02-22 02:03:00 | n |
| 152051 | IIEES SC | NASN | Z | 6.9 | 1 | 2020-02-20 21:41:30 | 2020-02-22 02:03:00 | n |
| 152052 | IIEES SC | NASN | Z | 6.5 | 0.65 | 2020-02-20 21:40:09 | 2020-02-22 02:03:00 | n |
| 152053 | IIEES SC | BSRN | Z | 8 | 1 | 2020-02-20 21:41:54 | 2020-02-22 02:03:00 | n |
| 152054 | IIEES SC | BSRN | Z | 6.8 | 0.78 | 2020-02-20 21:40:25 | 2020-02-22 02:03:00 | n |
| 152055 | IIEES SC | GTMR | Z | 13 | 1 | 2020-02-20 21:41:49 | 2020-02-22 02:03:00 | n |
| 152056 | IIEES SC | GTMR | Z | 3.9 | 0.51 | 2020-02-20 21:40:32 | 2020-02-22 02:03:00 | n |
| 152057 | IIEES SC | KHMZ | Z | 7 | 1 | 2020-02-20 21:41:53 | 2020-02-22 02:03:00 | n |
| 152058 | IIEES SC | KHMZ | Z | 4.3 | 1.1 | 2020-02-20 21:40:50 | 2020-02-22 02:03:00 | n |
| 152059 | IIEES SC | SHRT | Z | 3.5 | 1 | 2020-02-20 21:42:28 | 2020-02-22 02:03:00 | n |
| 152060 | IIEES SC | SHRT | Z | 3 | 1.08 | 2020-02-20 21:40:27 | 2020-02-22 02:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | IP | I | 2020-02-20 21:38:52 | 0 | y | 133 | 81 | |||
| IIEES SC | GHIR | Z | IP | I | 2020-02-20 21:39:04 | 0.2 | y | 222 | 302 | |||
| IIEES SC | AHRM | Z | IP | I | 2020-02-20 21:39:26 | 0 | y | 400 | 297 | |||
| IIEES SC | KLNJ | N | IP | I | 2020-02-20 21:39:42 | 0 | y | 522 | 323 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-02-20 21:39:48 | 0 | y | 578 | 357 | |||
| IIEES SC | CHBR | Z | IP | I | 2020-02-20 21:39:49 | -0.2 | y | 589 | 108 | |||
| IIEES SC | NASN | Z | IP | I | 2020-02-20 21:39:57 | -0.6 | y | 644 | 342 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-02-20 21:40:00 | 0.3 | y | 667 | 38 | |||
| IIEES SC | SRVN | Z | IP | I | 2020-02-20 21:40:10 | 0.2 | y | 745 | 88 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-02-20 21:40:15 | -1.3 | y | 800 | 316 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-02-20 21:40:23 | -0.6 | y | 867 | 327 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-02-20 21:40:26 | -0.1 | y | 878 | 36 | |||
