Magnitude |
:3.6 |
| Date & Time (UTC) | 2020-02-02 08:26:53.1 |
| Date & Time (Local) | 1398/11/13 11:56:53.1 |

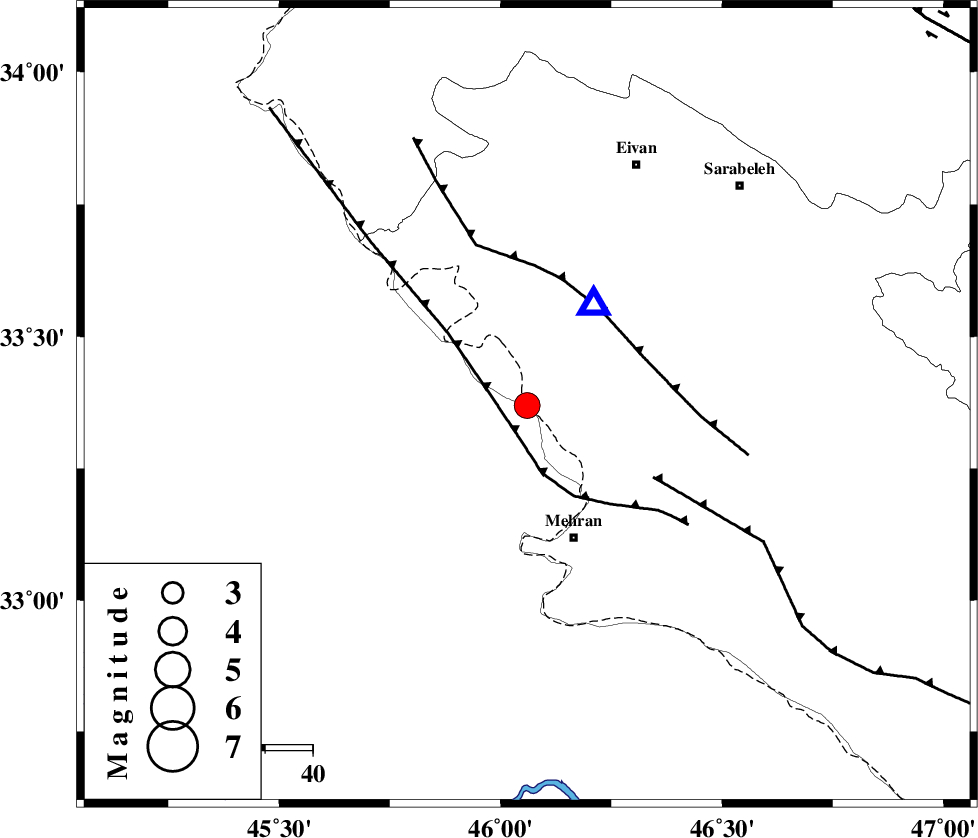

| Location | Lat:33.37 Lon: 46.06 |
| Region | Ilam Province, 29 km North-West of Mehran |
Nearest Cities |
|
| 16 km South West of Salehabad, Ilam Province | |
| 29 km North West of Mehran, Ilam Province | |
| 35 km North West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 39 km West of Mehr, Ilam Province | |
| 40 km South West of Chavar, Ilam Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 5 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 25 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 31 km | |
| Number of Phases | 11 |
| RMS | 0.8 |
| Number of Stations | 11 |
| Error in Latitude | >8 km |
| Error in Longitude | 0 km |
| Error in Depth | 17 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 151620 | IIEES SC | SNGE | Z | 250 | 1 | 2020-02-02 08:28:06 | 2020-02-03 09:56:00 | n |
| 151621 | IIEES SC | GTMR | Z | 110 | 1 | 2020-02-02 08:28:32 | 2020-02-03 09:56:00 | n |
| 151622 | IIEES SC | SRSL | Z | 110 | 1 | 2020-02-02 08:28:38 | 2020-02-03 09:56:00 | n |
| 151623 | IIEES SC | AMIS | Z | 87 | 1 | 2020-02-02 08:28:30 | 2020-02-03 09:56:00 | n |
| 151624 | IIEES SC | KHMZ | Z | 41 | 1 | 2020-02-02 08:28:52 | 2020-02-03 09:56:00 | n |
| 151625 | IIEES SC | ASAO | Z | 51 | 1 | 2020-02-02 08:29:00 | 2020-02-03 09:56:00 | n |
| 151626 | IIEES SC | ZNJK | Z | 4.6 | 1 | 2020-02-02 08:29:52 | 2020-02-03 09:56:00 | n |
| 151627 | IIEES SC | GHVR | Z | 36 | 1 | 2020-02-02 08:29:30 | 2020-02-03 09:56:00 | n |
| 151628 | IIEES SC | KLNJ | Z | 21 | 1 | 2020-02-02 08:29:19 | 2020-02-03 09:56:00 | n |
| 151629 | IIEES SC | KLNJ | Z | 7.9 | 0.57 | 2020-02-02 08:28:35 | 2020-02-03 09:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SNGE | N | IS | I | 2020-02-02 08:27:56 | -0.3 | y | 222 | 32 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-02-02 08:27:32 | 2.9 | y | 222 | 32 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-02-02 08:27:38 | 0 | y | 300 | 109 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-02-02 08:27:40 | -0.6 | y | 322 | 350 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-02-02 08:27:45 | 0.2 | y | 355 | 122 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-02-02 08:27:46 | -0.6 | y | 366 | 84 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-02-02 08:27:50 | 0.5 | y | 389 | 70 | |||
| IIEES SC | QABG | Z | IP | I | 2020-02-02 08:27:52 | -0.2 | y | 411 | 51 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-02-02 08:27:55 | -0.1 | y | 433 | 33 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-02-02 08:28:02 | 0.1 | y | 500 | 76 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-02-02 08:28:12 | -1.1 | y | 578 | 117 | |||
