Magnitude |
:4.4 |
| Date & Time (UTC) | 2020-01-28 06:52:03.2 |
| Date & Time (Local) | 1398/11/8 10:22:03.2 |

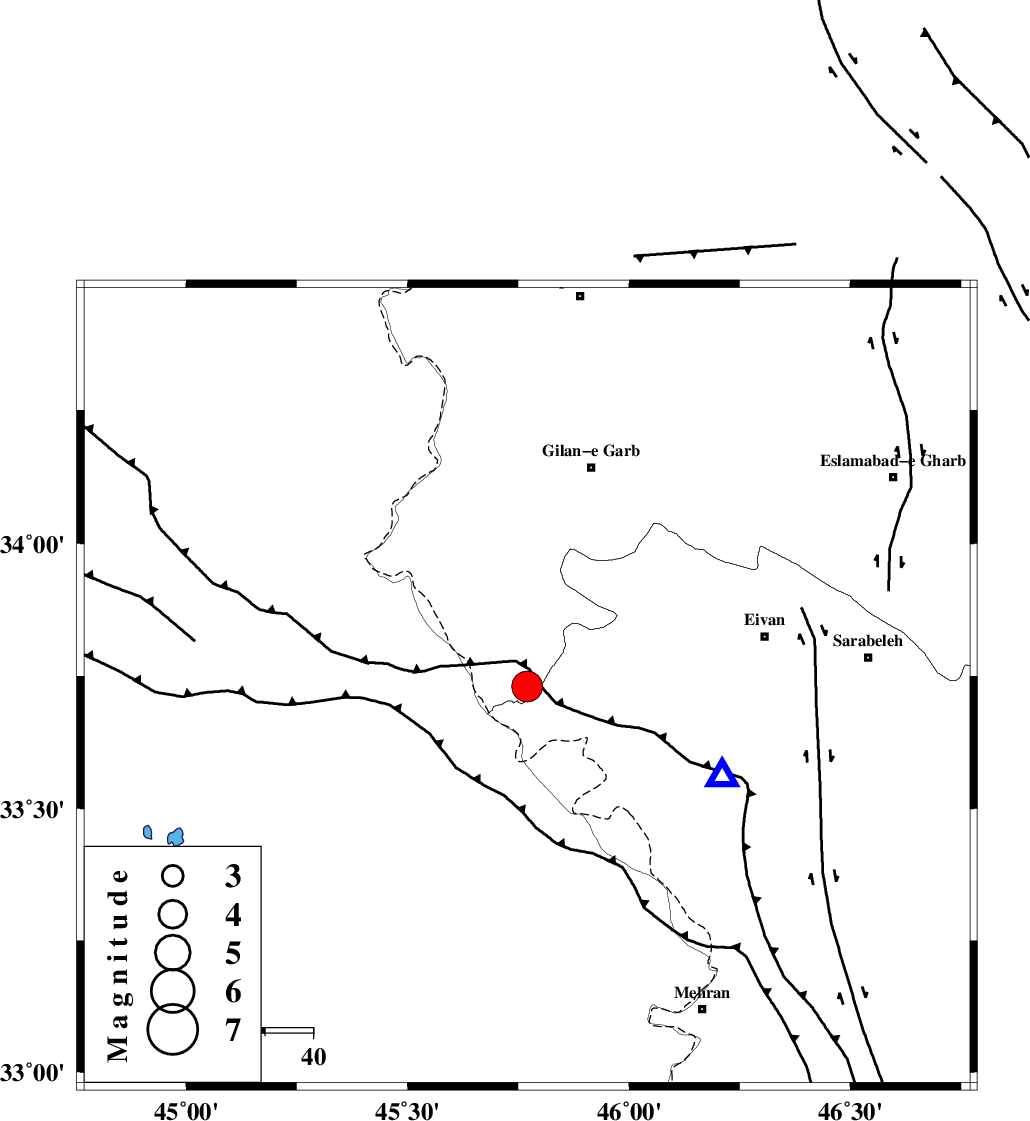

| Location | Lat:33.73 Lon: 45.77 |
| Region | Kermanshah Province, 48 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 20 km South East of Sumar, Kermanshah Province | |
| 38 km South West of Nian, Kermanshah Province | |
| 41 km South West of Teran, Ilam Province | |
| 44 km South West of Zarneh, Ilam Province | |
| 46 km North West of Chavar, Ilam Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 8 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 11 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 77 km | |
| Number of Phases | 20 |
| RMS | 0.4 |
| Number of Stations | 16 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 484 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 151419 | IIEES SC | SRSL | Z | 4200 | 1 | 2020-01-28 06:53:32 | 2020-01-28 11:11:00 | n |
| 151420 | IIEES SC | GTMR | Z | 530 | 1 | 2020-01-28 06:54:04 | 2020-01-28 11:11:00 | n |
| 151421 | IIEES SC | KHMZ | Z | 350 | 1 | 2020-01-28 06:54:16 | 2020-01-28 11:11:00 | n |
| 151422 | IIEES SC | ASAO | Z | 480 | 1 | 2020-01-28 06:54:18 | 2020-01-28 11:11:00 | n |
| 151423 | IIEES SC | ZNJK | Z | 4 | 1 | 2020-01-28 06:55:15 | 2020-01-28 11:11:00 | n |
| 151424 | IIEES SC | GHVR | Z | 320 | 1 | 2020-01-28 06:54:49 | 2020-01-28 11:11:00 | n |
| 151425 | IIEES SC | THKV | Z | 110 | 1 | 2020-01-28 06:54:54 | 2020-01-28 11:11:00 | n |
| 151426 | IIEES SC | GRMI | Z | 88 | 1 | 2020-01-28 06:55:11 | 2020-01-28 11:11:00 | n |
| 151427 | IIEES SC | GRMI | Z | 46 | 0.65 | 2020-01-28 06:53:35 | 2020-01-28 11:11:00 | n |
| 151428 | IIEES SC | DAMV | Z | 3.9 | 1 | 2020-01-28 06:54:20 | 2020-01-28 11:11:00 | n |
| 151429 | IIEES SC | DAMV | Z | 130 | 1.44 | 2020-01-28 06:53:51 | 2020-01-28 11:11:00 | n |
| 151430 | IIEES SC | GLO | Z | 130 | 1 | 2020-01-28 06:55:58 | 2020-01-28 11:11:00 | n |
| 151431 | IIEES SC | GLO | Z | 66 | 0.84 | 2020-01-28 06:54:01 | 2020-01-28 11:11:00 | n |
| 151432 | IIEES SC | SHRO | Z | 4.8 | 0.84 | 2020-01-28 06:54:21 | 2020-01-28 11:11:00 | n |
| 151433 | IIEES SC | MRVT | Z | 6.7 | 0.92 | 2020-01-28 06:54:23 | 2020-01-28 11:11:00 | n |
| 151434 | IIEES SC | TABS | Z | 21 | 1.21 | 2020-01-28 06:54:25 | 2020-01-28 11:11:00 | n |
| 151435 | IIEES SC | BJRD | Z | 4.7 | 1.12 | 2020-01-28 06:54:40 | 2020-01-28 11:11:00 | n |
| 151436 | IIEES SC | SHRT | Z | 5.9 | 1.88 | 2020-01-28 06:55:24 | 2020-01-28 11:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | IP | I | 2020-01-28 06:52:46 | 0.2 | y | 278 | 354 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-01-28 06:52:53 | -0.4 | y | 344 | 114 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-01-28 06:52:59 | -0.5 | y | 389 | 90 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-01-28 06:53:02 | 0.4 | y | 400 | 77 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-01-28 06:53:03 | -0.1 | y | 422 | 39 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-01-28 06:53:15 | 1 | y | 511 | 81 | |||
| IIEES SC | THKV | Z | IP | I | 2020-01-28 06:53:16 | -0.3 | y | 522 | 63 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-01-28 06:53:19 | 0.2 | y | 544 | 64 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-01-28 06:53:25 | -0.4 | y | 600 | 19 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-01-28 06:53:29 | 2.4 | y | 611 | 70 | |||
| IIEES SC | GLO | Z | IP | I | 2020-01-28 06:53:51 | 0.8 | y | 800 | 67 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-01-28 06:54:12 | 0.5 | y | 967 | 75 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-01-28 06:54:18 | -1.1 | y | 1034 | 65 | |||
| IIEES SC | TABS | Z | IP | I | 2020-01-28 06:54:19 | -2.3 | y | 1056 | 90 | |||
| IIEES SC | BJRD | E | IP | I | 2020-01-28 06:54:31 | -1.4 | y | 1145 | 67 | |||
| IIEES SC | SHRT | E | IP | I | 2020-01-28 06:54:56 | -1.7 | y | 1345 | 90 | |||
| IIEES SC | GRMI | Z | IVmB_BB | 2020-01-28 06:54:00 | y | 1 | 600 | 19 | ||||
| IIEES SC | DAMV | Z | IVmB_BB | 2020-01-28 06:53:50 | y | 1 | 611 | 70 | ||||
| IIEES SC | GLO | Z | IVmB_BB | 2020-01-28 06:54:26 | y | 1 | 800 | 67 | ||||
| IIEES SC | SHRT | Z | IVmB_BB | 2020-01-28 06:55:27 | y | 1 | 1345 | 90 | ||||
