Magnitude |
:3.5 |
| Date & Time (UTC) | 2020-01-11 14:29:18.9 |
| Date & Time (Local) | 1398/10/21 17:59:18.9 |
| Location | Lat:30.46 Lon: 50.67 |
| Region | Kohkiluieh va boyerahmad Province, 16 km North-West of Dogonbadan |
Nearest Cities |
|
| 16 km North West of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 36 km North West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 38 km South East of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 40 km South East of Mansuriyeh, Khoozestan Province | |
| 44 km South East of Behbahan, Khoozestan Province | |
| Depth | 18 km |
| Agency | |

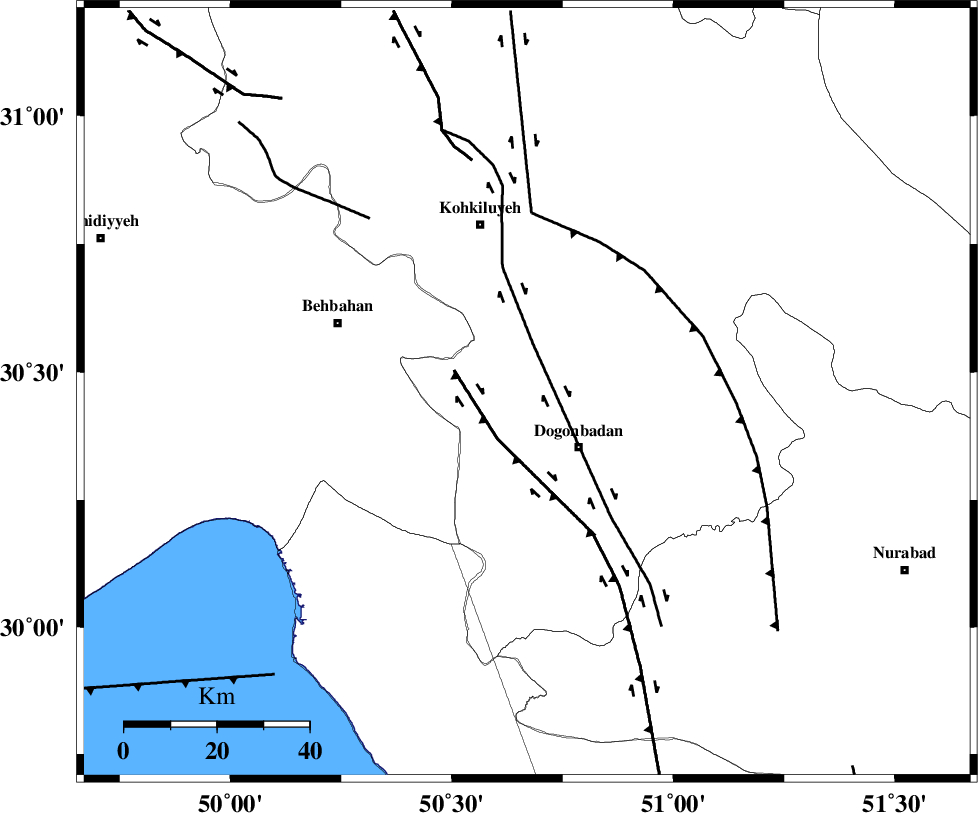

Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 7 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 46 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 46 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 150926 | IIEES SC | KLNJ | Z | 590 | 1 | 2020-01-11 14:29:57 | 2020-01-12 10:45:00 | n |
| 150927 | IIEES SC | AHRM | Z | 85 | 1 | 2020-01-11 14:30:15 | 2020-01-12 10:45:00 | n |
| 150928 | IIEES SC | AMIS | Z | 780 | 1 | 2020-01-11 14:30:15 | 2020-01-12 10:45:00 | n |
| 150929 | IIEES SC | GTMR | Z | 230 | 1 | 2020-01-11 14:30:44 | 2020-01-12 10:45:00 | n |
| 150930 | IIEES SC | NASN | Z | 39 | 1 | 2020-01-11 14:30:46 | 2020-01-12 10:45:00 | n |
| 150931 | IIEES SC | KHMZ | Z | 44 | 1 | 2020-01-11 14:31:21 | 2020-01-12 10:45:00 | n |
| 150932 | IIEES SC | YZKH | Z | 28 | 1 | 2020-01-11 14:31:09 | 2020-01-12 10:45:00 | n |
| 150933 | IIEES SC | GHVR | Z | 230 | 1 | 2020-01-11 14:32:09 | 2020-01-12 10:45:00 | n |
| 150934 | IIEES SC | ASAO | Z | 43 | 1 | 2020-01-11 14:31:44 | 2020-01-12 10:45:00 | n |
| 150935 | IIEES SC | DAMV | Z | 4.4 | 1 | 2020-01-11 14:31:55 | 2020-01-12 10:45:00 | n |
| 150936 | IIEES SC | DAMV | Z | 44 | 0.72 | 2020-01-11 14:30:46 | 2020-01-12 10:45:00 | n |
| 150937 | IIEES SC | SNGE | Z | 19 | 1 | 2020-01-11 14:31:05 | 2020-01-12 10:45:00 | n |
| 150938 | IIEES SC | SNGE | Z | 12 | 0.81 | 2020-01-11 14:31:09 | 2020-01-12 10:45:00 | n |
| 150939 | IIEES SC | GLO | Z | 31 | 1 | 2020-01-11 14:31:09 | 2020-01-12 10:45:00 | n |
| 150940 | IIEES SC | GLO | Z | 50 | 0.7 | 2020-01-11 14:31:02 | 2020-01-12 10:45:00 | n |
| 150941 | IIEES SC | SHRO | Z | 2.2 | 1 | 2020-01-11 14:32:06 | 2020-01-12 10:45:00 | n |
| 150942 | IIEES SC | SHRO | Z | 8.9 | 0.77 | 2020-01-11 14:31:08 | 2020-01-12 10:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | IP | I | 2020-01-11 14:29:36 | -0.2 | y | 111 | 55 | |||
| IIEES SC | AHRM | Z | IP | I | 2020-01-11 14:29:49 | 0 | y | 189 | 161 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-01-11 14:29:49 | 0.4 | y | 189 | 315 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-01-11 14:29:58 | -0.7 | y | 266 | 326 | |||
| IIEES SC | NASN | Z | IP | I | 2020-01-11 14:30:07 | 0.5 | y | 333 | 38 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-01-11 14:30:12 | -0.1 | y | 366 | 350 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-01-11 14:30:19 | 0 | y | 433 | 60 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-01-11 14:30:22 | 0.7 | y | 444 | 7 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-01-11 14:30:23 | 0.5 | y | 455 | 352 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-01-11 14:30:38 | -0.5 | y | 589 | 12 | |||
| IIEES SC | SNGE | E | IP | I | 2020-01-11 14:30:40 | -0.3 | y | 600 | 329 | |||
| IIEES SC | GLO | Z | IP | I | 2020-01-11 14:30:58 | 0.7 | y | 733 | 24 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-01-11 14:31:04 | -0.2 | y | 789 | 39 | |||
| IIEES SC | GLO | Z | IVmB_BB | 2020-01-11 14:31:01 | y | 1 | 733 | 24 | ||||
