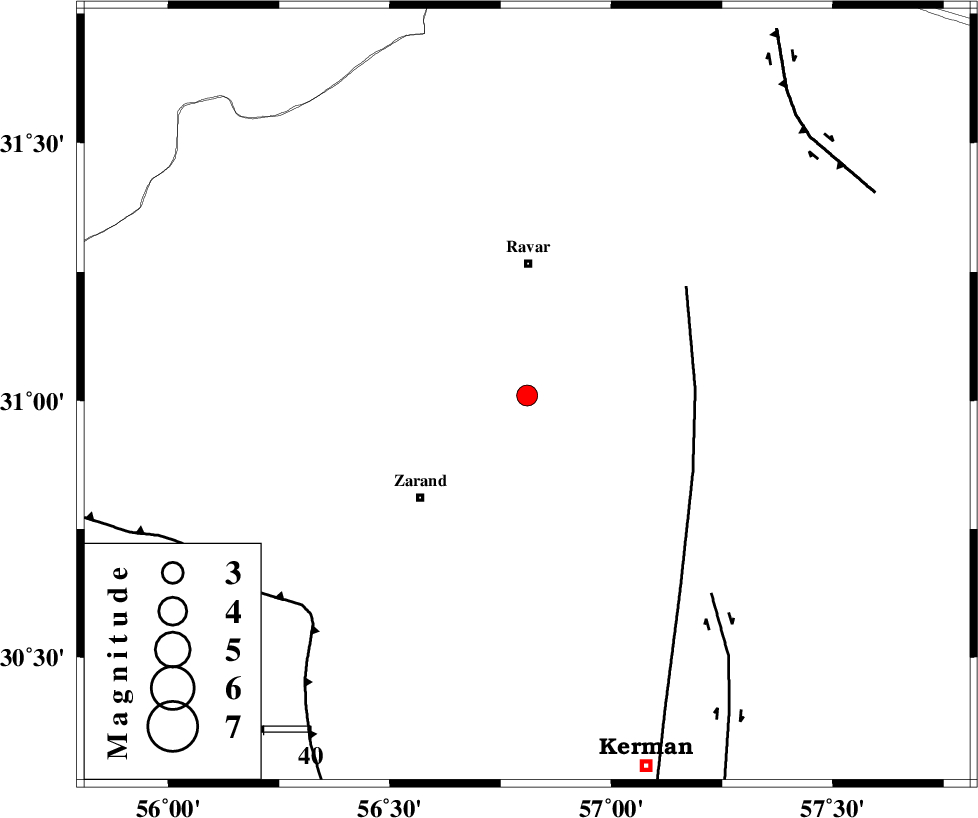

Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 :2.9
Date & Time (UTC) 2020-01-06 01:15:34.6
Date & Time (Local) 1398/10/16  04:45:34.6
Location Lat:31.01 Lon: 56.81
Region Kerman Province, 28 km South of Ravar
Nearest Cities
17 km North East of Ahmadi, Kerman Province
19 km North of Hatkan, Kerman Province
24 km East of Dasht-e khak, Kerman Province
28 km South of Ravar, Kerman Province
32 km North East of Zarand, Kerman Province
Depth 14 km
Agency
Faults within 150 km:
KUHBANAN_F (Length: 189 km) , Distance to epicenter: 28 km
LAKARKUH_F (Length: 138 km) , Distance to epicenter: 34 km
CHATRUD_F (Length: 37 km) , Distance to epicenter: 48 km
Number of Phases 6
RMS 1.6
Number of Stations 5
Error in Latitude >6 km
Error in Longitude 0 km
Error in Depth 252 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
150607IIEES SCKRBRZ 21012020-01-06 01:16:102020-01-07 02:18:00n
150608IIEES SCBSRNZ 3612020-01-06 01:16:472020-01-07 02:18:00n
150609IIEES SCYZKHZ 6912020-01-06 01:16:542020-01-07 02:18:00n
150610IIEES SCTABSZ 3112020-01-06 01:17:082020-01-07 02:18:00n
150611IIEES SCSHRTZ 6.312020-01-06 01:17:502020-01-07 02:18:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKRBRN IS I2020-01-06 01:16:091.4n4111183
IIEES SCKRBRZ IP I2020-01-06 01:15:551.5y111183
IIEES SCBSRNZ IP I2020-01-06 01:16:09-2.8y24464
IIEES SCYZKHZ IP I2020-01-06 01:16:13-0.9y255306
IIEES SCTABSZ IP I2020-01-06 01:16:17-1.4y2896
IIEES SCSHRTZ IP I2020-01-06 01:16:392.3y44448
