Magnitude
 :2.9
Date & Time (UTC) 2019-12-21 17:15:58.7
Date & Time (Local) 1398/9/30  20:45:58.7

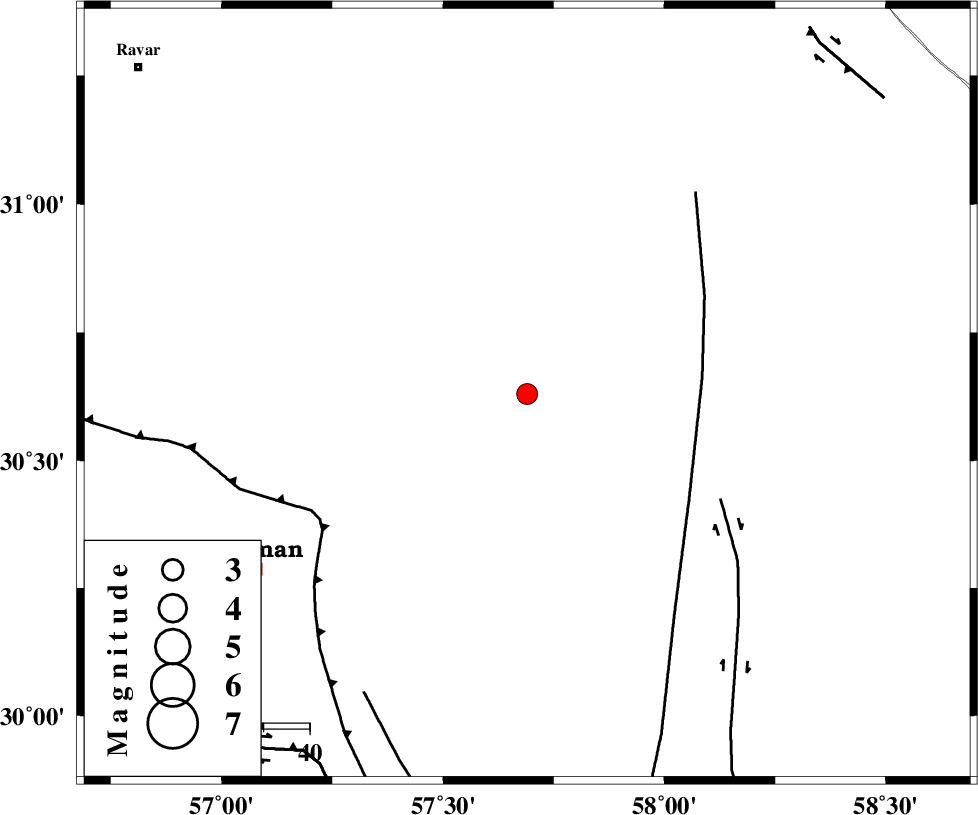

Location Lat:30.63 Lon: 57.69
Region Kerman Province, 70 km North-East of Kerman
Nearest Cities
24 km North of Shahdad, Kerman Province
27 km North West of Estehkam, Kerman Province
42 km North East of Dehlulu, Kerman Province
50 km North East of Sirch, Kerman Province
53 km East of Harjand, Kerman Province
Depth 14 km
Agency
Faults within 150 km:
GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 22 km
LAKARKUH_F (Length: 138 km) , Distance to epicenter: 25 km
SHAHDAD_F (Length: 108 km) , Distance to epicenter: 25 km
Number of Phases 5
RMS 1.1
Number of Stations 5
Error in Latitude >7 km
Error in Longitude 0 km
Error in Depth 40 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
149800IIEES SCKRBRZ 10012019-12-21 17:16:322019-12-22 11:12:00n
149801IIEES SCBSRNZ 10012019-12-21 17:16:572019-12-22 11:12:00n
149802IIEES SCTABSZ 1912019-12-21 17:17:462019-12-22 11:12:00n
149803IIEES SCYZKHZ 1212019-12-21 17:17:452019-12-22 11:12:00n
149804IIEES SCSHRTZ 5.612019-12-21 17:18:052019-12-22 11:12:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKRBRZ IP I2019-12-21 17:16:180y111231
IIEES SCBSRNZ IP I2019-12-21 17:16:30-1.1y20043
IIEES SCTABSZ IP I2019-12-21 17:16:47-1.1y344351
IIEES SCYZKHZ IP I2019-12-21 17:16:510.6y355304
IIEES SCSHRTZ IP I2019-12-21 17:17:002.5y41136
