Map Title

Magnitude
 :3
Date & Time (UTC) 2019-12-09 23:37:13.1
Date & Time (Local) 1398/9/19  03:07:13.1
Location Lat:32.24 Lon: 56.35
Region Yazd Province, 117 km North-West of Ravar
Nearest Cities
51 km North East of Behabad, Yazd Province
62 km North East of Benestan, Yazd Province
65 km North East of Asfih, Yazd Province
77 km North East of Kushk, Yazd Province
92 km North East of Basab, Yazd Province
Depth 10 km
Agency

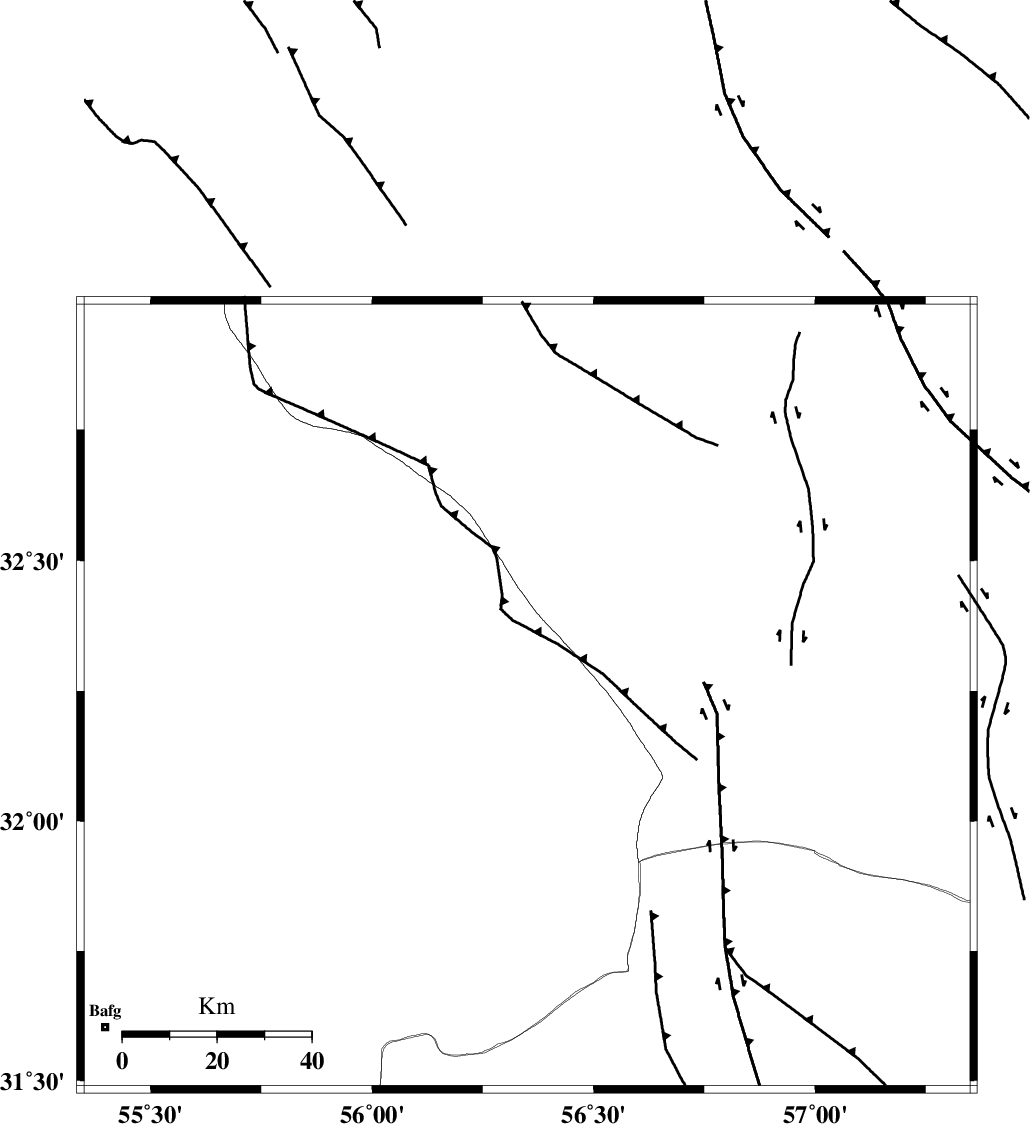

Faults within 150 km:
JAFARABAD_F (Length: 60 km) , Distance to epicenter: 36 km
NAINI_F (Length: 342 km) , Distance to epicenter: 47 km
SARBALA_F (Length: 92 km) , Distance to epicenter: 50 km
Number of Phases 8
RMS 0.8
Number of Stations 8
Error in Latitude >4 km
Error in Longitude 0 km
Error in Depth 21 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
149459IIEES SCYZKHZ 14012019-12-09 23:38:012019-12-10 08:43:00n
149460IIEES SCTABSZ 9912019-12-09 23:38:042019-12-10 08:43:00n
149461IIEES SCKRBRZ 13012019-12-09 23:38:282019-12-10 08:43:00n
149462IIEES SCBSRNZ 5612019-12-09 23:38:302019-12-10 08:43:00n
149463IIEES SCNASNZ 2212019-12-09 23:38:532019-12-10 08:43:00n
149464IIEES SCSHRTZ 1512019-12-09 23:39:162019-12-10 08:43:00n
149465IIEES SCKLNJZ 6.912019-12-09 23:39:302019-12-10 08:43:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCYZKHZ IP I2019-12-09 23:37:39-1.4y166276
IIEES SCTABSN IS I2019-12-09 23:38:030.4y17725
IIEES SCTABSZ IP I2019-12-09 23:37:410.1y17725
IIEES SCKRBRZ IP I2019-12-09 23:37:530.4y255171
IIEES SCBSRNZ IP I2019-12-09 23:37:52-1.2y26697
IIEES SCNASNZ IP I2019-12-09 23:38:062.5y333281
IIEES SCSHRTZ IP I2019-12-09 23:38:11-0.1y40067
IIEES SCKLNJZ IP I2019-12-09 23:38:200.3y467253
