Magnitude |
:3.3 |
| Date & Time (UTC) | 2019-12-04 19:35:07.7 |
| Date & Time (Local) | 1398/9/13 23:05:07.7 |
| Location | Lat:31.47 Lon: 56.41 |
| Region | Kerman Province, 44 km North-West of Ravar |
Nearest Cities |
|
| 13 km North East of Kuhbanan, Kerman Province | |
| 17 km North East of Jor, Kerman Province | |
| 28 km South East of Asfih, Yazd Province | |
| 36 km North of Toghroljerd, Kerman Province | |
| 40 km North West of Dehali, Kerman Province | |
| Depth | 10 km |
| Agency | |

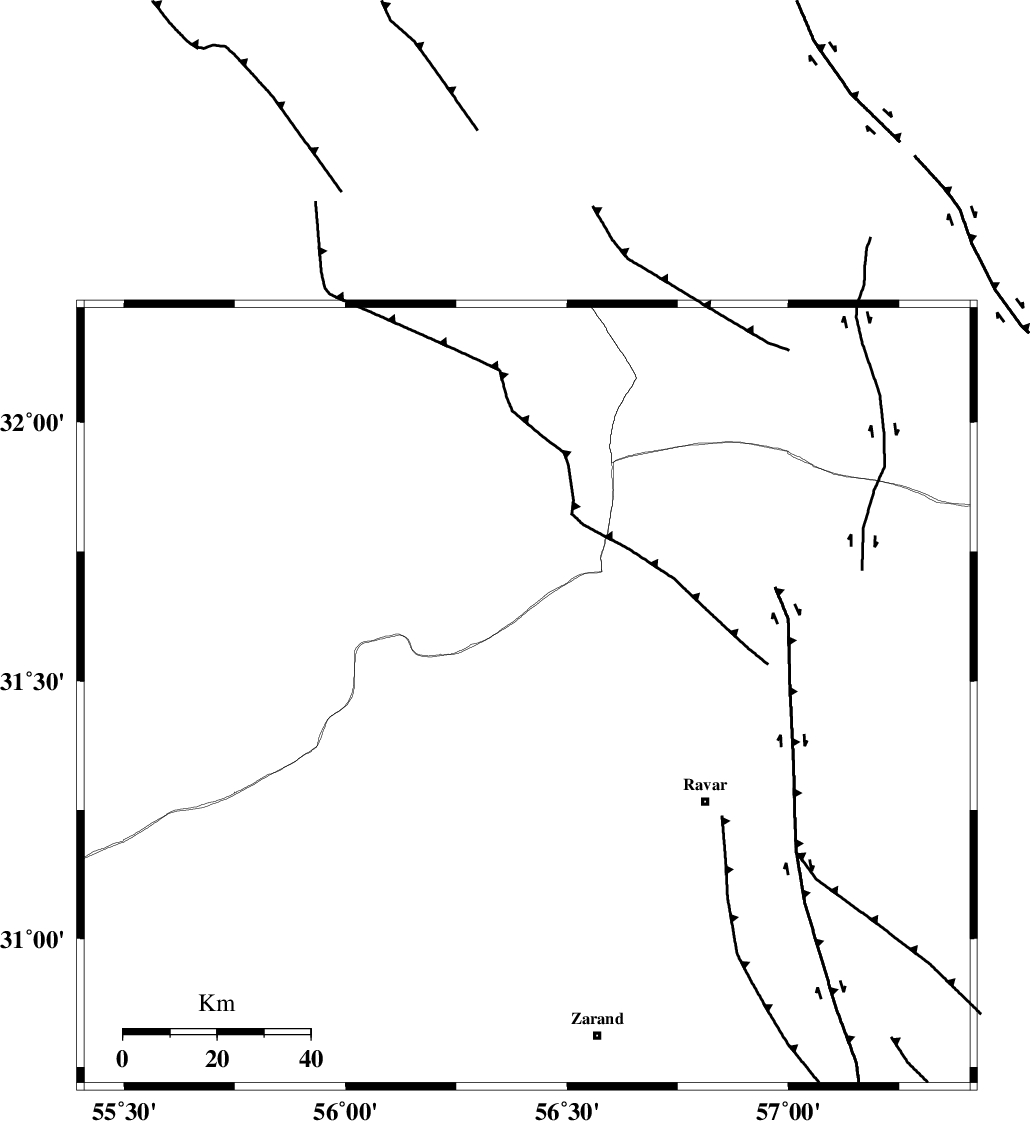

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 17 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 30 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 55 km | |
| Number of Phases | 14 |
| RMS | 0.7 |
| Number of Stations | 14 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149409 | IIEES SC | KRBR | Z | 340 | 1 | 2019-12-04 19:36:02 | 2019-12-08 01:27:00 | n |
| 149410 | IIEES SC | YZKH | Z | 260 | 1 | 2019-12-04 19:36:09 | 2019-12-08 01:27:00 | n |
| 149411 | IIEES SC | TABS | Z | 70 | 1 | 2019-12-04 19:36:28 | 2019-12-08 01:27:00 | n |
| 149412 | IIEES SC | BSRN | Z | 83 | 1 | 2019-12-04 19:36:31 | 2019-12-08 01:27:00 | n |
| 149413 | IIEES SC | NASN | Z | 27 | 1 | 2019-12-04 19:36:32 | 2019-12-08 01:27:00 | n |
| 149414 | IIEES SC | SHRT | Z | 18 | 1 | 2019-12-04 19:37:22 | 2019-12-08 01:27:00 | n |
| 149415 | IIEES SC | KLNJ | Z | 12 | 1 | 2019-12-04 19:37:30 | 2019-12-08 01:27:00 | n |
| 149416 | IIEES SC | GHIR | Z | 1.5 | 1 | 2019-12-04 19:37:55 | 2019-12-08 01:27:00 | n |
| 149417 | IIEES SC | SHRO | Z | 2.8 | 1 | 2019-12-04 19:37:35 | 2019-12-08 01:27:00 | n |
| 149418 | IIEES SC | LMD1 | Z | 40 | 1 | 2019-12-04 19:36:32 | 2019-12-08 01:27:00 | n |
| 149419 | IIEES SC | GLO | Z | 33 | 1 | 2019-12-04 19:38:26 | 2019-12-08 01:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | N | IS | I | 2019-12-04 19:35:56 | -0.4 | y | 166 | 168 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-12-04 19:35:36 | 0.6 | y | 166 | 168 | |||
| IIEES SC | YZKH | N | IS | I | 2019-12-04 19:36:04 | -0.2 | y | 200 | 301 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-12-04 19:35:40 | -0.4 | y | 200 | 301 | |||
| IIEES SC | TABS | Z | IP | I | 2019-12-04 19:35:47 | 0 | y | 255 | 15 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-12-04 19:35:47 | -1.1 | y | 266 | 78 | |||
| IIEES SC | NASN | Z | IP | I | 2019-12-04 19:36:01 | -0.2 | y | 366 | 294 | |||
| IIEES SC | SHRT | Z | IP | I | 2019-12-04 19:36:11 | 0.8 | y | 433 | 57 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-12-04 19:36:13 | 0.2 | y | 467 | 264 | |||
| IIEES SC | GHIR | Z | IP | I | 2019-12-04 19:36:17 | 1.2 | y | 478 | 223 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-12-04 19:36:17 | -1.1 | y | 500 | 356 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-12-04 19:36:23 | -1 | y | 556 | 215 | |||
| IIEES SC | TBJM | Z | IP | I | 2019-12-04 19:36:26 | 1 | y | 556 | 41 | |||
| IIEES SC | GLO | Z | IP | I | 2019-12-04 19:36:32 | 0.8 | y | 611 | 337 | |||
