Magnitude |
:3.5 |
| Date & Time (UTC) | 2019-11-20 21:47:37.8 |
| Date & Time (Local) | 1398/8/30 01:17:37.8 |

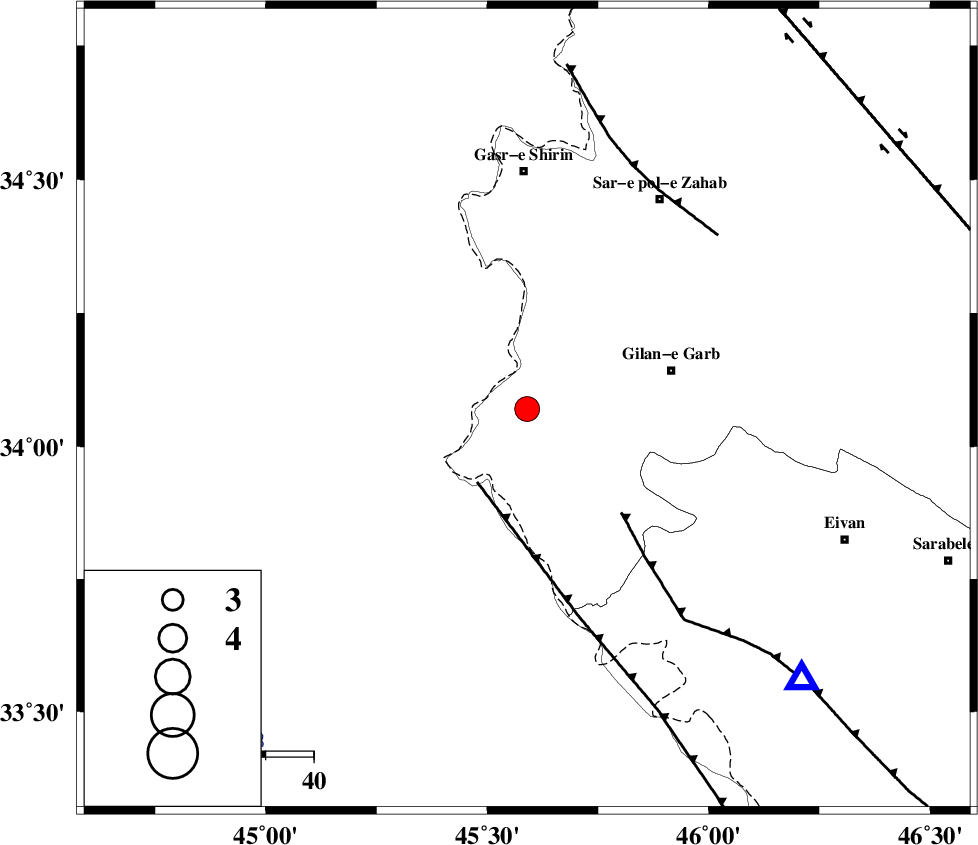

| Location | Lat:34.07 Lon: 45.59 |
| Region | Kermanshah Province, 31 km -West of Gilan-E-Gharb |
Nearest Cities |
|
| 22 km North of Sumar, Kermanshah Province | |
| 31 km West of Gilan-E-Gharb, Kermanshah Province | |
| 34 km North West of Nian, Kermanshah Province | |
| 37 km South West of Chub baghan, Kermanshah Province | |
| 38 km South East of Khosravi, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 18 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 29 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 53 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 368 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148660 | IIEES SC | SRSL | Z | 330 | 1 | 2019-11-20 21:48:46 | 2019-11-23 10:04:00 | n |
| 148661 | IIEES SC | MAHB | Z | 170 | 1 | 2019-11-20 21:49:09 | 2019-11-23 10:04:00 | n |
| 148662 | IIEES SC | GTMR | Z | 50 | 1 | 2019-11-20 21:49:27 | 2019-11-23 10:04:00 | n |
| 148663 | IIEES SC | AZR | Z | 340 | 1 | 2019-11-20 21:49:43 | 2019-11-23 10:04:00 | n |
| 148664 | IIEES SC | ZNJK | Z | 4.2 | 1 | 2019-11-20 21:50:15 | 2019-11-23 10:04:00 | n |
| 148665 | IIEES SC | KHMZ | Z | 25 | 1 | 2019-11-20 21:49:32 | 2019-11-23 10:04:00 | n |
| 148666 | IIEES SC | ASAO | Z | 32 | 1 | 2019-11-20 21:49:27 | 2019-11-23 10:04:00 | n |
| 148667 | IIEES SC | GHVR | Z | 26 | 1 | 2019-11-20 21:49:57 | 2019-11-23 10:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | IP | I | 2019-11-20 21:48:15 | 0.1 | y | 233 | 357 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-20 21:48:23 | 0.2 | y | 300 | 2 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-11-20 21:48:31 | -0.3 | y | 378 | 118 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-20 21:48:35 | -0.3 | y | 400 | 5 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-20 21:48:35 | -0.3 | y | 400 | 44 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-20 21:48:36 | 0.4 | y | 411 | 95 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-11-20 21:48:37 | 0.3 | y | 411 | 83 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-20 21:48:50 | -0.1 | y | 522 | 85 | |||
