Map Title

Magnitude
 :2.6
Date & Time (UTC) 2019-11-19 20:56:21.1
Date & Time (Local) 1398/8/29  00:26:21.1

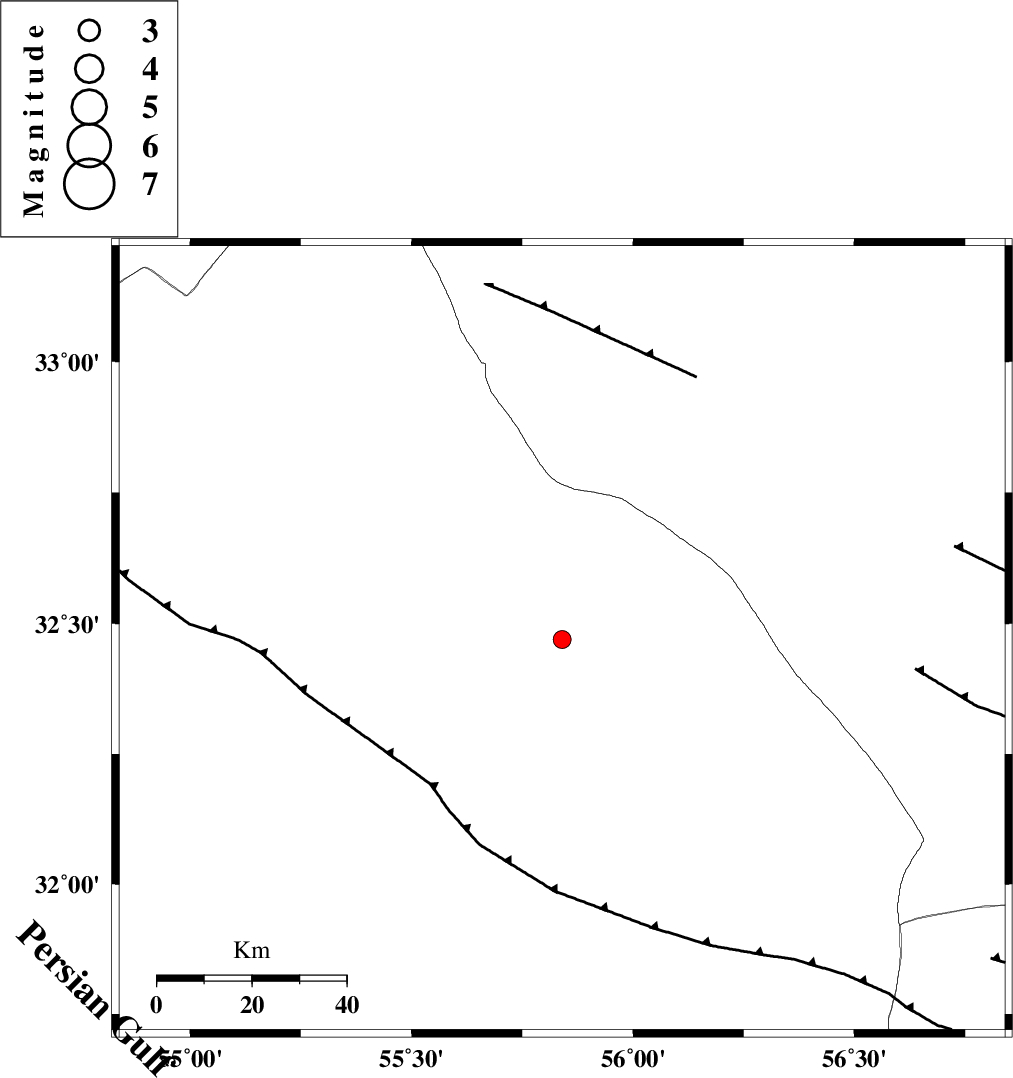

Location Lat:32.47 Lon: 55.84
Region Yazd Province, 105 km North-East of Bafq
Nearest Cities
66 km South East of Robat-e posht-e badam, Yazd Province
69 km North West of Behabad, Yazd Province
81 km North of Kushk, Yazd Province
85 km North West of Benestan, Yazd Province
96 km North West of Asfih, Yazd Province
Depth 10 km
Agency
Faults within 150 km:
SARBALA_F (Length: 92 km) , Distance to epicenter: 6 km
NAINI_F (Length: 342 km) , Distance to epicenter: 18 km
JAFARABAD_F (Length: 60 km) , Distance to epicenter: 31 km
Number of Phases 6
RMS 0.9
Number of Stations 6
Error in Latitude >8 km
Error in Longitude 0 km
Error in Depth 28 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
148635IIEES SCYZKHZ 12012019-11-19 20:57:002019-11-20 12:46:00n
148636IIEES SCTABSZ 4812019-11-19 20:57:162019-11-20 12:46:00n
148637IIEES SCNASNZ 2012019-11-19 20:57:442019-11-20 12:46:00n
148638IIEES SCBSRNZ 912019-11-19 20:58:002019-11-20 12:46:00n
148639IIEES SCSHROZ 2.312019-11-19 20:58:432019-11-20 12:46:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCYZKHN IS I2019-11-19 20:56:55-0.7y122266
IIEES SCYZKHZ IP I2019-11-19 20:56:41-0.1y122266
IIEES SCTABSZ IP I2019-11-19 20:56:49-0.7y17742
IIEES SCNASNZ IP I2019-11-19 20:57:072.5y289277
IIEES SCBSRNZ IP I2019-11-19 20:57:080.1y311100
IIEES SCSHROZ IP I2019-11-19 20:57:190.9y3892
