Magnitude
 :4.4
Date & Time (UTC) 2019-11-04 00:45:21.2
Date & Time (Local) 1398/8/13  04:15:21.2

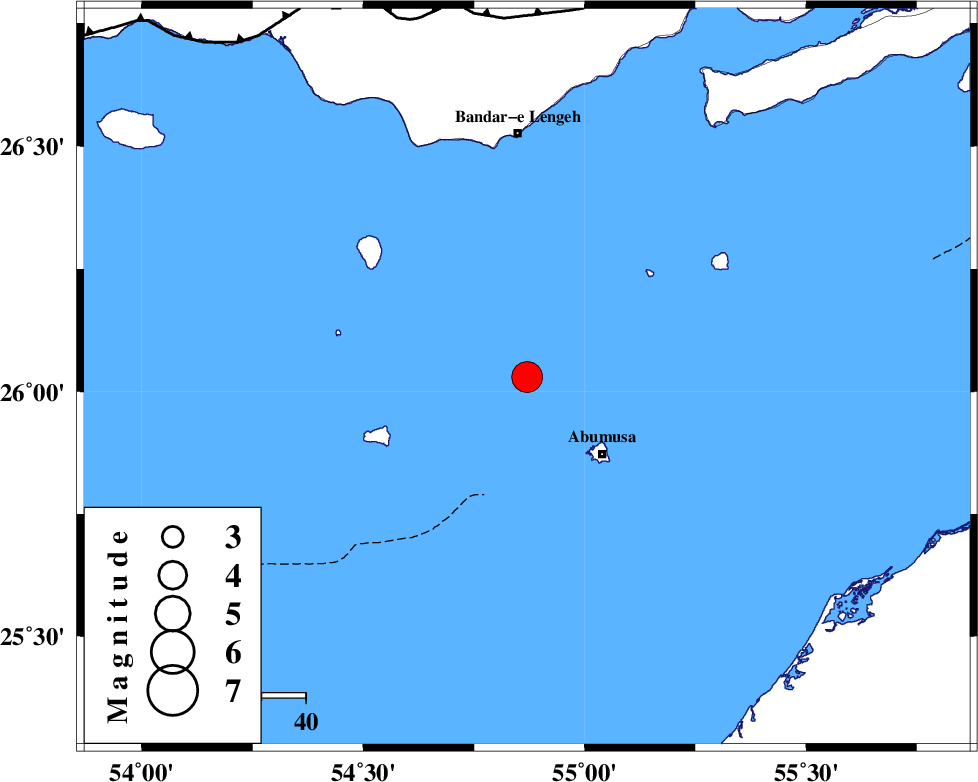

Location Lat:26.03 Lon: 54.87
Region Persian Gulf, 24 km North-West of Abu Musa
Nearest Cities
24 km North West of Abu Musa, Hormozgan Province
55 km South of Bandar-e lengeh, Hormozgan Province
91 km North West of Sharjah, United Arab Emirates Province
96 km North West of Dubai, United Arab Emirates Province
124 km South East of Jenah, Hormozgan Province
Depth 14 km
Agency
Faults within 150 km:
ZFF1 (Length: 165 km) , Distance to epicenter: 81 km
MFF1 (Length: 180 km) , Distance to epicenter: 113 km
MFF3 (Length: 292 km) , Distance to epicenter: 123 km
Number of Phases 17
RMS 0.5
Number of Stations 12
Error in Latitude >5 km
Error in Longitude 0 km
Error in Depth 13 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
147458IIEES SCBNDSZ 220012019-11-04 00:46:282019-11-04 08:33:00n
147459IIEES SCLMD1Z 260012019-11-04 00:46:562019-11-04 08:33:00n
147460IIEES SCKRBRZ 44012019-11-04 00:46:302019-11-04 08:33:00n
147461IIEES SCCHBRZ 19012019-11-04 00:46:402019-11-04 08:33:00n
147462IIEES SCCHBRZ 910.42019-11-04 00:46:402019-11-04 08:33:00n
147463IIEES SCKLNJZ 11012019-11-04 00:47:582019-11-04 08:33:00n
147464IIEES SCKLNJZ 170.412019-11-04 00:46:562019-11-04 08:33:00n
147465IIEES SCSRVNZ 6012019-11-04 00:47:052019-11-04 08:33:00n
147466IIEES SCSRVNZ 400.682019-11-04 00:47:062019-11-04 08:33:00n
147467IIEES SCNASNZ 3912019-11-04 00:48:232019-11-04 08:33:00n
147468IIEES SCNASNZ 150.62019-11-04 00:47:322019-11-04 08:33:00n
147469IIEES SCBSRNZ 2112019-11-04 00:49:242019-11-04 08:33:00n
147470IIEES SCBSRNZ 130.692019-11-04 00:47:262019-11-04 08:33:00n
147471IIEES SCTABSZ 2912019-11-04 00:47:232019-11-04 08:33:00n
147472IIEES SCTABSZ 210.962019-11-04 00:47:242019-11-04 08:33:00n
147473IIEES SCKHMZZ 140.462019-11-04 00:47:362019-11-04 08:33:00n
147474IIEES SCSHRTZ 5.80.852019-11-04 00:47:332019-11-04 08:33:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBNDSZ IP I2019-11-04 00:45:530y20041
IIEES SCLMD1Z IP I2019-11-04 00:45:560.4y222310
IIEES SCKRBRZ IP I2019-11-04 00:46:301.8y47823
IIEES SCCHBRZ IP I2019-11-04 00:46:39-0.1y56795
IIEES SCKLNJZ IP I2019-11-04 00:46:47-0.8y633330
IIEES SCSRVNZ IP I2019-11-04 00:47:051y76779
IIEES SCNASNZ IP I2019-11-04 00:47:04-0.7y778345
IIEES SCBSRNZ IP I2019-11-04 00:47:050y77832
IIEES SCTABSZ IP I2019-11-04 00:47:170.1y86714
IIEES SCKHMZN IP I2019-11-04 00:47:29-1.5y978331
IIEES SCRAYNZ IP I2019-11-04 00:47:29-1.8y989254
IIEES SCSHRTN IP I2019-11-04 00:47:320.3y98932
IIEES SCCHBRZ IVmB_BB 2019-11-04 00:46:40y156795
IIEES SCKLNJZ IVmB_BB 2019-11-04 00:46:49y1633330
IIEES SCSRVNZ IVmB_BB 2019-11-04 00:47:06y176779
IIEES SCKHMZZ IVmB_BB 2019-11-04 00:47:32y1978331
IIEES SCSHRTZ IVmB_BB 2019-11-04 00:48:31y198932
