Magnitude |
:3.5 |
| Date & Time (UTC) | 2019-11-02 04:42:51.6 |
| Date & Time (Local) | 1398/8/11 08:12:51.6 |
| Location | Lat:34.93 Lon: 46.19 |
| Region | Kermanshah Province, 21 km South-West of Paveh |
Nearest Cities |
|
| 5 km North of Mazran, Kermanshah Province | |
| 8 km of Bayangan, Kermanshah Province | |
| 11 km of Dudan, Kermanshah Province | |
| 11 km of Dudan, Kermanshah Province | |
| 12 km of Void, Kermanshah Province | |
| Depth | 14 km |
| Agency | |

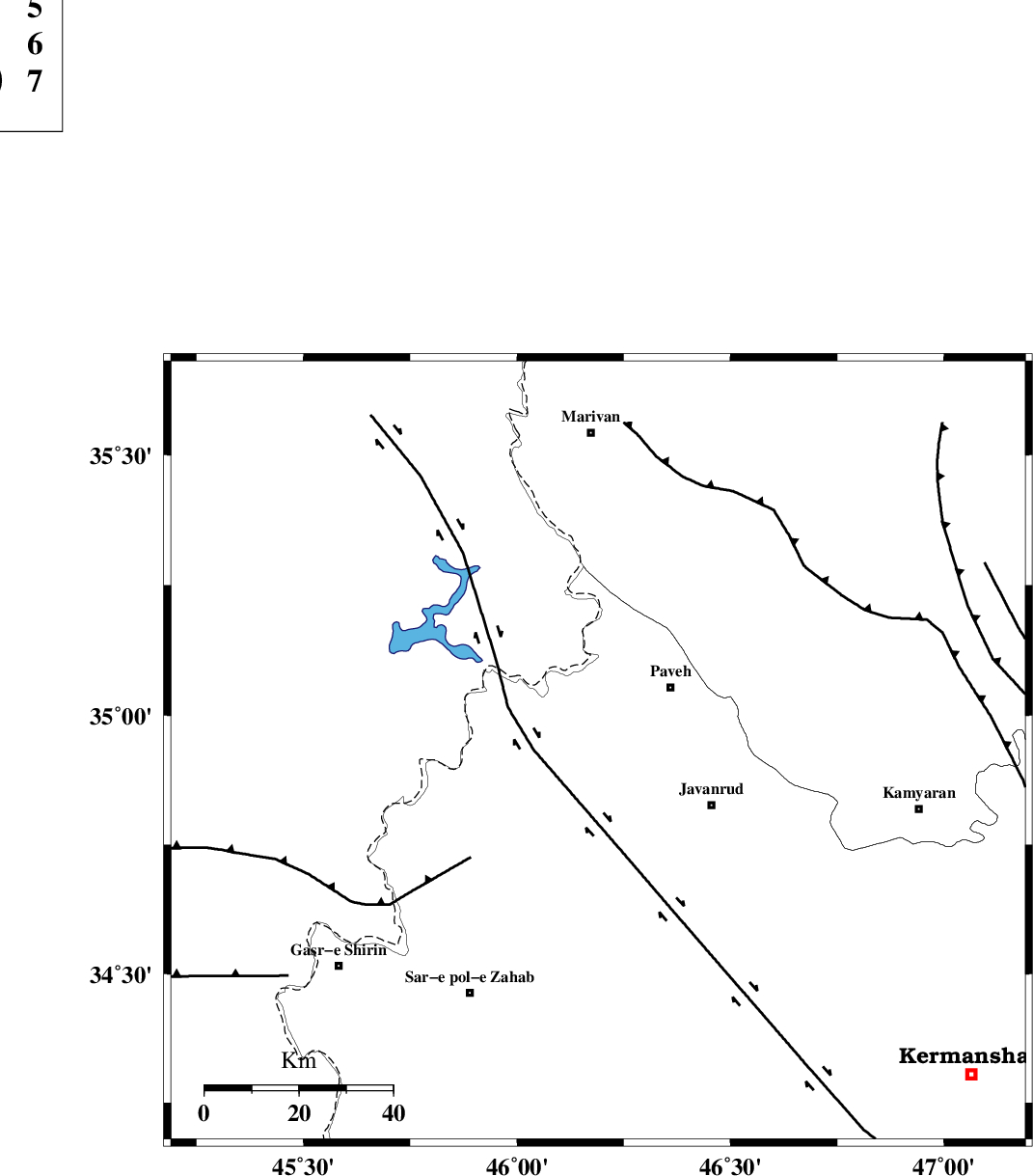

Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 14 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 48 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 50 km | |
| Number of Phases | 8 |
| RMS | 0.9 |
| Number of Stations | 8 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147334 | IIEES SC | KGS1 | Z | 3100 | 1 | 2019-11-02 04:43:17 | 2019-11-02 09:53:00 | n |
| 147335 | IIEES SC | SNGE | Z | 1000 | 1 | 2019-11-02 04:43:26 | 2019-11-02 09:53:00 | n |
| 147336 | IIEES SC | SRSL | Z | 570 | 1 | 2019-11-02 04:43:45 | 2019-11-02 09:53:00 | n |
| 147337 | IIEES SC | MAHB | Z | 450 | 1 | 2019-11-02 04:44:00 | 2019-11-02 09:53:00 | n |
| 147338 | IIEES SC | ZNJK | Z | 86 | 1 | 2019-11-02 04:44:23 | 2019-11-02 09:53:00 | n |
| 147339 | IIEES SC | QABG | Z | 14 | 1 | 2019-11-02 04:44:31 | 2019-11-02 09:53:00 | n |
| 147340 | IIEES SC | KHMZ | Z | 130 | 1 | 2019-11-02 04:44:46 | 2019-11-02 09:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KGS1 | Z | IP | I | 2019-11-02 04:43:04 | 0 | y | 77 | 229 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-02 04:43:08 | -1.2 | y | 111 | 80 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-02 04:43:16 | -0.7 | y | 155 | 334 | |||
| IIEES SC | MAHB | E | IS | I | 2019-11-02 04:43:53 | 2.4 | y | 211 | 348 | |||
| IIEES SC | MAHB | N | IP | I | 2019-11-02 04:43:24 | -1.1 | y | 211 | 348 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-11-02 04:43:36 | -0.1 | y | 300 | 49 | |||
| IIEES SC | QABG | N | IP | I | 2019-11-02 04:43:40 | 0.7 | y | 322 | 74 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-02 04:43:46 | 1.2 | y | 366 | 111 | |||
