Magnitude |
:3.9 |
| Date & Time (UTC) | 2019-10-22 04:33:20.1 |
| Date & Time (Local) | 1398/7/30 08:03:20.1 |

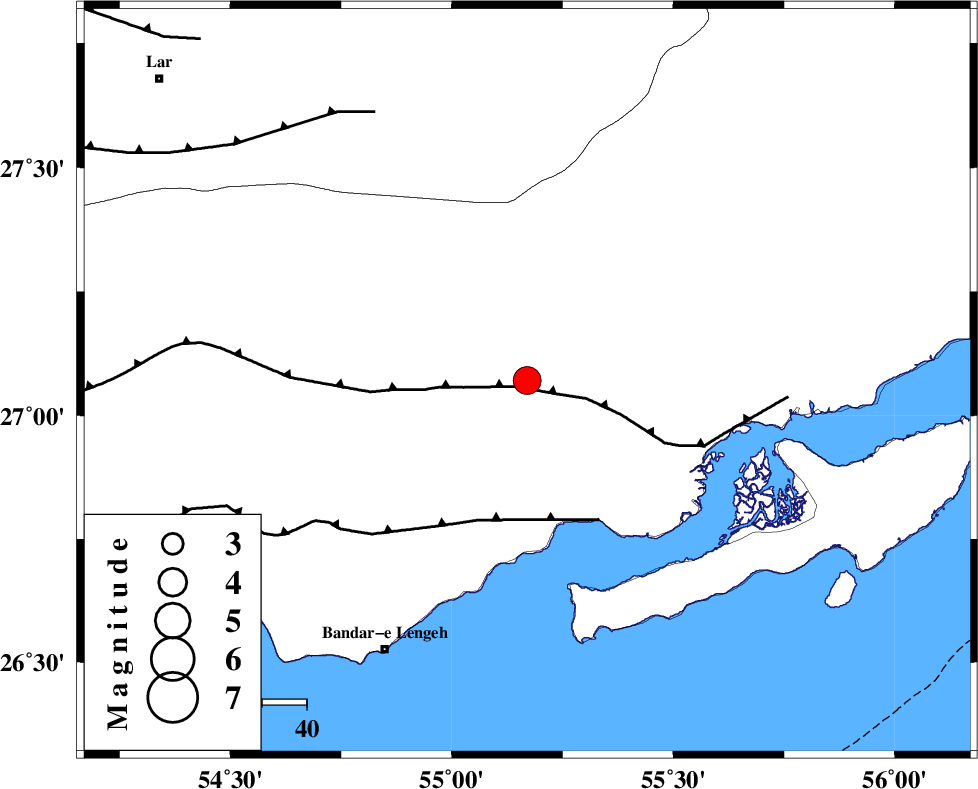

| Location | Lat:27.07 Lon: 55.17 |
| Region | Hormozgan Province, 68 km North-East of Bandar-e lengeh |
Nearest Cities |
|
| 43 km North West of Bandar-e khamir, Hormozgan Province | |
| 68 km North East of Bandar-e lengeh, Hormozgan Province | |
| 81 km South East of Bastak, Hormozgan Province | |
| 88 km North East of Jenah, Hormozgan Province | |
| 92 km South West of Darz, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 2 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 33 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 69 km | |
| Number of Phases | 8 |
| RMS | 0.9 |
| Number of Stations | 7 |
| Error in Latitude | >8 km |
| Error in Longitude | 0 km |
| Error in Depth | 34 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 146939 | IIEES SC | LMD1 | Z | 2900 | 1 | 2019-10-22 04:34:21 | 2019-10-22 12:18:00 | n |
| 146940 | IIEES SC | KRBR | Z | 140 | 1 | 2019-10-22 04:35:12 | 2019-10-22 12:18:00 | n |
| 146941 | IIEES SC | CHBR | Z | 46 | 1 | 2019-10-22 04:34:49 | 2019-10-22 12:18:00 | n |
| 146942 | IIEES SC | KLNJ | Z | 48 | 1 | 2019-10-22 04:35:38 | 2019-10-22 12:18:00 | n |
| 146943 | IIEES SC | KLNJ | Z | 20 | 0.62 | 2019-10-22 04:35:02 | 2019-10-22 12:18:00 | n |
| 146944 | IIEES SC | YZKH | Z | 32 | 1 | 2019-10-22 04:36:25 | 2019-10-22 12:18:00 | n |
| 146945 | IIEES SC | YZKH | Z | 15 | 0.55 | 2019-10-22 04:34:40 | 2019-10-22 12:18:00 | n |
| 146946 | IIEES SC | KHMZ | Z | 13 | 0.75 | 2019-10-22 04:35:17 | 2019-10-22 12:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | E | IS | I | 2019-10-22 04:34:17 | 0.9 | y | 200 | 278 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-10-22 04:33:52 | -0.5 | y | 200 | 278 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-10-22 04:34:13 | 0.7 | y | 355 | 26 | |||
| IIEES SC | CHBR | Z | IP | I | 2019-10-22 04:34:36 | -0.2 | y | 556 | 107 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-10-22 04:34:35 | -1.6 | y | 556 | 321 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-10-22 04:34:39 | -2 | y | 589 | 355 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-10-22 04:35:16 | -1.9 | y | 889 | 326 | |||
| IIEES SC | KLNJ | Z | IVmB_BB | 2019-10-22 04:34:42 | y | 1 | 556 | 321 | ||||
