Magnitude |
:4 |
| Date & Time (UTC) | 2019-10-11 09:19:34.8 |
| Date & Time (Local) | 1398/7/19 12:49:34.8 |
| Location | Lat:28.39 Lon: 54.75 |
| Region | Fars Province, 45 km South-East of Darab |
Nearest Cities |
|
| 29 km South of Dehkheyr, Fars Province | |
| 33 km West of Rostaq, Fars Province | |
| 33 km North East of Hajiabad, Fars Province | |
| 41 km North East of Shahr-e pir, Fars Province | |
| 43 km South East of Shahnan, Fars Province | |
| Depth | 10 km |
| Agency | |

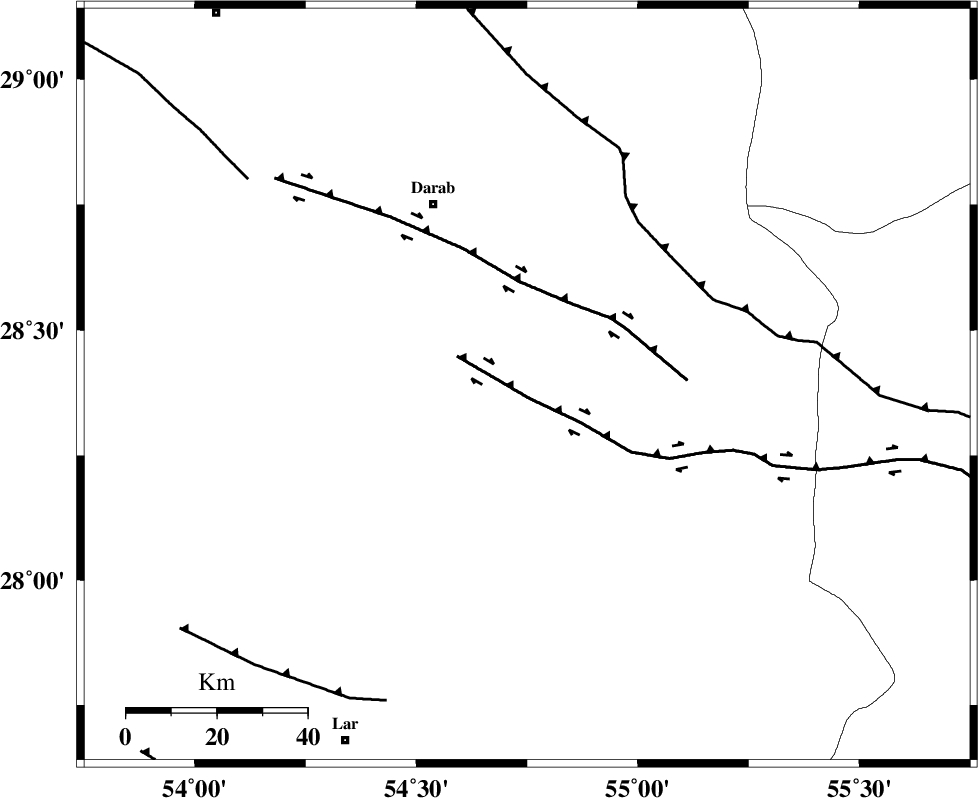

Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 3 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 21 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 43 km | |
| Number of Phases | 20 |
| RMS | 0.7 |
| Number of Stations | 20 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 146412 | IIEES SC | BNDS | Z | 1900 | 1 | 2019-10-11 09:20:38 | 2019-10-11 02:53:00 | n |
| 146413 | IIEES SC | LMD1 | Z | 4000 | 1 | 2019-10-11 09:20:37 | 2019-10-11 02:53:00 | n |
| 146414 | IIEES SC | KLNJ | Z | 340 | 1 | 2019-10-11 09:21:52 | 2019-10-11 02:53:00 | n |
| 146415 | IIEES SC | YZKH | Z | 220 | 1 | 2019-10-11 09:21:58 | 2019-10-11 02:53:00 | n |
| 146416 | IIEES SC | BSRN | Z | 72 | 1 | 2019-10-11 09:22:33 | 2019-10-11 02:53:00 | n |
| 146417 | IIEES SC | ZHSF | Z | 40 | 1 | 2019-10-11 09:22:41 | 2019-10-11 02:53:00 | n |
| 146418 | IIEES SC | TABS | Z | 150 | 1 | 2019-10-11 09:23:02 | 2019-10-11 02:53:00 | n |
| 146419 | IIEES SC | CHBR | Z | 77 | 1 | 2019-10-11 09:21:12 | 2019-10-11 02:53:00 | n |
| 146420 | IIEES SC | KHMZ | Z | 80 | 1 | 2019-10-11 09:22:39 | 2019-10-11 02:53:00 | n |
| 146421 | IIEES SC | SRVN | Z | 30 | 1 | 2019-10-11 09:23:33 | 2019-10-11 02:53:00 | n |
| 146422 | IIEES SC | SHRT | Z | 33 | 1 | 2019-10-11 09:23:51 | 2019-10-11 02:53:00 | n |
| 146423 | IIEES SC | ASAO | Z | 56 | 1 | 2019-10-11 09:23:07 | 2019-10-11 02:53:00 | n |
| 146424 | IIEES SC | DAMV | Z | 28 | 1 | 2019-10-11 09:21:33 | 2019-10-11 02:53:00 | n |
| 146425 | IIEES SC | SHRO | Z | 15 | 1 | 2019-10-11 09:23:51 | 2019-10-11 02:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | N | IS | I | 2019-10-11 09:20:26 | 0.4 | y | 177 | 128 | |||
| IIEES SC | BNDS | Z | IP | I | 2019-10-11 09:20:03 | -0.3 | y | 177 | 128 | |||
| IIEES SC | LMD1 | N | IS | I | 2019-10-11 09:20:30 | 0.5 | y | 200 | 233 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-10-11 09:20:06 | -0.5 | y | 200 | 233 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-10-11 09:20:34 | -1 | y | 422 | 314 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-10-11 09:20:39 | 1.3 | y | 444 | 358 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-10-11 09:20:54 | -0.7 | y | 578 | 47 | |||
| IIEES SC | ZHSF | Z | IP | I | 2019-10-11 09:20:59 | 1 | y | 600 | 77 | |||
| IIEES SC | TABS | Z | IP | I | 2019-10-11 09:21:02 | 1.3 | y | 622 | 21 | |||
| IIEES SC | CHBR | Z | IP | I | 2019-10-11 09:21:01 | -1.6 | y | 644 | 119 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-10-11 09:21:15 | -0.8 | y | 745 | 322 | |||
| IIEES SC | SRVN | Z | IP | I | 2019-10-11 09:21:17 | -0.2 | y | 756 | 98 | |||
| IIEES SC | SHRT | Z | IP | I | 2019-10-11 09:21:22 | 1.7 | y | 789 | 42 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-10-11 09:21:24 | -0.6 | y | 822 | 327 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-10-11 09:21:28 | 0.3 | y | 845 | 342 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-10-11 09:21:29 | -0.1 | y | 856 | 8 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-10-11 09:21:38 | 0.4 | y | 922 | 17 | |||
| IIEES SC | QABG | Z | IP | I | 2019-10-11 09:21:39 | -1.2 | y | 945 | 329 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-10-11 09:21:48 | -1.6 | y | 1023 | 317 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-10-11 09:21:55 | 0 | y | 1067 | 14 | |||
