Magnitude |
:3.8 |
| Date & Time (UTC) | 2019-10-03 17:26:01.5 |
| Date & Time (Local) | 1398/7/11 20:56:01.5 |

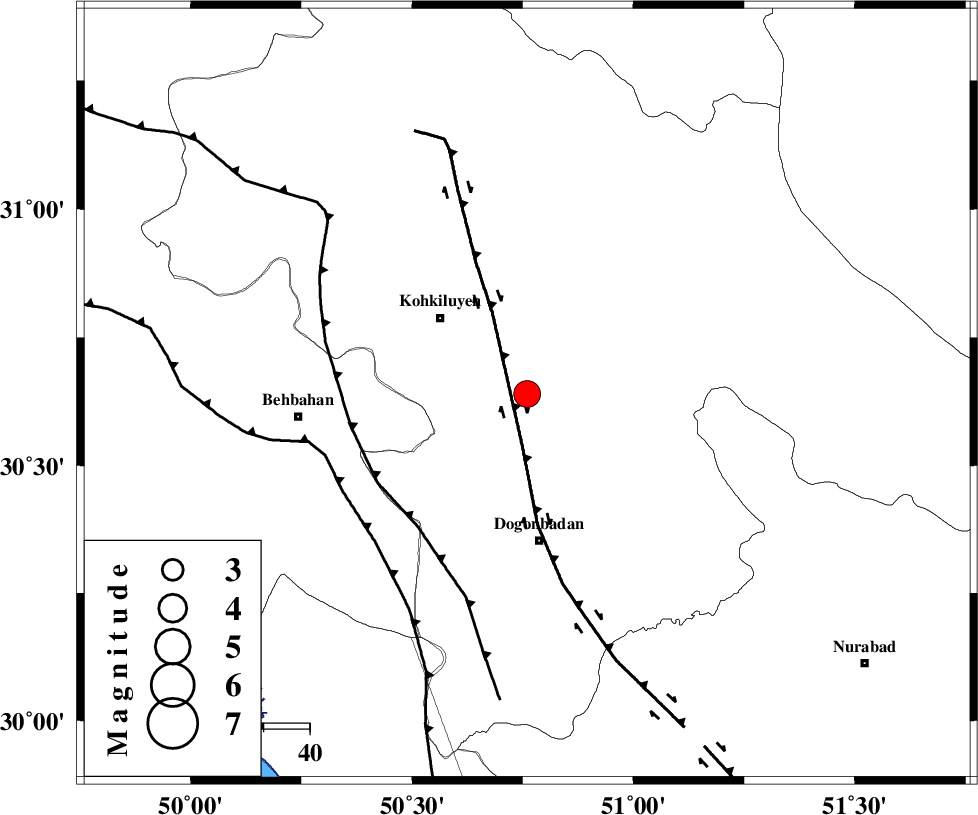

| Location | Lat:30.64 Lon: 50.76 |
| Region | Kohkiluieh va boyerahmad Province, 32 km North of Dogonbadan |
Nearest Cities |
|
| 25 km South East of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 29 km South of Savari, Kohkiluieh va boyerahmad Province | |
| 32 km North of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 35 km North West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 44 km North East of Mansuriyeh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 10 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 47 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 67 km | |
| Number of Phases | 20 |
| RMS | 0.2 |
| Number of Stations | 16 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 146155 | IIEES SC | KLNJ | Z | 1400 | 1 | 2019-10-03 17:26:37 | 2019-10-05 08:26:00 | n |
| 146156 | IIEES SC | AHRM | Z | 83 | 1 | 2019-10-03 17:27:21 | 2019-10-05 08:26:00 | n |
| 146157 | IIEES SC | GTMR | Z | 1800 | 1 | 2019-10-03 17:27:30 | 2019-10-05 08:26:00 | n |
| 146158 | IIEES SC | NASN | Z | 170 | 1 | 2019-10-03 17:27:35 | 2019-10-05 08:26:00 | n |
| 146159 | IIEES SC | KHMZ | Z | 230 | 1 | 2019-10-03 17:27:55 | 2019-10-05 08:26:00 | n |
| 146160 | IIEES SC | YZKH | Z | 180 | 1 | 2019-10-03 17:27:50 | 2019-10-05 08:26:00 | n |
| 146161 | IIEES SC | GHVR | Z | 710 | 1 | 2019-10-03 17:29:14 | 2019-10-05 08:26:00 | n |
| 146162 | IIEES SC | ASAO | Z | 260 | 1 | 2019-10-03 17:28:24 | 2019-10-05 08:26:00 | n |
| 146163 | IIEES SC | DAMV | Z | 2200 | 1 | 2019-10-03 17:28:47 | 2019-10-05 08:26:00 | n |
| 146164 | IIEES SC | DAMV | Z | 41 | 1.01 | 2019-10-03 17:27:23 | 2019-10-05 08:26:00 | n |
| 146165 | IIEES SC | QABG | Z | 5.8 | 0.72 | 2019-10-03 17:27:38 | 2019-10-05 08:26:00 | n |
| 146166 | IIEES SC | KRBR | Z | 40 | 1 | 2019-10-03 17:28:33 | 2019-10-05 08:26:00 | n |
| 146167 | IIEES SC | KRBR | Z | 28 | 0.79 | 2019-10-03 17:27:45 | 2019-10-05 08:26:00 | n |
| 146168 | IIEES SC | CHTH | Z | 400 | 1 | 2019-10-03 17:28:59 | 2019-10-05 08:26:00 | n |
| 146169 | IIEES SC | CHTH | Z | 21 | 1.22 | 2019-10-03 17:27:53 | 2019-10-05 08:26:00 | n |
| 146170 | IIEES SC | TABS | Z | 65 | 1 | 2019-10-03 17:29:37 | 2019-10-05 08:26:00 | n |
| 146171 | IIEES SC | TABS | Z | 15 | 0.81 | 2019-10-03 17:27:40 | 2019-10-05 08:26:00 | n |
| 146172 | IIEES SC | SHRO | Z | 25 | 1 | 2019-10-03 17:27:51 | 2019-10-05 08:26:00 | n |
| 146173 | IIEES SC | SHRO | Z | 22 | 0.76 | 2019-10-03 17:27:49 | 2019-10-05 08:26:00 | n |
| 146174 | IIEES SC | BJRD | Z | 4.9 | 0.9 | 2019-10-03 17:28:19 | 2019-10-05 08:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | IP | I | 2019-10-03 17:26:15 | -1.5 | y | 88 | 63 | |||
| IIEES SC | AHRM | Z | IP | I | 2019-10-03 17:26:34 | 0 | y | 200 | 165 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-10-03 17:26:41 | -0.1 | y | 255 | 322 | |||
| IIEES SC | NASN | Z | IP | I | 2019-10-03 17:26:48 | 0.4 | y | 311 | 39 | |||
| IIEES SC | KHMZ | N | IP | I | 2019-10-03 17:26:53 | 0.3 | y | 355 | 348 | |||
| IIEES SC | YZKH | N | IP | I | 2019-10-03 17:27:01 | 0.5 | y | 411 | 62 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-10-03 17:27:03 | 1.1 | y | 433 | 6 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-10-03 17:27:04 | 0.5 | y | 444 | 351 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-10-03 17:27:19 | 0.2 | y | 567 | 12 | |||
| IIEES SC | QABG | Z | IP | I | 2019-10-03 17:27:20 | 0.1 | y | 578 | 349 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-10-03 17:27:21 | -0.1 | y | 578 | 97 | |||
| IIEES SC | CHTH | N | IP | I | 2019-10-03 17:27:23 | 1.4 | y | 589 | 3 | |||
| IIEES SC | TABS | N | IP | I | 2019-10-03 17:27:34 | -0.2 | y | 689 | 61 | |||
| IIEES SC | GLO | Z | IP | I | 2019-10-03 17:27:31 | -5.9 | n | 4 | 711 | 24 | ||
| IIEES SC | SHRO | N | IP | I | 2019-10-03 17:27:45 | 0 | y | 767 | 39 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-10-03 17:28:04 | 1.1 | y | 922 | 32 | |||
| IIEES SC | RAYN | Z | IP | I | 2019-10-03 17:28:01 | -5.6 | n | 4 | 945 | 213 | ||
| IIEES SC | BJRD | Z | IP | I | 2019-10-03 17:28:14 | 1.4 | y | 1000 | 38 | |||
| IIEES SC | AHRM | 1727 | 2019-10-03 17:27:34 | y | 200 | 165 | ||||||
| IIEES SC | DAMV | Z | IVmB_BB | 2019-10-03 17:27:22 | y | 1 | 567 | 12 | ||||
