Magnitude
 :3.3
Date & Time (UTC) 2019-09-27 21:21:41.5
Date & Time (Local) 1398/7/6  00:51:41.5

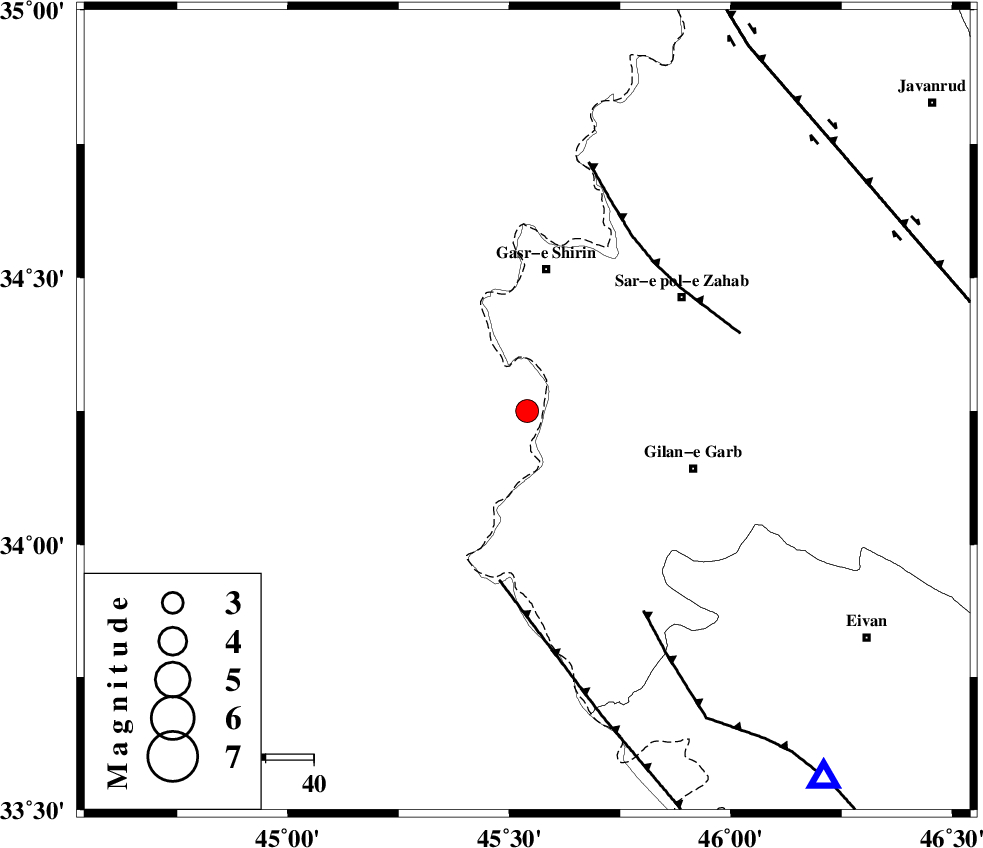

Location Lat:34.25 Lon: 45.54
Region Iraq, 30 km South of Qasr-E-Shirin
Nearest Cities
18 km South of Khosravi, Kermanshah Province
22 km South of Seyyed sohrab, Kermanshah Province
30 km South of Qasr-E-Shirin, Kermanshah Province
30 km West of Chub baghan, Kermanshah Province
34 km South West of Qareh belagh, Kermanshah Province
Depth 8 km
Agency
Faults within 150 km:
ZFF4 (Length: 128 km) , Distance to epicenter: 36 km
MFF8 (Length: 48 km) , Distance to epicenter: 41 km
MFF7 (Length: 99 km) , Distance to epicenter: 48 km
Number of Phases 9
RMS 0.3
Number of Stations 9
Error in Latitude >3 km
Error in Longitude 0 km
Error in Depth 3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
145850IIEES SCKGS1Z 1900012019-09-27 21:21:512019-09-28 10:13:00n
145851IIEES SCILBAZ 30012019-09-27 21:22:152019-09-28 10:13:00n
145852IIEES SCSNGEZ 30012019-09-27 21:22:372019-09-28 10:13:00n
145853IIEES SCSRSLZ 34012019-09-27 21:22:192019-09-28 10:13:00n
145854IIEES SCMAHBZ 21012019-09-27 21:22:252019-09-28 10:13:00n
145855IIEES SCGTMRZ 4112019-09-27 21:23:292019-09-28 10:13:00n
145856IIEES SCZNJKZ 1712019-09-27 21:23:392019-09-28 10:13:00n
145857IIEES SCKHMZZ 2612019-09-27 21:23:592019-09-28 10:13:00n
145858IIEES SCASAOZ 3612019-09-27 21:23:452019-09-28 10:13:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKGS1Z IP I2019-09-27 21:21:460y3310
IIEES SCILBAN IP I2019-09-27 21:21:57-0.1y88138
IIEES SCSNGEN IP I2019-09-27 21:22:120y18961
IIEES SCSRSLZ IP I2019-09-27 21:22:170.1y222358
IIEES SCMAHBZ IP I2019-09-27 21:22:240.1y2783
IIEES SCGTMRZ IP I2019-09-27 21:22:37-0.4y389121
IIEES SCZNJKZ IP I2019-09-27 21:22:38-0.5y38947
IIEES SCKHMZZ IP I2019-09-27 21:22:421y41198
IIEES SCASAON IP I2019-09-27 21:22:410.2y41185
