Magnitude |
:2.9 |
| Date & Time (UTC) | 2019-09-24 01:12:33.3 |
| Date & Time (Local) | 1398/7/2 04:42:33.3 |

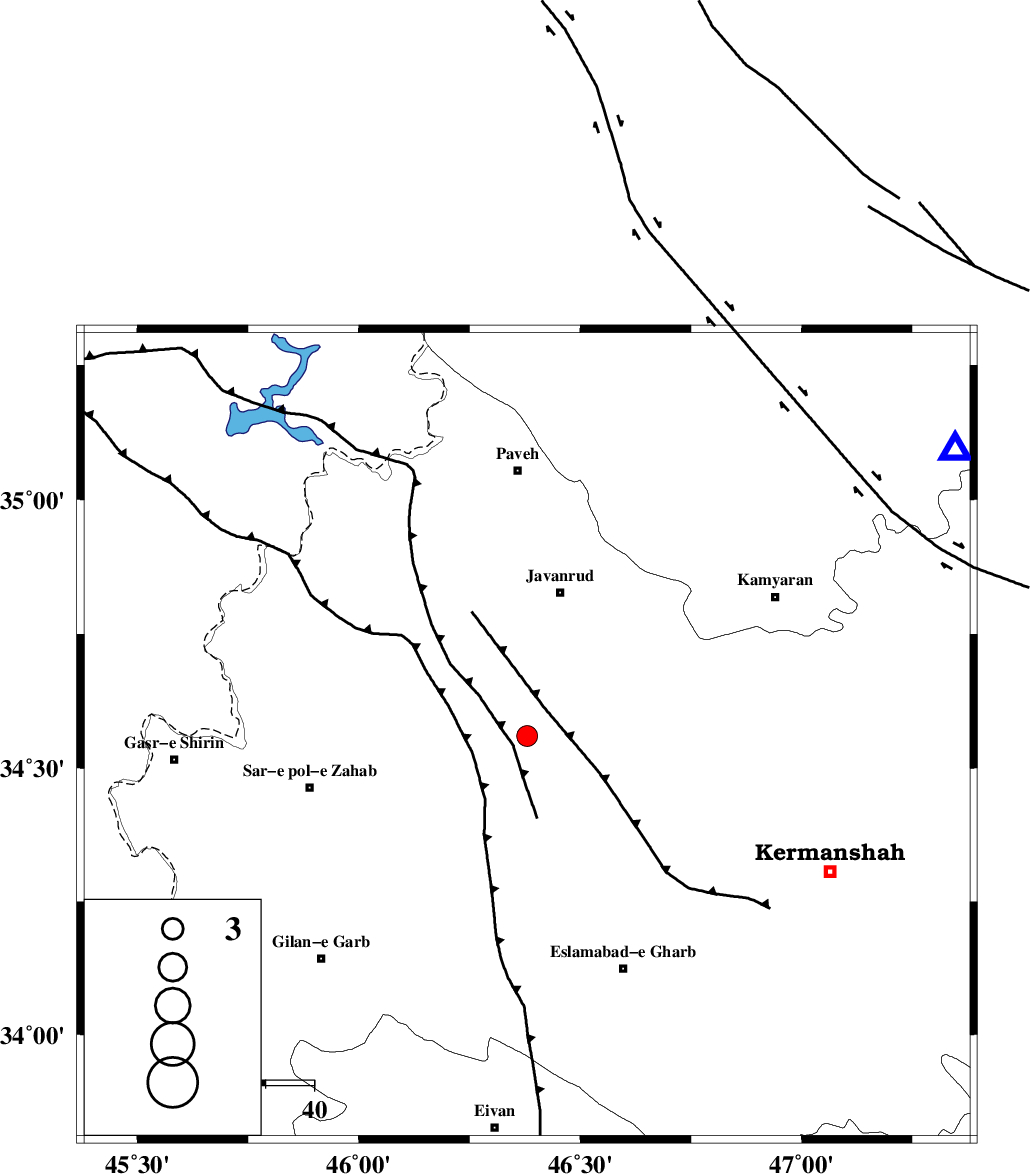

| Location | Lat:34.56 Lon: 46.38 |
| Region | Kermanshah Province, 30 km South of Javanrud |
Nearest Cities |
|
| 9 km North of Zavleh olia, Kermanshah Province | |
| 15 km South of Mirabad, Kermanshah Province | |
| 16 km South of Dolatabad, Kermanshah Province | |
| 19 km North West of Kuzran, Kermanshah Province | |
| 20 km North of Gahvareh, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 4 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 38 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 59 km | |
| Number of Phases | 11 |
| RMS | 0.8 |
| Number of Stations | 11 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 14 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 145575 | IIEES SC | ILBA | Z | 220 | 1 | 2019-09-24 01:13:09 | 2019-09-24 08:49:00 | n |
| 145576 | IIEES SC | SNGE | Z | 760 | 1 | 2019-09-24 01:13:03 | 2019-09-24 08:49:00 | n |
| 145577 | IIEES SC | MAHB | Z | 440 | 1 | 2019-09-24 01:13:47 | 2019-09-24 08:49:00 | n |
| 145578 | IIEES SC | ZNJK | Z | 22 | 1 | 2019-09-24 01:13:24 | 2019-09-24 08:49:00 | n |
| 145579 | IIEES SC | ASAO | Z | 88 | 1 | 2019-09-24 01:14:15 | 2019-09-24 08:49:00 | n |
| 145580 | IIEES SC | KHMZ | Z | 76 | 1 | 2019-09-24 01:14:23 | 2019-09-24 08:49:00 | n |
| 145581 | IIEES SC | GTMR | Z | 51 | 1 | 2019-09-24 01:14:15 | 2019-09-24 08:49:00 | n |
| 145582 | IIEES SC | AZR | Z | 160 | 1 | 2019-09-24 01:14:35 | 2019-09-24 08:49:00 | n |
| 145583 | IIEES SC | GHVR | Z | 51 | 1 | 2019-09-24 01:14:58 | 2019-09-24 08:49:00 | n |
| 145584 | IIEES SC | GRMI | Z | 9.8 | 1 | 2019-09-24 01:14:37 | 2019-09-24 08:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2019-09-24 01:12:51 | -0.1 | y | 100 | 189 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-09-24 01:12:50 | -1.3 | y | 111 | 56 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-09-24 01:13:12 | -0.4 | y | 255 | 346 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-09-24 01:13:20 | 0.1 | y | 311 | 42 | |||
| IIEES SC | QABG | Z | IP | I | 2019-09-24 01:13:22 | 1.6 | y | 322 | 66 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-09-24 01:13:24 | 1.7 | y | 333 | 90 | |||
| IIEES SC | KHMZ | N | IP | I | 2019-09-24 01:13:23 | -0.7 | y | 344 | 105 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-09-24 01:13:24 | 0.4 | y | 344 | 132 | |||
| IIEES SC | AZR | Z | IP | I | 2019-09-24 01:13:24 | 0.1 | y | 344 | 354 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-09-24 01:13:35 | -1.5 | y | 444 | 91 | |||
| IIEES SC | GRMI | N | IP | I | 2019-09-24 01:13:43 | 1.1 | y | 489 | 16 | |||
