Magnitude
 :3.1
Date & Time (UTC) 2019-09-22 19:04:16.1
Date & Time (Local) 1398/6/31  22:34:16.1

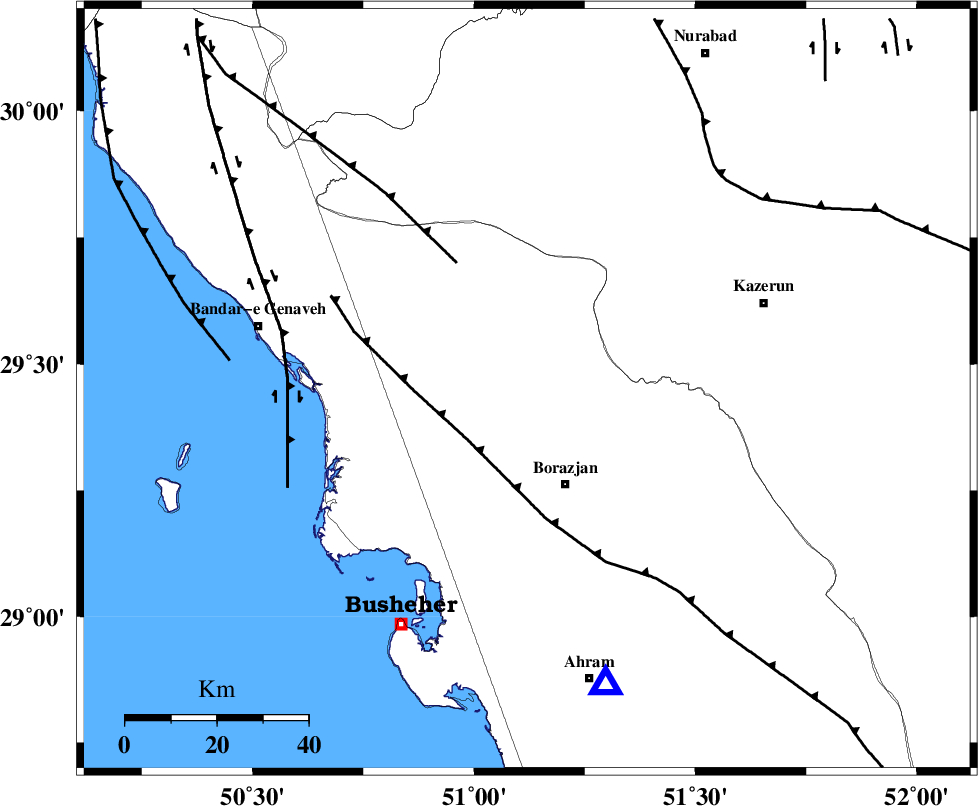

Location Lat:29.45 Lon: 51.12
Region Bushehr Province, 23 km North of Borazjan
Nearest Cities
8 km North of Saedabad, Bushehr Province
11 km North of Nazar aqa, Bushehr Province
13 km East of Dehkohneh, Bushehr Province
17 km North West of Dalki, Bushehr Province
19 km North of Ziyarat, Bushehr Province
Depth 14 km
Agency
Faults within 150 km:
ZFF3 (Length: 125 km) , Distance to epicenter: 7 km
BORAZJAN_F (Length: 168 km) , Distance to epicenter: 16 km
KAZERUN_F (Length: 96 km) , Distance to epicenter: 42 km
Number of Phases 8
RMS 0.4
Number of Stations 6
Error in Latitude >2 km
Error in Longitude 0 km
Error in Depth 4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
145569IIEES SCAHRMZ 15012019-09-22 19:04:472019-09-23 08:42:00n
145570IIEES SCKLNJZ 22012019-09-22 19:05:112019-09-23 08:42:00n
145571IIEES SCGHIRZ 7412019-09-22 19:05:292019-09-23 08:42:00n
145572IIEES SCGTMRZ 11012019-09-22 19:06:352019-09-23 08:42:00n
145573IIEES SCNASNZ 1412019-09-22 19:05:292019-09-23 08:42:00n
145574IIEES SCYZKHZ 1612019-09-22 19:06:512019-09-23 08:42:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCAHRMZ IP I2019-09-22 19:04:280.2y66165
IIEES SCKLNJZ IP I2019-09-22 19:04:450.4y17715
IIEES SCGHIRZ IP I2019-09-22 19:04:51-0.4y222125
IIEES SCGTMRZ IP I2019-09-22 19:05:11-0.2y389330
IIEES SCNASNN IP I2019-09-22 19:05:140.2y40024
IIEES SCYZKHZ IP I2019-09-22 19:05:220.7y46746
IIEES SCAHRM19 2019-09-22 19:04:59y66165
IIEES SCGHIR19 2019-09-22 19:05:14y222125
