Magnitude |
:3.5 |
| Date & Time (UTC) | 2019-09-20 15:50:26.3 |
| Date & Time (Local) | 1398/6/29 20:20:26.3 |

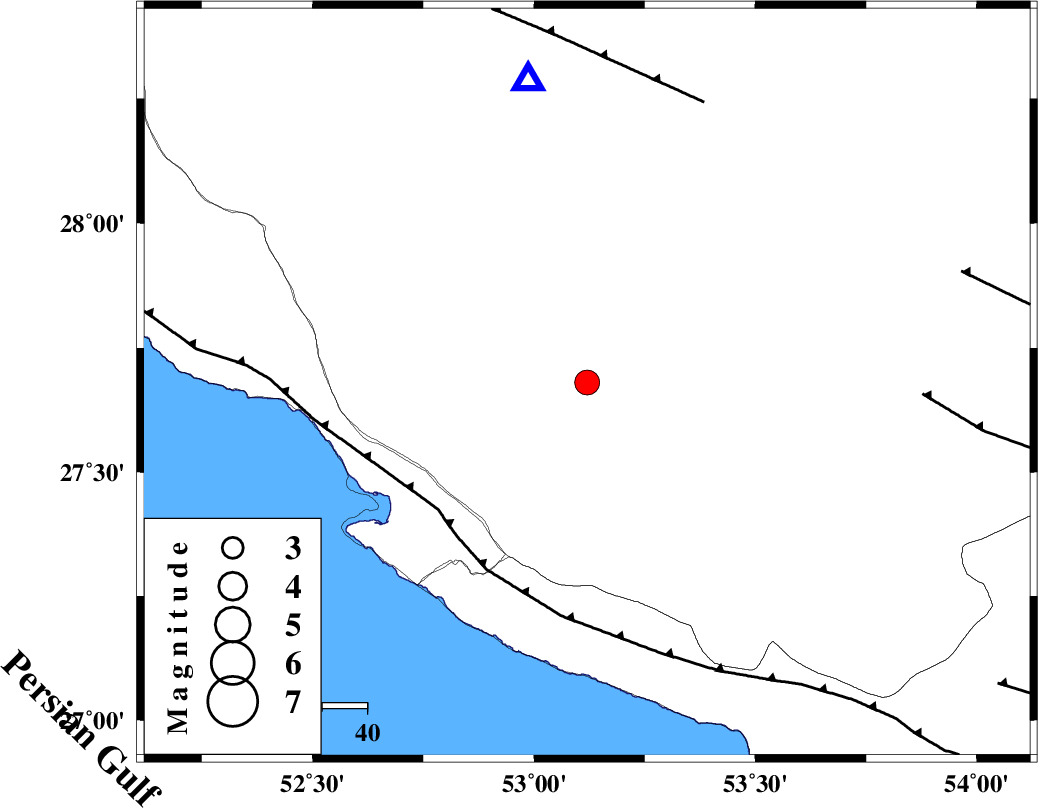

| Location | Lat:27.68 Lon: 53.12 |
| Region | Fars Province, 27 km North-East of Mehr |
Nearest Cities |
|
| 17 km North East of Alamarvdasht, Fars Province | |
| 27 km North East of Mehr, Fars Province | |
| 30 km North East of Khoozi, Fars Province | |
| 33 km North East of Ardavan-e olia, Fars Province | |
| 37 km South West of Khonj, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 44 km | |
| QIR_F (Length: 130 km) , Distance to epicenter: 68 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 75 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 145515 | IIEES SC | LMD1 | Z | 4700 | 1 | 2019-09-20 15:50:55 | 2019-09-21 10:27:00 | n |
| 145516 | IIEES SC | GHIR | Z | 430 | 1 | 2019-09-20 15:51:06 | 2019-09-21 10:27:00 | n |
| 145517 | IIEES SC | KLNJ | Z | 53 | 1 | 2019-09-20 15:52:32 | 2019-09-21 10:27:00 | n |
| 145518 | IIEES SC | UOSS | Z | 27 | 1 | 2019-09-20 15:52:28 | 2019-09-21 10:27:00 | n |
| 145519 | IIEES SC | KRBR | Z | 140 | 1 | 2019-09-20 15:51:31 | 2019-09-21 10:27:00 | n |
| 145520 | IIEES SC | YZKH | Z | 30 | 1 | 2019-09-20 15:52:01 | 2019-09-21 10:27:00 | n |
| 145521 | IIEES SC | NASN | Z | 12 | 1 | 2019-09-20 15:52:10 | 2019-09-21 10:27:00 | n |
| 145522 | IIEES SC | NASN | Z | 8.1 | 0.52 | 2019-09-20 15:51:47 | 2019-09-21 10:27:00 | n |
| 145523 | IIEES SC | GTMR | Z | 21 | 1 | 2019-09-20 15:53:25 | 2019-09-21 10:27:00 | n |
| 145524 | IIEES SC | GTMR | Z | 6.1 | 0.78 | 2019-09-20 15:52:23 | 2019-09-21 10:27:00 | n |
| 145525 | IIEES SC | TABS | Z | 17 | 1 | 2019-09-20 15:54:39 | 2019-09-21 10:27:00 | n |
| 145526 | IIEES SC | TABS | Z | 9.1 | 0.92 | 2019-09-20 15:52:10 | 2019-09-21 10:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | Z | IP | I | 2019-09-20 15:50:33 | 0.1 | y | 33 | 174 | |||
| IIEES SC | GHIR | Z | IP | I | 2019-09-20 15:50:37 | -0.7 | y | 66 | 349 | |||
| IIEES SC | KLNJ | N | IP | I | 2019-09-20 15:51:24 | 0.5 | y | 400 | 338 | |||
| IIEES SC | UOSS | Z | IP | I | 2019-09-20 15:51:27 | -0.3 | y | 433 | 135 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-09-20 15:51:29 | 0.6 | y | 433 | 54 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-09-20 15:51:42 | 0.9 | y | 544 | 15 | |||
| IIEES SC | NASN | Z | IP | I | 2019-09-20 15:51:45 | 0.2 | y | 567 | 357 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-09-20 15:51:54 | -0.9 | y | 656 | 324 | |||
| IIEES SC | TABS | Z | IP | I | 2019-09-20 15:52:09 | 0 | y | 767 | 30 | |||
| IIEES SC | GHIR | 1550 | 2019-09-20 15:50:59 | y | 66 | 349 | ||||||
| IIEES SC | UOSS | 1553 | 2019-09-20 15:53:05 | y | 433 | 135 | ||||||
