Magnitude |
:3.7 |
| Date & Time (UTC) | 2019-08-28 22:45:02.3 |
| Date & Time (Local) | 1398/6/7 03:15:02.3 |

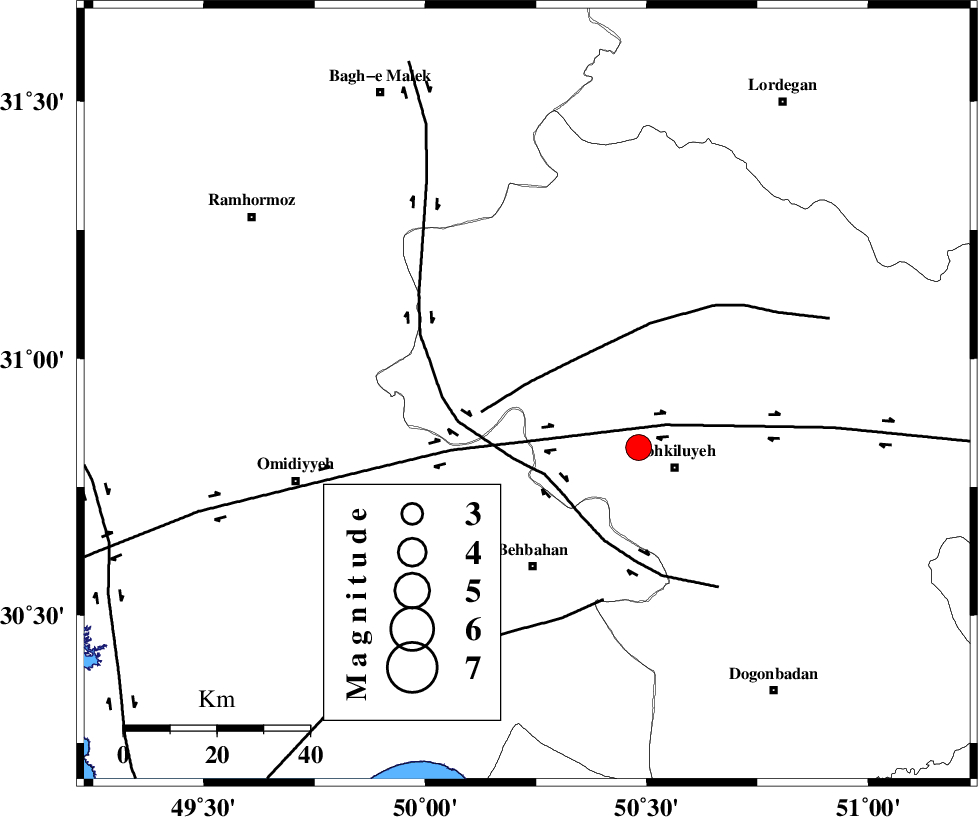

| Location | Lat:30.93 Lon: 50.23 |
| Region | Kohkiluieh va boyerahmad Province, 37 km North of Behbahan |
Nearest Cities |
|
| 19 km West of Lendeh, Kohkiluieh va boyerahmad Province | |
| 25 km North of Dodange-ye bozorg, Khoozestan Province | |
| 34 km North East of Jolaki, Khoozestan Province | |
| 34 km North of Mansuriyeh, Khoozestan Province | |
| 35 km South West of Qale-ye raiesi, Kohkiluieh va boyerahmad Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF4 (Length: 62 km) , Distance to epicenter: 11 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 39 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 48 km | |
| Number of Phases | 34 |
| RMS | 0.6 |
| Number of Stations | 19 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 145157 | IIEES SC | KLNJ | Z | 1600 | 1 | 2019-08-28 22:45:48 | 2019-09-01 09:26:00 | n |
| 145158 | IIEES SC | GTMR | Z | 1900 | 1 | 2019-08-28 22:46:08 | 2019-09-01 09:26:00 | n |
| 145159 | IIEES SC | AHRM | Z | 99 | 1 | 2019-08-28 22:46:29 | 2019-09-01 09:26:00 | n |
| 145160 | IIEES SC | KHMZ | Z | 230 | 1 | 2019-08-28 22:46:36 | 2019-09-01 09:26:00 | n |
| 145161 | IIEES SC | NASN | Z | 120 | 1 | 2019-08-28 22:46:11 | 2019-09-01 09:26:00 | n |
| 145162 | IIEES SC | ASAO | Z | 130 | 1 | 2019-08-28 22:47:10 | 2019-09-01 09:26:00 | n |
| 145163 | IIEES SC | GHVR | Z | 180 | 1 | 2019-08-28 22:46:02 | 2019-09-01 09:26:00 | n |
| 145164 | IIEES SC | YZKH | Z | 110 | 1 | 2019-08-28 22:46:06 | 2019-09-01 09:26:00 | n |
| 145165 | IIEES SC | DAMV | Z | 68 | 1 | 2019-08-28 22:46:35 | 2019-09-01 09:26:00 | n |
| 145166 | IIEES SC | THKV | Z | 41 | 1 | 2019-08-28 22:48:03 | 2019-09-01 09:26:00 | n |
| 145167 | IIEES SC | CHTH | Z | 33 | 1 | 2019-08-28 22:46:40 | 2019-09-01 09:26:00 | n |
| 145168 | IIEES SC | KRBR | Z | 31 | 1 | 2019-08-28 22:46:48 | 2019-09-01 09:26:00 | n |
| 145169 | IIEES SC | GLO | Z | 59 | 1 | 2019-08-28 22:46:44 | 2019-09-01 09:26:00 | n |
| 145170 | IIEES SC | TABS | Z | 37 | 1 | 2019-08-28 22:46:49 | 2019-09-01 09:26:00 | n |
| 145171 | IIEES SC | SRSL | Z | 36 | 1 | 2019-08-28 22:48:00 | 2019-09-01 09:26:00 | n |
| 145172 | IIEES SC | SHRO | Z | 41 | 1 | 2019-08-28 22:46:53 | 2019-09-01 09:26:00 | n |
| 145173 | IIEES SC | BJRD | Z | 16 | 1 | 2019-08-28 22:47:15 | 2019-09-01 09:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | IP | I | 2019-08-28 22:45:24 | -0.1 | y | 133 | 86 | |||
| IIEES SC | GTMR | N | IS | I | 2019-08-28 22:45:59 | 0.9 | y | 200 | 328 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-08-28 22:45:33 | -1.2 | y | 200 | 328 | |||
| IIEES SC | AHRM | Z | IP | I | 2019-08-28 22:45:41 | 0.1 | y | 255 | 156 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-08-28 22:45:48 | 0 | y | 311 | 355 | |||
| IIEES SC | NASN | Z | IP | I | 2019-08-28 22:45:50 | 0.6 | y | 322 | 50 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-08-28 22:46:00 | 0.3 | y | 400 | 357 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-08-28 22:46:00 | 0 | y | 400 | 14 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-08-28 22:46:05 | 0.1 | y | 444 | 69 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-08-28 22:46:17 | -0.5 | y | 544 | 17 | |||
| IIEES SC | THKV | Z | IP | I | 2019-08-28 22:46:19 | 0.1 | y | 556 | 6 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-08-28 22:46:18 | -0.7 | y | 556 | 9 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-08-28 22:46:29 | 0.3 | y | 633 | 100 | |||
| IIEES SC | GLO | Z | IP | I | 2019-08-28 22:46:38 | 0.9 | y | 700 | 28 | |||
| IIEES SC | TABS | Z | IP | I | 2019-08-28 22:46:39 | 0.1 | y | 711 | 65 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-08-28 22:46:40 | -1.3 | y | 733 | 323 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-08-28 22:46:46 | -0.1 | y | 778 | 44 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-08-28 22:47:04 | -0.2 | y | 922 | 36 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-08-28 22:47:14 | 0.5 | y | 1000 | 41 | |||
| IIEES SC | KLNJ | 2245 | 2019-08-28 22:45:48 | y | 133 | 86 | ||||||
| IIEES SC | GTMR | 2246 | 2019-08-28 22:46:04 | y | 200 | 328 | ||||||
| IIEES SC | AHRM | 2245 | 2019-08-28 22:45:57 | y | 255 | 156 | ||||||
| IIEES SC | KHMZ | 2246 | 2019-08-28 22:46:42 | y | 311 | 355 | ||||||
| IIEES SC | NASN | 2246 | 2019-08-28 22:46:43 | y | 322 | 50 | ||||||
| IIEES SC | ASAO | 2247 | 2019-08-28 22:47:10 | y | 400 | 357 | ||||||
| IIEES SC | GHVR | 2247 | 2019-08-28 22:47:14 | y | 400 | 14 | ||||||
| IIEES SC | YZKH | 2246 | 2019-08-28 22:46:13 | y | 444 | 69 | ||||||
| IIEES SC | DAMV | 2246 | 2019-08-28 22:46:39 | y | 544 | 17 | ||||||
| IIEES SC | THKV | 2248 | 2019-08-28 22:48:07 | y | 556 | 6 | ||||||
| IIEES SC | CHTH | 2247 | 2019-08-28 22:47:46 | y | 556 | 9 | ||||||
| IIEES SC | KRBR | 2247 | 2019-08-28 22:47:42 | y | 633 | 100 | ||||||
| IIEES SC | GLO | 2246 | 2019-08-28 22:46:55 | y | 700 | 28 | ||||||
| IIEES SC | TABS | 2248 | 2019-08-28 22:48:45 | y | 711 | 65 | ||||||
| IIEES SC | SHRO | 2248 | 2019-08-28 22:48:47 | y | 778 | 44 | ||||||
