Magnitude |
:3.4 |
| Date & Time (UTC) | 2019-08-23 07:31:47.5 |
| Date & Time (Local) | 1398/6/1 12:01:47.5 |

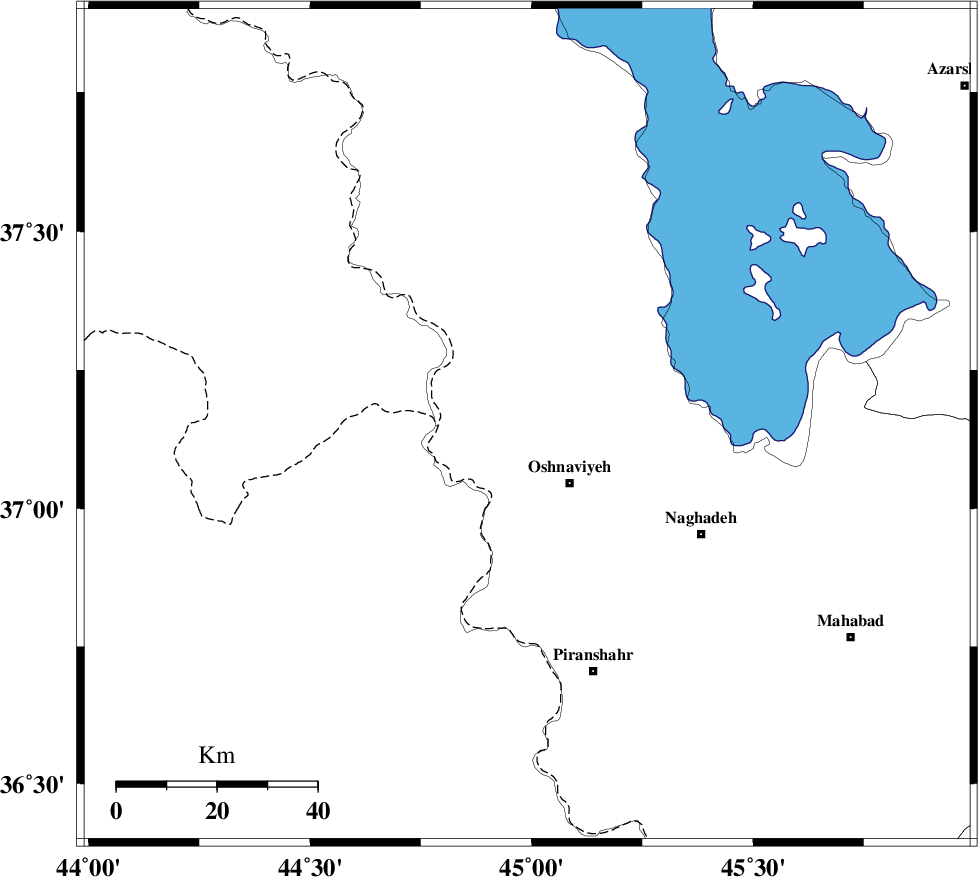

| Location | Lat:37.15 Lon: 44.99 |
| Region | Azarbaijan Gharbi Province, 14 km North of Oshnaviyeh |
Nearest Cities |
|
| 10 km West of Aghbelagh, Azarbaijan Gharbi Province | |
| 12 km of Ziveh, Azarbaijan Gharbi Province | |
| 14 km North of Oshnaviyeh, Azarbaijan Gharbi Province | |
| 22 km North West of Nalus, Azarbaijan Gharbi Province | |
| 28 km South East of Razhan, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 51 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 101 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 123 km | |
| Number of Phases | 15 |
| RMS | 0.7 |
| Number of Stations | 8 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144925 | IIEES SC | MAHB | Z | 1300 | 1 | 2019-08-23 07:32:13 | 2019-08-24 08:44:00 | n |
| 144926 | IIEES SC | AZR | Z | 2500 | 1 | 2019-08-23 07:32:28 | 2019-08-24 08:44:00 | n |
| 144927 | IIEES SC | SRSL | Z | 530 | 1 | 2019-08-23 07:32:26 | 2019-08-24 08:44:00 | n |
| 144928 | IIEES SC | KGS1 | Z | 270 | 1 | 2019-08-23 07:33:19 | 2019-08-24 08:44:00 | n |
| 144929 | IIEES SC | GRMI | Z | 54 | 1 | 2019-08-23 07:33:22 | 2019-08-24 08:44:00 | n |
| 144930 | IIEES SC | ZNJK | Z | 42 | 1 | 2019-08-23 07:32:45 | 2019-08-24 08:44:00 | n |
| 144931 | IIEES SC | ILBA | Z | 48 | 1 | 2019-08-23 07:34:06 | 2019-08-24 08:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MAHB | Z | IP | I | 2019-08-23 07:32:00 | -0.8 | y | 77 | 124 | |||
| IIEES SC | AZR | Z | IP | I | 2019-08-23 07:32:05 | -0.4 | y | 100 | 56 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-08-23 07:32:05 | -0.7 | y | 111 | 159 | |||
| IIEES SC | MAKU | Z | IP | I | 2019-08-23 07:32:25 | -0.3 | y | 244 | 354 | |||
| IIEES SC | KGS1 | Z | IP | I | 2019-08-23 07:32:32 | 0.6 | y | 300 | 170 | |||
| IIEES SC | GRMI | N | IP | I | 2019-08-23 07:32:35 | 0.7 | y | 311 | 54 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-08-23 07:32:38 | 1.8 | y | 333 | 99 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-08-23 07:32:46 | 0.3 | y | 411 | 164 | |||
| IIEES SC | MAHB | 732 | 2019-08-23 07:32:14 | y | 77 | 124 | ||||||
| IIEES SC | AZR | 732 | 2019-08-23 07:32:27 | y | 100 | 56 | ||||||
| IIEES SC | SRSL | 732 | 2019-08-23 07:32:25 | y | 111 | 159 | ||||||
| IIEES SC | KGS1 | 733 | 2019-08-23 07:33:19 | y | 300 | 170 | ||||||
| IIEES SC | GRMI | 733 | 2019-08-23 07:33:26 | y | 311 | 54 | ||||||
| IIEES SC | ZNJK | 733 | 2019-08-23 07:33:53 | y | 333 | 99 | ||||||
| IIEES SC | ILBA | 733 | 2019-08-23 07:33:58 | y | 411 | 164 | ||||||
