Magnitude |
:3.7 |
| Date & Time (UTC) | 2019-08-12 04:52:13.8 |
| Date & Time (Local) | 1398/5/21 09:22:13.8 |

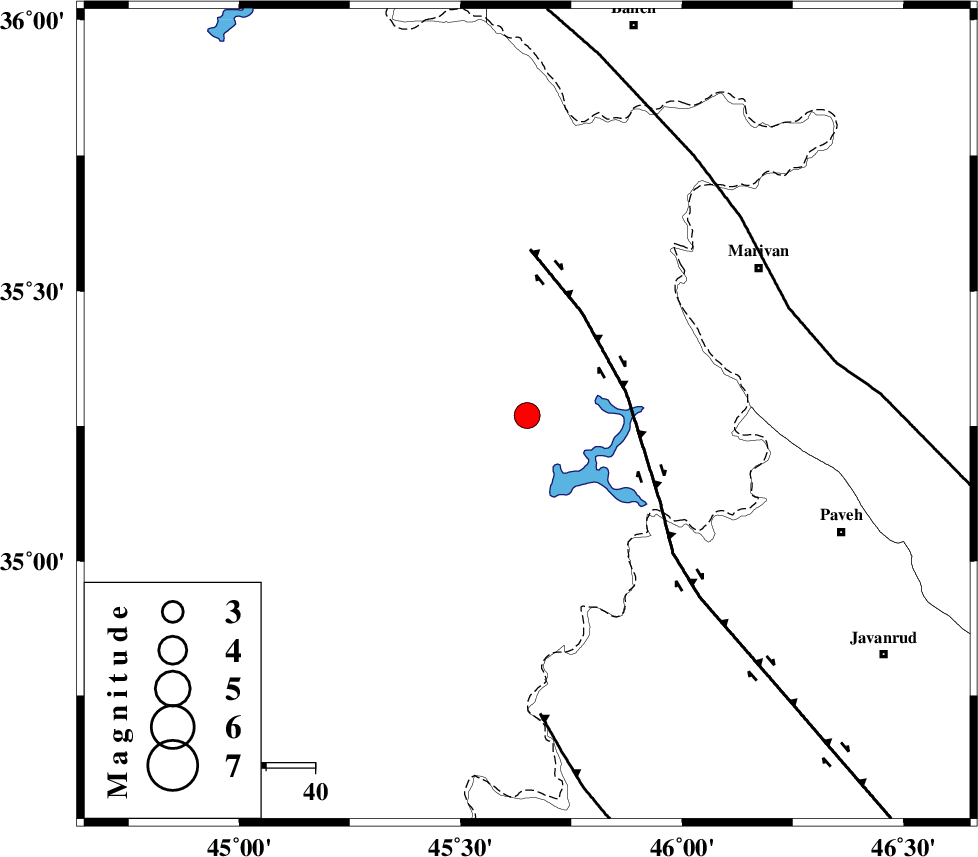

| Location | Lat:35.27 Lon: 45.65 |
| Region | Iraq, 38 km South-East of Sulaymaniyah |
Nearest Cities |
|
| 35 km North West of Markhil, Kermanshah Province | |
| 38 km South East of Sulaymaniyah, Iraq Province | |
| 47 km South West of Ney, Kurdistan Province | |
| 52 km North West of Nosud, Kermanshah Province | |
| 53 km South West of Bardeh rasheh, Kurdistan Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 21 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 58 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 62 km | |
| Number of Phases | 21 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144721 | IIEES SC | KGS1 | Z | 1700 | 1 | 2019-08-12 04:52:57 | 2019-08-12 12:11:00 | n |
| 144722 | IIEES SC | SRSL | Z | 1500 | 1 | 2019-08-12 04:52:48 | 2019-08-12 12:11:00 | n |
| 144723 | IIEES SC | MAHB | Z | 1200 | 1 | 2019-08-12 04:53:10 | 2019-08-12 12:11:00 | n |
| 144724 | IIEES SC | ILBA | Z | 1200 | 1 | 2019-08-12 04:53:14 | 2019-08-12 12:11:00 | n |
| 144725 | IIEES SC | AZR | Z | 1400 | 1 | 2019-08-12 04:53:38 | 2019-08-12 12:11:00 | n |
| 144726 | IIEES SC | ZNJK | Z | 130 | 1 | 2019-08-12 04:53:54 | 2019-08-12 12:11:00 | n |
| 144727 | IIEES SC | ASAO | Z | 170 | 1 | 2019-08-12 04:54:24 | 2019-08-12 12:11:00 | n |
| 144728 | IIEES SC | KHMZ | Z | 130 | 1 | 2019-08-12 04:54:05 | 2019-08-12 12:11:00 | n |
| 144729 | IIEES SC | GRMI | Z | 45 | 1 | 2019-08-12 04:54:33 | 2019-08-12 12:11:00 | n |
| 144730 | IIEES SC | GTMR | Z | 170 | 1 | 2019-08-12 04:54:25 | 2019-08-12 12:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KGS1 | Z | IP | I | 2019-08-12 04:52:28 | 0.1 | y | 88 | 184 | |||
| IIEES SC | SRSL | N | IS | I | 2019-08-12 04:52:46 | 0 | y | 111 | 349 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-08-12 04:52:32 | -0.1 | y | 111 | 349 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-08-12 04:52:41 | -0.2 | y | 166 | 2 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-08-12 04:52:44 | -0.5 | y | 189 | 164 | |||
| IIEES SC | AZR | Z | IP | I | 2019-08-12 04:52:57 | 1.2 | y | 266 | 6 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-08-12 04:53:01 | -0.1 | y | 311 | 60 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-08-12 04:53:13 | 0.4 | y | 411 | 101 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-08-12 04:53:16 | 0.2 | y | 433 | 113 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-08-12 04:53:17 | 0.1 | y | 444 | 27 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-08-12 04:53:16 | -1.1 | y | 444 | 134 | |||
| IIEES SC | KGS1 | 452 | 2019-08-12 04:52:56 | y | 88 | 184 | ||||||
| IIEES SC | SRSL | 452 | 2019-08-12 04:52:49 | y | 111 | 349 | ||||||
| IIEES SC | MAHB | 453 | 2019-08-12 04:53:09 | y | 166 | 2 | ||||||
| IIEES SC | ILBA | 453 | 2019-08-12 04:53:19 | y | 189 | 164 | ||||||
| IIEES SC | AZR | 453 | 2019-08-12 04:53:42 | y | 266 | 6 | ||||||
| IIEES SC | ZNJK | 453 | 2019-08-12 04:53:47 | y | 311 | 60 | ||||||
| IIEES SC | ASAO | 454 | 2019-08-12 04:54:23 | y | 411 | 101 | ||||||
| IIEES SC | KHMZ | 454 | 2019-08-12 04:54:18 | y | 433 | 113 | ||||||
| IIEES SC | GRMI | 454 | 2019-08-12 04:54:28 | y | 444 | 27 | ||||||
| IIEES SC | GTMR | 454 | 2019-08-12 04:54:07 | y | 444 | 134 | ||||||
