Magnitude |
:3.1 |
| Date & Time (UTC) | 2019-07-13 10:30:14.4 |
| Date & Time (Local) | 1398/4/22 15:00:14.4 |

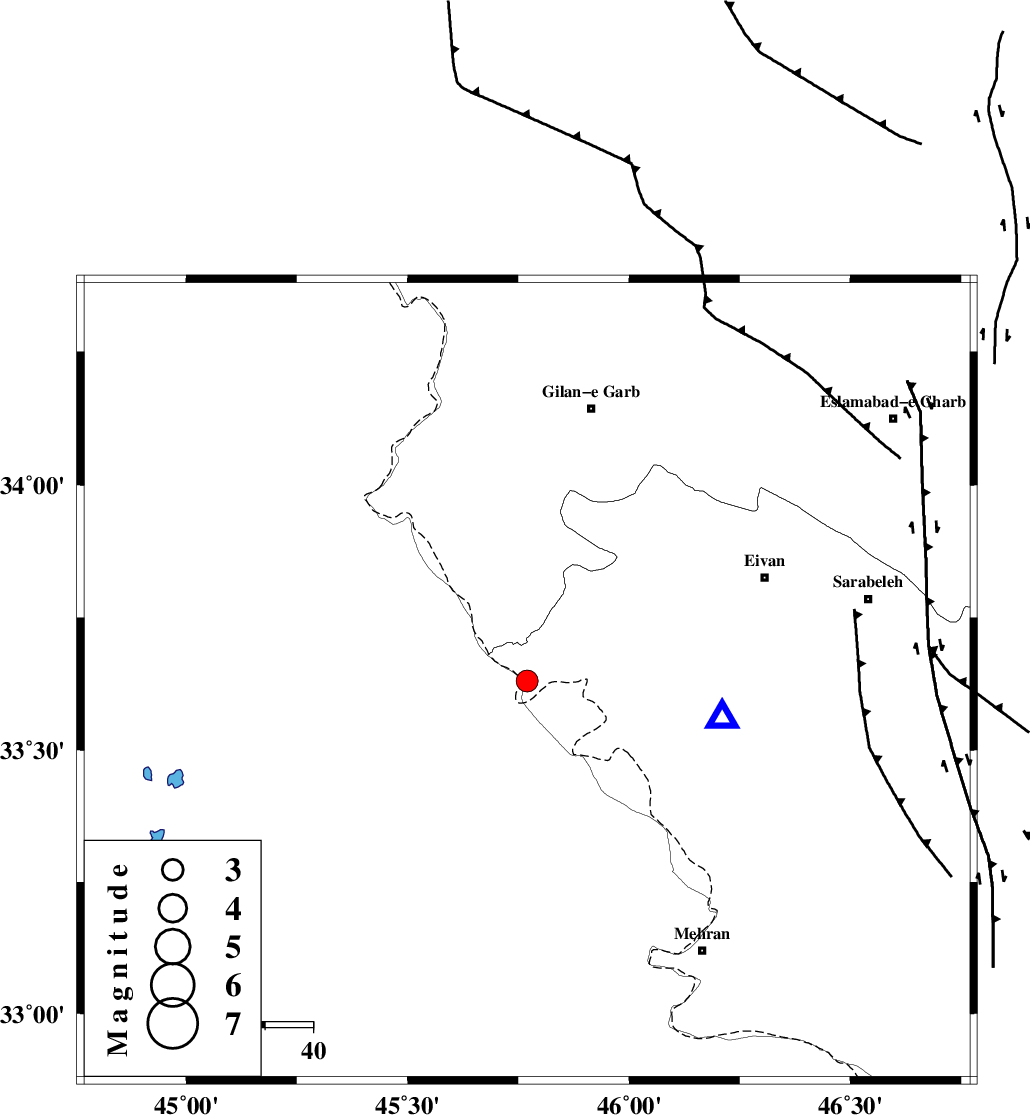

| Location | Lat:33.63 Lon: 45.77 |
| Region | Ilam Province, 59 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 30 km South East of Sumar, Kermanshah Province | |
| 42 km North West of Salehabad, Ilam Province | |
| 47 km West of Chavar, Ilam Province | |
| 48 km South West of Nian, Kermanshah Province | |
| 49 km South West of Teran, Ilam Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 8 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 17 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 69 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >7 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144168 | IIEES SC | ILBA | Z | 470 | 1 | 2019-07-13 10:30:28 | 2019-07-14 08:46:00 | n |
| 144169 | IIEES SC | KGS1 | Z | 600 | 1 | 2019-07-13 10:30:58 | 2019-07-14 08:46:00 | n |
| 144170 | IIEES SC | SNGE | Z | 190 | 1 | 2019-07-13 10:31:18 | 2019-07-14 08:46:00 | n |
| 144171 | IIEES SC | SRSL | Z | 73 | 1 | 2019-07-13 10:31:43 | 2019-07-14 08:46:00 | n |
| 144172 | IIEES SC | GTMR | Z | 27 | 1 | 2019-07-13 10:32:00 | 2019-07-14 08:46:00 | n |
| 144173 | IIEES SC | KHMZ | Z | 55 | 1 | 2019-07-13 10:33:30 | 2019-07-14 08:46:00 | n |
| 144174 | IIEES SC | ASAO | Z | 15 | 1 | 2019-07-13 10:31:59 | 2019-07-14 08:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | IP | I | 2019-07-13 10:30:21 | 0.1 | y | 44 | 91 | |||
| IIEES SC | KGS1 | Z | IP | I | 2019-07-13 10:30:31 | -0.2 | y | 100 | 350 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-07-13 10:30:49 | -0.2 | y | 222 | 42 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-07-13 10:30:58 | 0.4 | y | 289 | 354 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-07-13 10:31:04 | -0.2 | y | 333 | 112 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-07-13 10:31:10 | -0.2 | y | 389 | 88 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-07-13 10:31:14 | 1.1 | y | 400 | 75 | |||
| IIEES SC | ILBA | 1030 | 2019-07-13 10:30:45 | y | 44 | 91 | ||||||
| IIEES SC | KGS1 | 1030 | 2019-07-13 10:30:58 | y | 100 | 350 | ||||||
| IIEES SC | SNGE | 1031 | 2019-07-13 10:31:19 | y | 222 | 42 | ||||||
| IIEES SC | SRSL | 1031 | 2019-07-13 10:31:38 | y | 289 | 354 | ||||||
| IIEES SC | GTMR | 1031 | 2019-07-13 10:31:56 | y | 333 | 112 | ||||||
| IIEES SC | KHMZ | 1033 | 2019-07-13 10:33:35 | y | 389 | 88 | ||||||
| IIEES SC | ASAO | 1032 | 2019-07-13 10:32:23 | y | 400 | 75 | ||||||
