Magnitude |
:3.9 |
| Date & Time (UTC) | 2019-07-01 07:38:41.8 |
| Date & Time (Local) | 1398/4/10 12:08:41.8 |

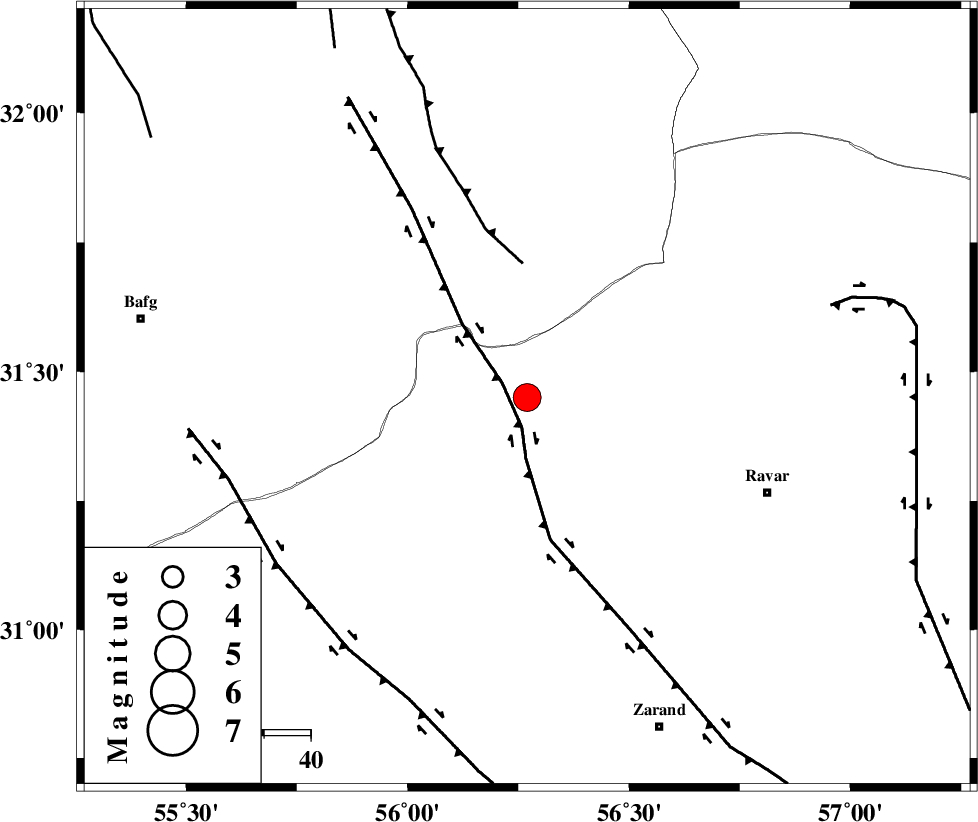

| Location | Lat:31.45 Lon: 56.27 |
| Region | Kerman Province, 55 km North-West of Ravar |
Nearest Cities |
|
| 4 km North of Kuhbanan, Kerman Province | |
| 10 km North of Jor, Kerman Province | |
| 25 km South of Asfih, Yazd Province | |
| 27 km East of Basab, Yazd Province | |
| 36 km North West of Toghroljerd, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 6 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 29 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 65 km | |
| Number of Phases | 21 |
| RMS | 0.8 |
| Number of Stations | 10 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 14 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143586 | IIEES SC | KRBR | Z | 480 | 1 | 2019-07-01 07:39:36 | 2019-07-02 09:57:00 | n |
| 143587 | IIEES SC | YZKH | Z | 680 | 1 | 2019-07-01 07:39:36 | 2019-07-02 09:57:00 | n |
| 143588 | IIEES SC | TABS | Z | 220 | 1 | 2019-07-01 07:40:09 | 2019-07-02 09:57:00 | n |
| 143589 | IIEES SC | BSRN | Z | 260 | 1 | 2019-07-01 07:40:11 | 2019-07-02 09:57:00 | n |
| 143590 | IIEES SC | SHRT | Z | 43 | 1 | 2019-07-01 07:41:01 | 2019-07-02 09:57:00 | n |
| 143591 | IIEES SC | BNDS | Z | 24 | 1 | 2019-07-01 07:40:00 | 2019-07-02 09:57:00 | n |
| 143592 | IIEES SC | GHIR | Z | 9.2 | 1 | 2019-07-01 07:41:07 | 2019-07-02 09:57:00 | n |
| 143593 | IIEES SC | SHRO | Z | 28 | 1 | 2019-07-01 07:41:21 | 2019-07-02 09:57:00 | n |
| 143594 | IIEES SC | SBZV | Z | 22 | 1 | 2019-07-01 07:41:36 | 2019-07-02 09:57:00 | n |
| 143595 | IIEES SC | SBZV | Z | 13 | 0.62 | 2019-07-01 07:40:00 | 2019-07-02 09:57:00 | n |
| 143596 | IIEES SC | AKL | Z | 9.1 | 1 | 2019-07-01 07:40:10 | 2019-07-02 09:57:00 | n |
| 143597 | IIEES SC | AKL | Z | 4.7 | 0.54 | 2019-07-01 07:40:10 | 2019-07-02 09:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | IP | I | 2019-07-01 07:39:10 | 0.6 | y | 166 | 164 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-01 07:39:12 | -0.5 | y | 189 | 303 | |||
| IIEES SC | TABS | Z | IP | I | 2019-07-01 07:39:20 | -0.5 | y | 255 | 18 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-07-01 07:39:23 | -0.7 | y | 278 | 78 | |||
| IIEES SC | SHRT | Z | IP | I | 2019-07-01 07:39:46 | 0.9 | y | 444 | 57 | |||
| IIEES SC | BNDS | Z | IP | I | 2019-07-01 07:39:43 | -2 | y | 444 | 181 | |||
| IIEES SC | GHIR | Z | IP | I | 2019-07-01 07:39:48 | 0.4 | y | 478 | 222 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-07-01 07:39:52 | -0.1 | y | 500 | 357 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-07-01 07:39:59 | 0.4 | y | 556 | 13 | |||
| IIEES SC | AKL | Z | IP | I | 2019-07-01 07:40:06 | 0.5 | y | 611 | 22 | |||
| IIEES SC | KRBR | 739 | 2019-07-01 07:39:37 | y | 166 | 164 | ||||||
| IIEES SC | YZKH | 739 | 2019-07-01 07:39:31 | y | 189 | 303 | ||||||
| IIEES SC | TABS | 740 | 2019-07-01 07:40:07 | y | 255 | 18 | ||||||
| IIEES SC | BSRN | 740 | 2019-07-01 07:40:03 | y | 278 | 78 | ||||||
| IIEES SC | SHRT | 741 | 2019-07-01 07:41:04 | y | 444 | 57 | ||||||
| IIEES SC | BNDS | 741 | 2019-07-01 07:41:11 | y | 444 | 181 | ||||||
| IIEES SC | GHIR | 741 | 2019-07-01 07:41:05 | y | 478 | 222 | ||||||
| IIEES SC | SHRO | 741 | 2019-07-01 07:41:01 | y | 500 | 357 | ||||||
| IIEES SC | SBZV | 741 | 2019-07-01 07:41:40 | y | 556 | 13 | ||||||
| IIEES SC | AKL | 741 | 2019-07-01 07:41:11 | y | 611 | 22 | ||||||
| IIEES SC | AKL | Z | IVmB_BB | 2019-07-01 07:40:08 | y | 1 | 611 | 22 | ||||
