Magnitude |
:3.5 |
| Date & Time (UTC) | 2019-06-22 18:07:11.1 |
| Date & Time (Local) | 1398/4/1 22:37:11.1 |
| Location | Lat:34.72 Lon: 46.53 |
| Region | Kermanshah Province, 14 km South of Javanrud |
Nearest Cities |
|
| 7 km North of Dolatabad, Kermanshah Province | |
| 9 km of Sarukhan, Kermanshah Province | |
| 9 km West of Borhanaddin, Kermanshah Province | |
| 11 km West of Ravansar, Kermanshah Province | |
| 14 km South of Javanrud, Kermanshah Province | |
| Depth | 10 km |
| Agency | |

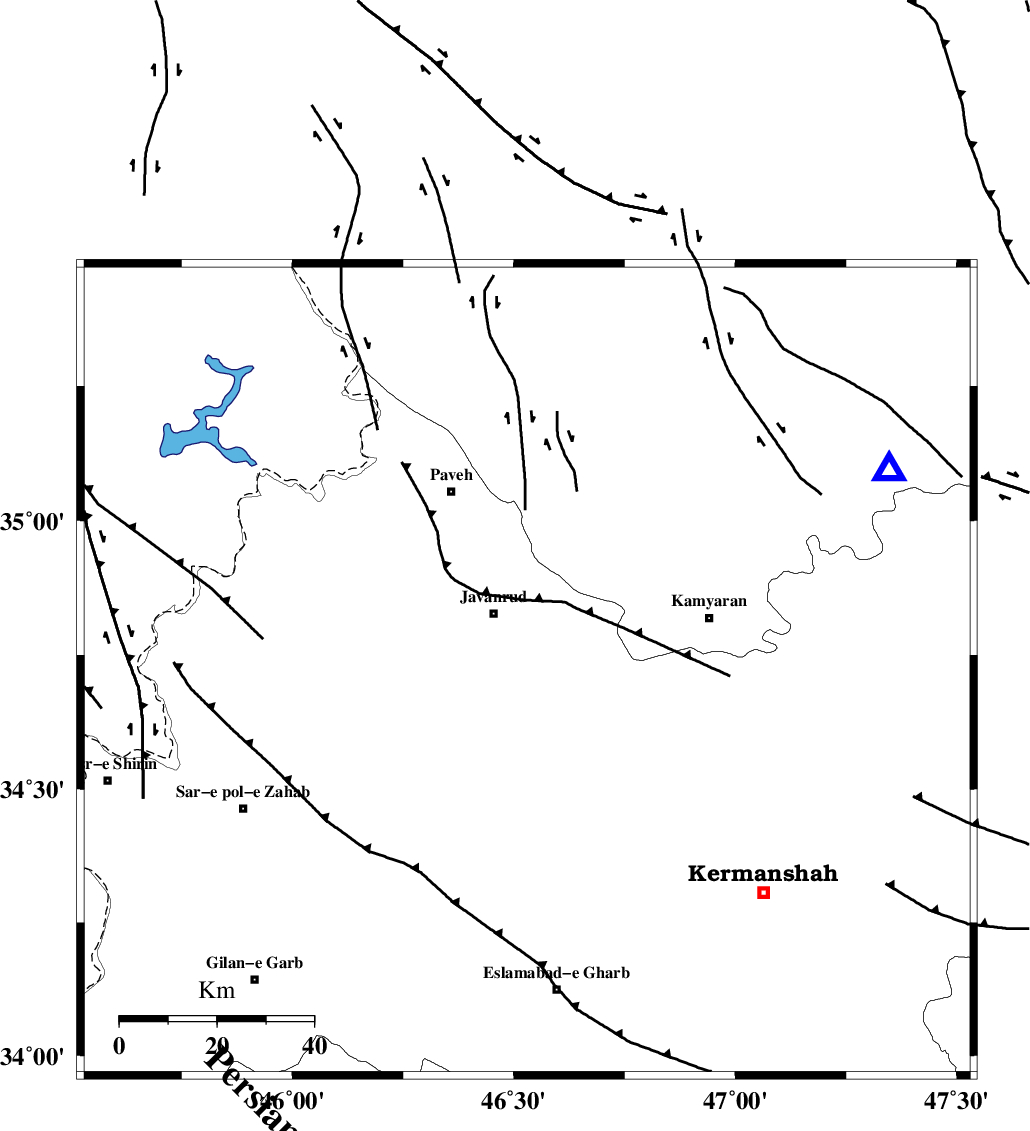

Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 19 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 36 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 43 km | |
| Number of Phases | 17 |
| RMS | 0.8 |
| Number of Stations | 9 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143316 | IIEES SC | ILBA | Z | 330 | 1 | 2019-06-22 18:08:00 | 2019-06-23 07:39:00 | n |
| 143317 | IIEES SC | SRSL | Z | 550 | 1 | 2019-06-22 18:07:44 | 2019-06-23 07:39:00 | n |
| 143318 | IIEES SC | MAHB | Z | 430 | 1 | 2019-06-22 18:08:24 | 2019-06-23 07:39:00 | n |
| 143319 | IIEES SC | ZNJK | Z | 46 | 1 | 2019-06-22 18:08:42 | 2019-06-23 07:39:00 | n |
| 143320 | IIEES SC | ASAO | Z | 100 | 1 | 2019-06-22 18:08:52 | 2019-06-23 07:39:00 | n |
| 143321 | IIEES SC | AZR | Z | 360 | 1 | 2019-06-22 18:09:05 | 2019-06-23 07:39:00 | n |
| 143322 | IIEES SC | KHMZ | Z | 97 | 1 | 2019-06-22 18:09:02 | 2019-06-23 07:39:00 | n |
| 143323 | IIEES SC | GTMR | Z | 110 | 1 | 2019-06-22 18:08:56 | 2019-06-23 07:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | N | IS | I | 2019-06-22 18:07:49 | 1.2 | y | 122 | 194 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-06-22 18:07:31 | -0.9 | y | 122 | 194 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-06-22 18:07:42 | -0.7 | y | 189 | 329 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-06-22 18:07:49 | 0.7 | y | 233 | 342 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-06-22 18:07:56 | 0.9 | y | 289 | 42 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-06-22 18:07:58 | -0.7 | y | 322 | 93 | |||
| IIEES SC | AZR | Z | IP | I | 2019-06-22 18:08:01 | 0.3 | y | 333 | 351 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-06-22 18:08:00 | -0.8 | y | 333 | 109 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-06-22 18:08:01 | -0.8 | y | 344 | 136 | |||
| IIEES SC | ILBA | 18 | 2019-06-22 18:08:04 | y | 122 | 194 | ||||||
| IIEES SC | SRSL | 18 | 2019-06-22 18:08:17 | y | 189 | 329 | ||||||
| IIEES SC | MAHB | 18 | 2019-06-22 18:08:23 | y | 233 | 342 | ||||||
| IIEES SC | ZNJK | 18 | 2019-06-22 18:08:43 | y | 289 | 42 | ||||||
| IIEES SC | ASAO | 18 | 2019-06-22 18:08:50 | y | 322 | 93 | ||||||
| IIEES SC | AZR | 18 | 2019-06-22 18:08:58 | y | 333 | 351 | ||||||
| IIEES SC | KHMZ | 18 | 2019-06-22 18:08:59 | y | 333 | 109 | ||||||
| IIEES SC | GTMR | 18 | 2019-06-22 18:08:58 | y | 344 | 136 | ||||||
