Magnitude |
:3.7 |
| Date & Time (UTC) | 2019-01-18 19:31:43.4 |
| Date & Time (Local) | 1397/10/28 23:01:43.4 |

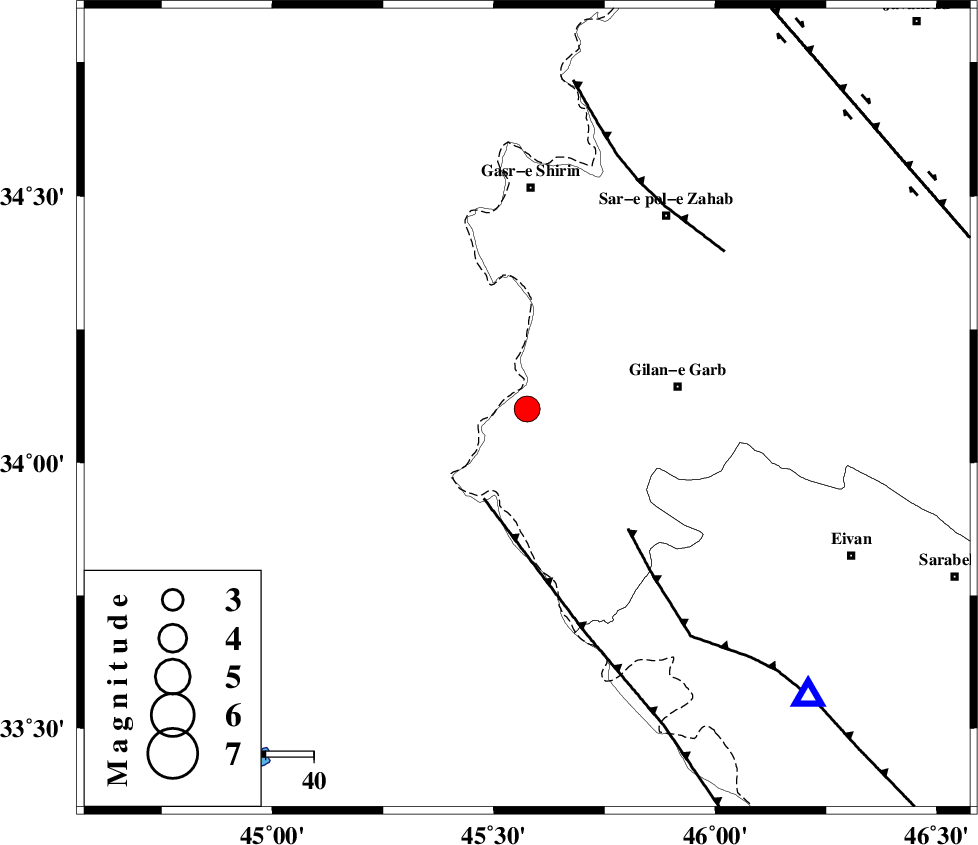

| Location | Lat:34.101 Lon: 45.575 |
| Region | Kermanshah Province, 32 km -West of Gilan-E-Gharb |
Nearest Cities |
|
| 25 km North of Sumar, Kermanshah Province | |
| 32 km West of Gilan-E-Gharb, Kermanshah Province | |
| 35 km South East of Khosravi, Kermanshah Province | |
| 35 km South West of Chub baghan, Kermanshah Province | |
| 36 km North West of Nian, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 21 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 33 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 51 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 140404 | IIEES | ILBA | E | 2044.7 | 0.6 | 2019-01-18 19:32:18 | 2019-01-19 12:03:00 | n |
| 140405 | IIEES | SNGE | N | 650.2 | 0.51 | 2019-01-18 19:32:42 | 2019-01-19 12:03:00 | n |
| 140406 | IIEES | SNGE | E | 483.8 | 0.7 | 2019-01-18 19:32:46 | 2019-01-19 12:03:00 | n |
| 140407 | IIEES | SRSL | N | 810.6 | 0.49 | 2019-01-18 19:32:52 | 2019-01-19 12:03:00 | n |
| 140408 | IIEES | SRSL | E | 518.2 | 0.63 | 2019-01-18 19:32:58 | 2019-01-19 12:03:00 | n |
| 140409 | IIEES | GHVR | E | 32.3 | 0.53 | 2019-01-18 19:33:55 | 2019-01-19 12:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2019-01-18 19:31:56 | -0.17 | y | 78.8 | 132 | |||
| IIEES | SNGE | Z | Pg | E | 2019-01-18 19:32:15 | -0.18 | y | 196 | 55 | |||
| IIEES | SNGE | N | Sg | E | 2019-01-18 19:32:39 | 0.33 | y | 196 | 55 | |||
| IIEES | SRSL | Z | Pn | E | 2019-01-18 19:32:20 | 0.37 | y | 235 | 357 | |||
| IIEES | SRSL | N | Sg | E | 2019-01-18 19:32:49 | -0.39 | y | 235 | 357 | |||
| IIEES | ZNJK | Z | Pn | E | 2019-01-18 19:32:41 | 0.02 | y | 401 | 44 | |||
| IIEES | KHMZ | Z | Pn | E | 2019-01-18 19:32:41 | -0.4 | y | 408 | 94 | |||
| IIEES | ASAO | Z | Pn | E | 2019-01-18 19:32:43 | 0.53 | y | 413 | 82 | |||
| IIEES | THKV | Z | Pn | E | 2019-01-18 19:32:55 | -0.68 | y | 524 | 66 | |||
| IIEES | GHVR | Z | Pn | E | 2019-01-18 19:32:56 | 0.44 | y | 524 | 84 | |||
| IIEES | CHTH | Z | Pn | E | 2019-01-18 19:32:58 | -0.12 | y | 545 | 67 | |||
| IIEES | GRMI | Z | Pn | E | 2019-01-18 19:33:01 | 0.04 | y | 562 | 21 | |||
| IIEES | MAKU | Z | Pn | E | 2019-01-18 19:33:04 | 0.46 | y | 588 | 352 | |||
| IIEES | DAMV | Z | Pn | E | 2019-01-18 19:33:06 | -0.4 | y | 609 | 72 | |||
| IIEES | NASN | Z | Pn | E | 2019-01-18 19:33:16 | 0.17 | y | 688 | 100 | |||
