Magnitude |
:2.6 |
| Date & Time (UTC) | 2019-01-17 12:32:26.9 |
| Date & Time (Local) | 1397/10/27 16:02:26.9 |

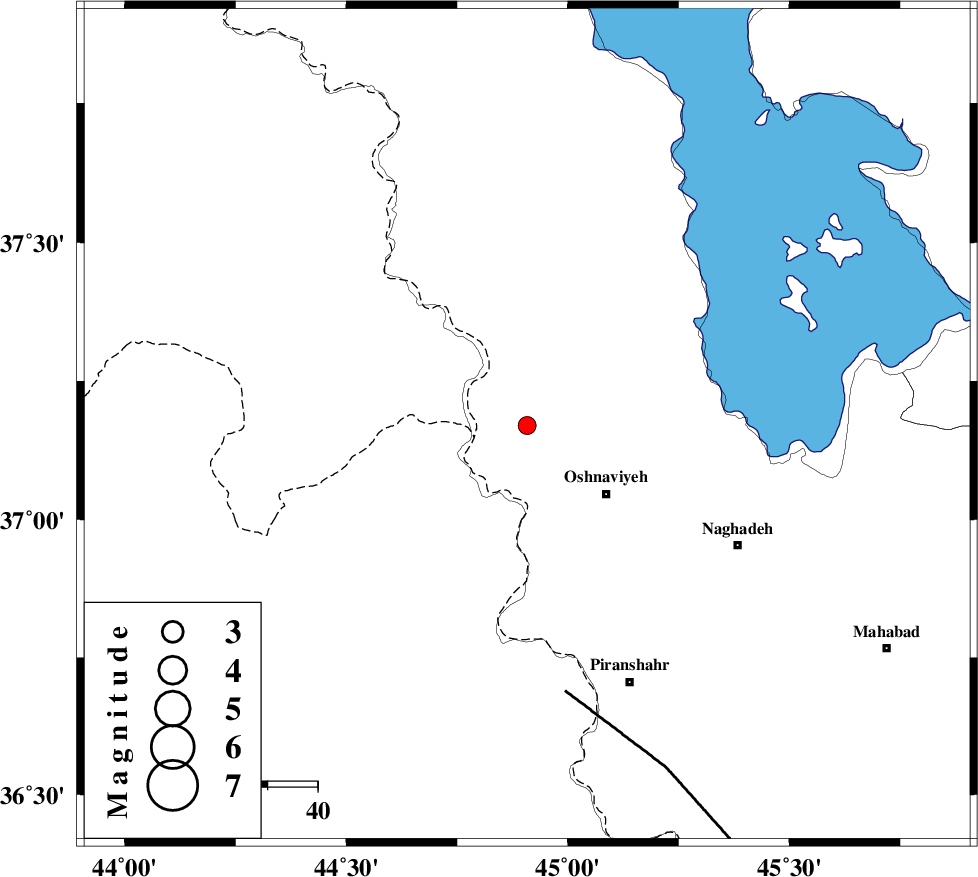

| Location | Lat:37.17 Lon: 44.908 |
| Region | Azarbaijan Gharbi Province, 21 km North-West of Oshnaviyeh |
Nearest Cities |
|
| 8 km of Ziveh, Azarbaijan Gharbi Province | |
| 17 km North West of Aghbelagh, Azarbaijan Gharbi Province | |
| 21 km North West of Oshnaviyeh, Azarbaijan Gharbi Province | |
| 24 km South of Razhan, Azarbaijan Gharbi Province | |
| 28 km South of Silvaneh, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 54 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 98 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 122 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 140390 | IIEES | SRSL | N | 142.9 | 0.64 | 2019-01-17 12:33:08 | 2019-01-19 09:12:00 | n |
| 140391 | IIEES | SRSL | E | 149.2 | 0.52 | 2019-01-17 12:33:09 | 2019-01-19 09:12:00 | n |
| 140392 | IIEES | SNGE | E | 21.2 | 0.56 | 2019-01-17 12:34:09 | 2019-01-19 09:12:00 | n |
| 140393 | IIEES | GRMI | E | 13.5 | 0.43 | 2019-01-17 12:34:08 | 2019-01-19 09:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SRSL | Z | Pg | E | 2019-01-17 12:32:46 | -0.26 | y | 116 | 156 | |||
| IIEES | SRSL | N | Sg | E | 2019-01-17 12:33:01 | 0.2 | y | 116 | 156 | |||
| IIEES | MAKU | Z | Pn | E | 2019-01-17 12:33:05 | 0.1 | y | 243 | 355 | |||
| IIEES | SNGE | Z | Pn | E | 2019-01-17 12:33:14 | -0.04 | y | 318 | 136 | |||
| IIEES | GRMI | Z | Pn | E | 2019-01-17 12:33:14 | 0.01 | y | 319 | 54 | |||
| IIEES | GRMI | N | Sg | E | 2019-01-17 12:33:56 | -0.01 | y | 319 | 54 | |||
