Magnitude |
:2.6 |
| Date & Time (UTC) | 2017-02-21 10:02:00.5 |
| Date & Time (Local) | 1395/12/3 13:32:00.5 |

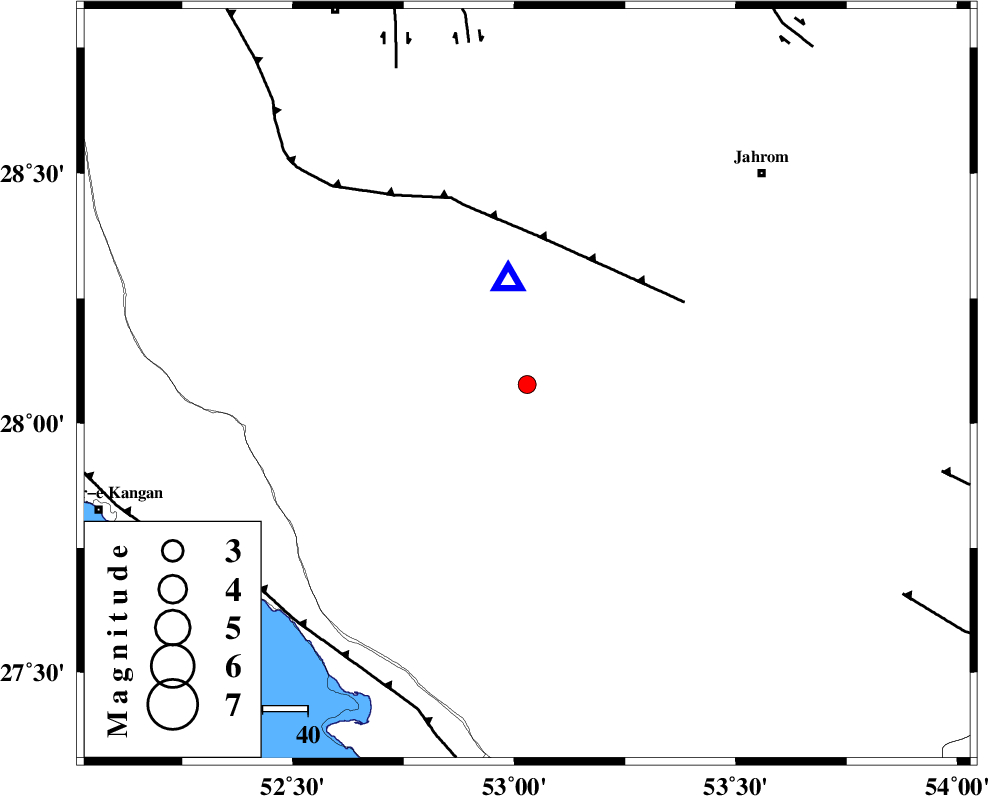

| Location | Lat:28.078 Lon: 53.029 |
| Region | Fars Province, 43 km South of Qir va Karzin |
Nearest Cities |
|
| 15 km West of Seyfabad, Fars Province | |
| 31 km North East of Garmesht, Fars Province | |
| 38 km South of Shahrak-e jonubi, Fars Province | |
| 43 km South of Qir va Karzin, Fars Province | |
| 43 km South West of Mobarakabad, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 33 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 74 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 76 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >8.6 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113521 | IIEES | GHIR | N | 3041.8 | 0.44 | 2017-02-21 10:02:09 | 2017-02-22 07:31:00 | n |
| 113522 | IIEES | GHIR | E | 1855.1 | 0.34 | 2017-02-21 10:02:11 | 2017-02-22 07:31:00 | n |
| 113523 | IIEES | AHRM | N | 62.5 | 0.61 | 2017-02-21 10:02:59 | 2017-02-22 07:31:00 | n |
| 113524 | IIEES | AHRM | E | 40.5 | 0.31 | 2017-02-21 10:03:11 | 2017-02-22 07:31:00 | n |
| 113525 | IIEES | BNDS | E | 10.9 | 0.62 | 2017-02-21 10:03:41 | 2017-02-22 07:31:00 | n |
| 113526 | IIEES | BNDS | N | 12.1 | 0.71 | 2017-02-21 10:03:50 | 2017-02-22 07:31:00 | n |
| 113527 | IIEES | KRBR | E | 9 | 0.68 | 2017-02-21 10:03:58 | 2017-02-22 07:31:00 | n |
| 113528 | IIEES | KRBR | N | 7.8 | 0.39 | 2017-02-21 10:04:11 | 2017-02-22 07:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2017-02-21 10:02:00 | -5.28 | n | 4 | 23.4 | 350 | ||
| IIEES | AHRM | Z | Pg | E | 2017-02-21 10:02:32 | 0.26 | y | 191 | 298 | |||
| IIEES | AHRM | N | Sg | E | 2017-02-21 10:02:54 | -0.24 | y | 191 | 298 | |||
| IIEES | BNDS | Z | Pn | E | 2017-02-21 10:02:47 | 0.05 | y | 319 | 103 | |||
| IIEES | BNDS | N | Sg | E | 2017-02-21 10:03:29 | -0.15 | y | 319 | 103 | |||
| IIEES | KRBR | Z | Pn | E | 2017-02-21 10:03:00 | 0.11 | y | 420 | 59 | |||
| IIEES | SNGE | Z | Pn | E | 2017-02-21 10:04:05 | -0.06 | y | 946 | 327 | |||
