Magnitude |
:3.5 |
| Date & Time (UTC) | 2017-02-16 19:45:45.2 |
| Date & Time (Local) | 1395/11/28 23:15:45.2 |

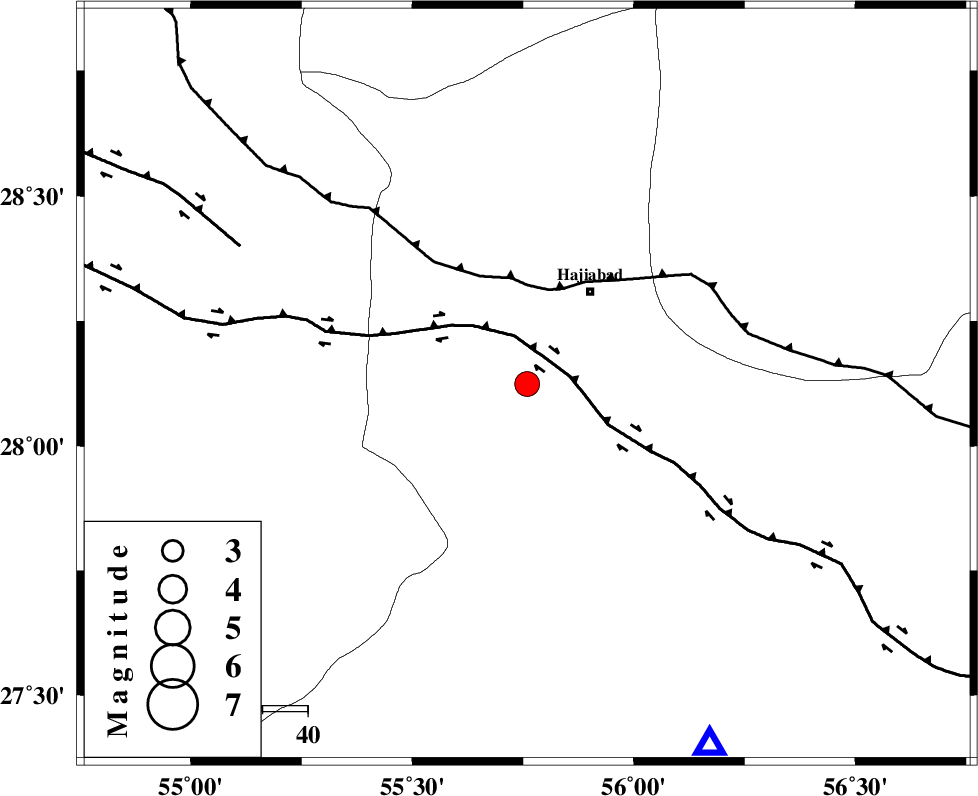

| Location | Lat:28.124 Lon: 55.759 |
| Region | Hormozgan Province, 25 km South-West of Hajiabad |
Nearest Cities |
|
| 25 km South West of Hajiabad, Hormozgan Province | |
| 44 km North East of Darz, Fars Province | |
| 48 km North West of Fareqan, Hormozgan Province | |
| 56 km North West of Fin, Hormozgan Province | |
| 57 km East of Fadami, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 7 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 22 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 70 km | |
| Number of Phases | 17 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113382 | IIEES | BNDS | N | 1778.3 | 0.4 | 2017-02-16 19:46:22 | 2017-02-18 06:41:00 | n |
| 113383 | IIEES | BNDS | E | 1859 | 0.46 | 2017-02-16 19:46:22 | 2017-02-18 06:41:00 | n |
| 113384 | IIEES | KRBR | N | 637.8 | 0.86 | 2017-02-16 19:46:55 | 2017-02-18 06:41:00 | n |
| 113385 | IIEES | KRBR | E | 297.2 | 0.54 | 2017-02-16 19:46:57 | 2017-02-18 06:41:00 | n |
| 113386 | IIEES | GHIR | N | 179.2 | 0.72 | 2017-02-16 19:47:20 | 2017-02-18 06:41:00 | n |
| 113387 | IIEES | GHIR | E | 114.3 | 0.58 | 2017-02-16 19:47:37 | 2017-02-18 06:41:00 | n |
| 113388 | IIEES | BSRN | N | 17 | 0.72 | 2017-02-16 19:48:25 | 2017-02-18 06:41:00 | n |
| 113389 | IIEES | NASN | E | 12.4 | 0.4 | 2017-02-16 19:48:10 | 2017-02-18 06:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-02-16 19:46:00 | 0.03 | y | 90 | 153 | |||
| IIEES | KRBR | Z | Pn | E | 2017-02-16 19:46:21 | -0.13 | y | 228 | 25 | |||
| IIEES | KRBR | E | Sg | E | 2017-02-16 19:46:50 | 0.37 | y | 228 | 25 | |||
| IIEES | GHIR | Z | Pn | E | 2017-02-16 19:46:26 | 0.14 | y | 273 | 274 | |||
| IIEES | AHRM | Z | Pn | E | 2017-02-16 19:46:48 | 0.52 | y | 444 | 282 | |||
| IIEES | YZKH | Z | Pn | E | 2017-02-16 19:46:53 | 0.44 | y | 486 | 347 | |||
| IIEES | BSRN | Z | Pn | E | 2017-02-16 19:46:59 | 0.23 | y | 535 | 37 | |||
| IIEES | NASN | Z | Pn | E | 2017-02-16 19:47:06 | -0.27 | y | 591 | 332 | |||
| IIEES | TABS | Z | Pn | E | 2017-02-16 19:47:10 | -0.23 | y | 626 | 12 | |||
| IIEES | SHRT | Z | Pn | E | 2017-02-16 19:47:25 | -0.53 | y | 750 | 34 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-02-16 19:47:36 | -0.38 | y | 833 | 320 | |||
| IIEES | SHRO | Z | Pn | E | 2017-02-16 19:47:40 | -1.07 | y | 875 | 2 | |||
| IIEES | ASAO | Z | Pn | E | 2017-02-16 19:47:43 | -1.03 | y | 897 | 324 | |||
| IIEES | DAMV | Z | Pn | E | 2017-02-16 19:47:45 | 0.1 | y | 906 | 338 | |||
| IIEES | CHTH | Z | Pn | E | 2017-02-16 19:47:53 | -0.26 | y | 968 | 334 | |||
| IIEES | ILBA | Z | Pn | E | 2017-02-16 19:48:05 | -3.82 | n | 4 | 1098 | 306 | ||
| IIEES | SNGE | Z | Pn | E | 2017-02-16 19:48:08 | -2.45 | n | 4 | 1110 | 316 | ||
