Magnitude |
:3 |
| Date & Time (UTC) | 2016-12-03 15:28:17.9 |
| Date & Time (Local) | 1395/9/13 18:58:17.9 |

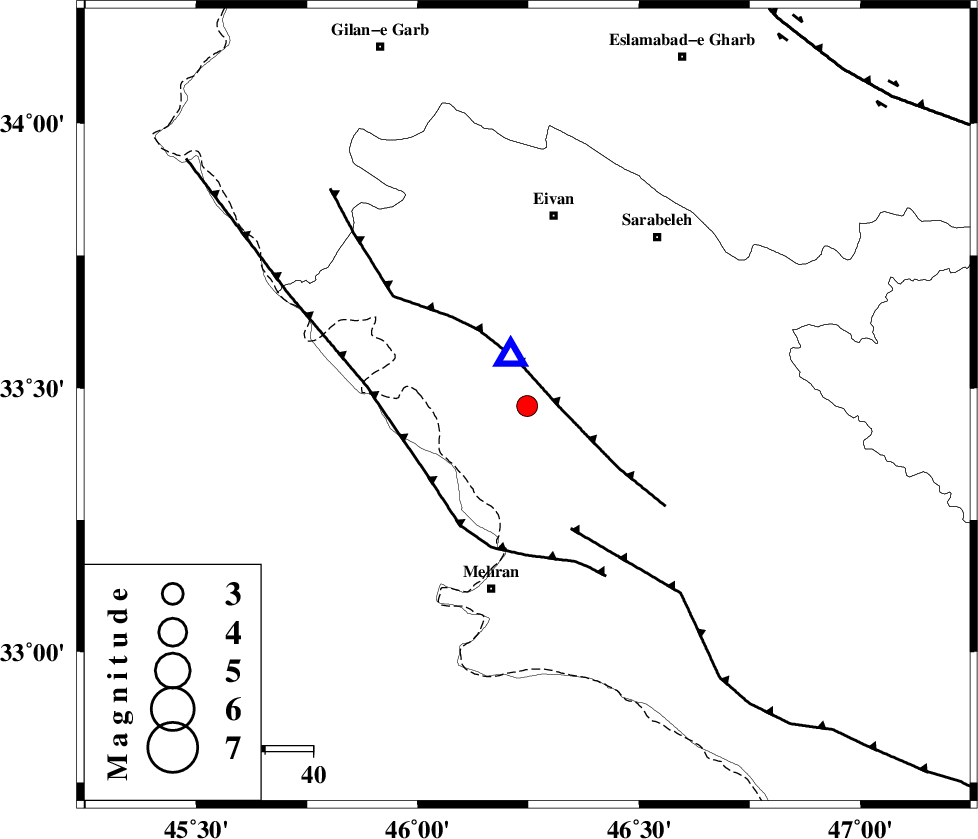

| Location | Lat:33.466 Lon: 46.247 |
| Region | Ilam Province, 26 km South-West of Ilam |
Nearest Cities |
|
| 6 km of Salehabad, Ilam Province | |
| 21 km North West of Mehr, Ilam Province | |
| 23 km North West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 25 km South of Chavar, Ilam Province | |
| 26 km South West of Ilam, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF7 (Length: 99 km) , Distance to epicenter: 7 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 26 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 27 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 111182 | IIEES | SNGE | E | 163 | 0.7 | 2016-12-03 15:29:22 | 2016-12-04 09:15:00 | n |
| 111183 | IIEES | SNGE | N | 206.5 | 0.53 | 2016-12-03 15:29:22 | 2016-12-04 09:15:00 | n |
| 111184 | IIEES | ASAO | N | 14.9 | 0.53 | 2016-12-03 15:30:17 | 2016-12-04 09:15:00 | n |
| 111185 | IIEES | GHVR | N | 12.1 | 0.69 | 2016-12-03 15:30:57 | 2016-12-04 09:15:00 | n |
| 111186 | IIEES | GHVR | E | 9.4 | 0.46 | 2016-12-03 15:31:00 | 2016-12-04 09:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2016-12-03 15:28:51 | -0.19 | y | 207 | 29 | |||
| IIEES | SNGE | N | Sg | E | 2016-12-03 15:29:16 | 0.09 | y | 207 | 29 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-12-03 15:29:08 | -0.08 | y | 346 | 84 | |||
| IIEES | ASAO | Z | Pn | E | 2016-12-03 15:29:11 | 0.24 | y | 369 | 70 | |||
| IIEES | ASAO | N | Sg | E | 2016-12-03 15:30:01 | -0.05 | y | 369 | 70 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-12-03 15:29:18 | 0.14 | y | 419 | 31 | |||
| IIEES | GHVR | Z | Pn | E | 2016-12-03 15:29:24 | 0.19 | y | 475 | 75 | |||
| IIEES | CHTH | Z | Pn | E | 2016-12-03 15:29:30 | -0.29 | y | 523 | 57 | |||
| IIEES | DAMV | Z | Pn | E | 2016-12-03 15:29:37 | -0.08 | y | 578 | 64 | |||
